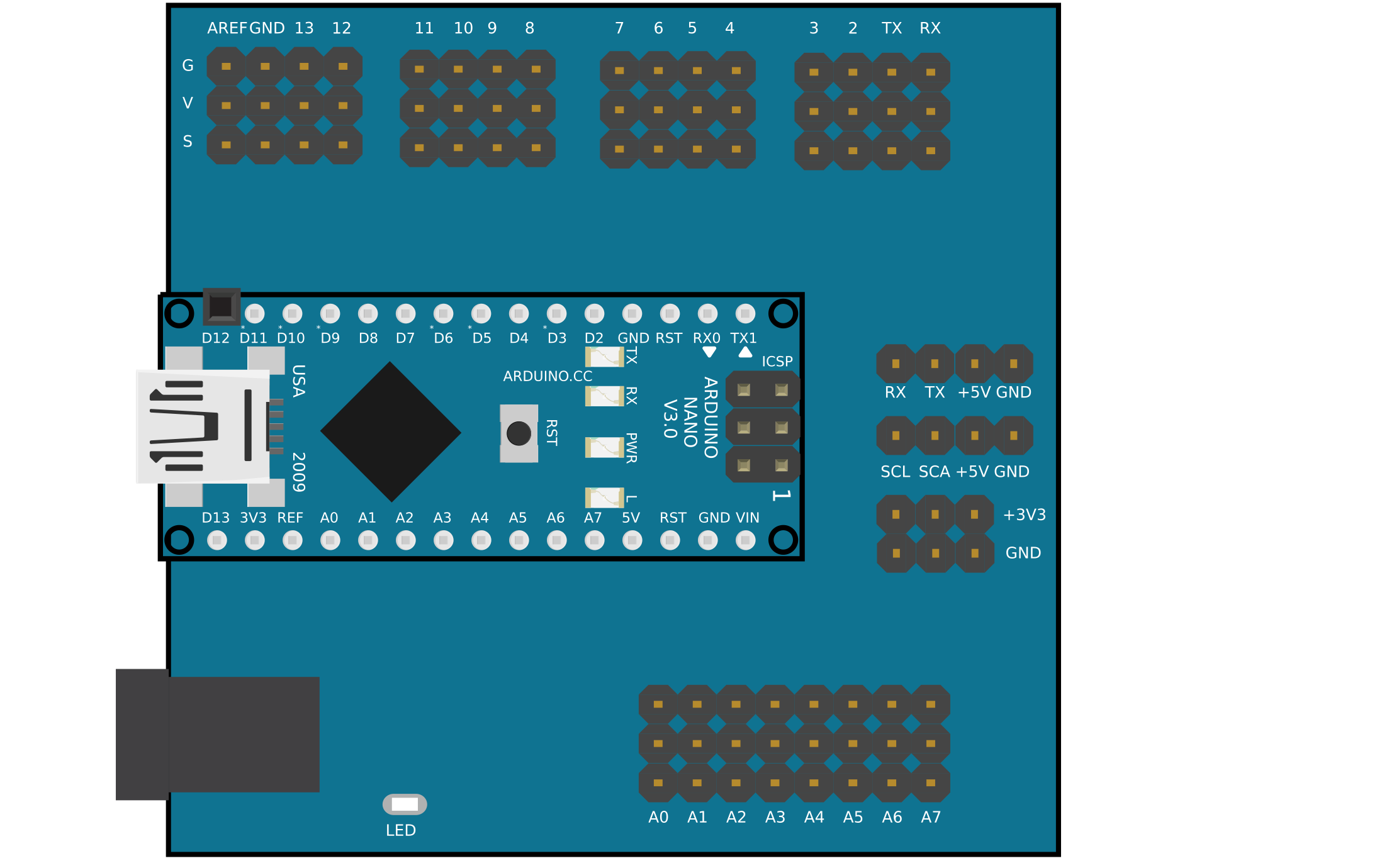

Image of ARDUINO NANO
Cirkit Designer LogoDesign with ARDUINO NANO in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board based on the ATmega328P. It is designed for easy prototyping and development of electronic projects, offering a small form factor without compromising functionality. The board features digital and analog input/output pins, USB connectivity for programming and communication, and compatibility with the Arduino IDE. Its size and versatility make it ideal for projects where space is limited, such as wearable devices, robotics, and IoT applications.
