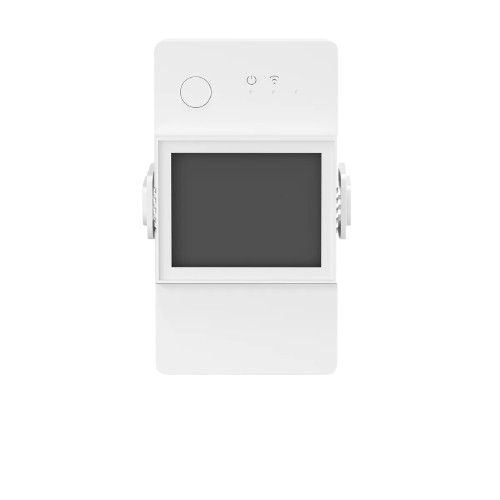

The Sonoff POW Elite is a smart Wi-Fi switch manufactured by Alexa. It allows users to remotely control and monitor electrical devices via a smartphone app or voice commands. This device is equipped with advanced energy monitoring capabilities, enabling users to track real-time power consumption, voltage, and current of connected devices. Additionally, it supports scheduling and automation, making it ideal for smart home setups.
Explore Projects Built with sonoff pow elite
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 microcontroller interfaced with a PZEM004T power monitoring module and a 4-channel relay module controlling multiple AC LED bulbs. The ESP32 uses GPIO pins to control the relays, which in turn switch the LED bulbs on and off. The PZEM004T is connected to the ESP32 for communication and to a current sensor for monitoring power consumption of the connected load through the relay contacts.
This circuit is a smart home automation system using an ESP8266 NodeMCU to control a 2-channel relay module, which in turn controls a fan and a bulb. The system is powered by a 5V adapter and a 9V battery, and it uses WiFi to connect to the SinricPro platform for remote control via a mobile app.
This circuit is a WiFi-enabled relay control system using an ESP8266-01 module and an MCP23017 I/O expander. The ESP8266 communicates with the MCP23017 via I2C to control an 8-channel relay module based on the state of 8 rocker switches, allowing for remote and manual control of connected devices.
This circuit features an ESP32 Devkit V1 microcontroller connected to a 4-channel 5V relay module, multiple pushbuttons, a PIR motion sensor, and a green LED. The ESP32 controls the relay channels, which in turn can switch AC-powered devices (bulbs) connected via sockets. The pushbuttons and PIR sensor provide input signals to the ESP32, which can be programmed to respond to these inputs by toggling the state of the relays and the LED.
Energy Monitoring: Track power usage of appliances to optimize energy consumption.
Remote Control: Turn devices on/off remotely using a smartphone or voice assistant.
Automation: Set schedules or integrate with smart home systems for automated control.
Safety: Monitor electrical parameters to prevent overloading or overheating of devices.
Technical Specifications
The following table outlines the key technical details of the Sonoff POW Elite:
Parameter
Specification
Input Voltage
100-240V AC, 50/60Hz
Maximum Load Current
16A
Maximum Power
3680W
Wireless Standard
IEEE 802.11 b/g/n (2.4GHz Wi-Fi)
Energy Monitoring
Real-time voltage, current, and power
Operating Temperature
-10°C to 40°C
Dimensions
98mm x 54mm x 31mm
App Compatibility
Alexa, Google Assistant, eWeLink App
Pin Configuration and Descriptions
The Sonoff POW Elite has a simple terminal block for wiring. Below is the pin configuration:
Pin
Label
Description
1
L (Input)
Live wire input from the power source
2
N (Input)
Neutral wire input from the power source
3
L (Output)
Live wire output to the connected device
4
N (Output)
Neutral wire output to the connected device
Note: Ensure proper wiring to avoid electrical hazards. Always turn off the power supply before installation.
Usage Instructions
How to Use the Sonoff POW Elite in a Circuit
Wiring:
Connect the live (L) and neutral (N) wires from the power source to the input terminals of the Sonoff POW Elite.
Connect the live (L) and neutral (N) wires of the device to the output terminals.
Double-check all connections to ensure they are secure and correct.
Setup:
Download the eWeLink App from the App Store or Google Play.
Power on the Sonoff POW Elite and ensure it enters pairing mode (LED indicator blinks).
Follow the app instructions to connect the device to your Wi-Fi network.
Control and Monitor:
Use the app to turn the connected device on/off, monitor energy usage, and set schedules.
Integrate with Alexa or Google Assistant for voice control.
Important Considerations and Best Practices
Wi-Fi Network: Ensure the device is connected to a 2.4GHz Wi-Fi network. It does not support 5GHz networks.
Load Capacity: Do not exceed the maximum load of 16A or 3680W to prevent damage.
Safety: Always disconnect the power supply before installation or maintenance.
Firmware Updates: Regularly check for firmware updates in the eWeLink App to ensure optimal performance and security.
Arduino Integration
While the Sonoff POW Elite is primarily designed for use with the eWeLink App, advanced users can flash custom firmware (e.g., Tasmota) to integrate it with platforms like Arduino. Below is an example of how to control the device using MQTT after flashing Tasmota:
#include <PubSubClient.h>
#include <WiFi.h>
// Wi-Fi credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";
// MQTT broker details
const char* mqtt_server = "192.168.1.100";
const char* mqtt_topic = "sonoff/powelite/cmnd/POWER";
WiFiClient espClient;
PubSubClient client(espClient);
void setup() {
Serial.begin(115200);
// Connect to Wi-Fi
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nWiFi connected");
// Connect to MQTT broker
client.setServer(mqtt_server, 1883);
while (!client.connected()) {
if (client.connect("SonoffClient")) {
Serial.println("Connected to MQTT broker");
} else {
delay(5000);
}
}
}
void loop() {
// Publish a command to turn the device ON
client.publish(mqtt_topic, "ON");
delay(10000); // Wait 10 seconds
// Publish a command to turn the device OFF
client.publish(mqtt_topic, "OFF");
delay(10000); // Wait 10 seconds
}
Note: Flashing custom firmware voids the warranty and may damage the device if not done correctly. Proceed with caution.
Troubleshooting and FAQs
Common Issues and Solutions
Device Not Connecting to Wi-Fi:
Ensure the Wi-Fi network is 2.4GHz.
Check that the SSID and password are entered correctly in the app.
Move the device closer to the router during setup.
Energy Monitoring Not Working:
Verify that the wiring is correct and secure.
Ensure the connected device is powered on and drawing current.
Device Not Responding to Commands:
Check the Wi-Fi connection and ensure the device is online in the app.
Restart the device by turning off the power supply and turning it back on.
Overheating:
Ensure the connected load does not exceed the maximum rating of 16A or 3680W.
Install the device in a well-ventilated area.
FAQs
Q: Can I use the Sonoff POW Elite with a 5GHz Wi-Fi network?
A: No, the device only supports 2.4GHz Wi-Fi networks.
Q: Does the Sonoff POW Elite support voice control?
A: Yes, it is compatible with Alexa and Google Assistant for voice commands.
Q: Can I monitor energy usage in real-time?
A: Yes, the eWeLink App provides real-time data on voltage, current, and power consumption.
Q: Is it safe to use outdoors?
A: No, the Sonoff POW Elite is designed for indoor use only. Use a weatherproof enclosure if outdoor installation is necessary.
