How to Use LED: Two Pin (red): Examples, Pinouts, and Specs

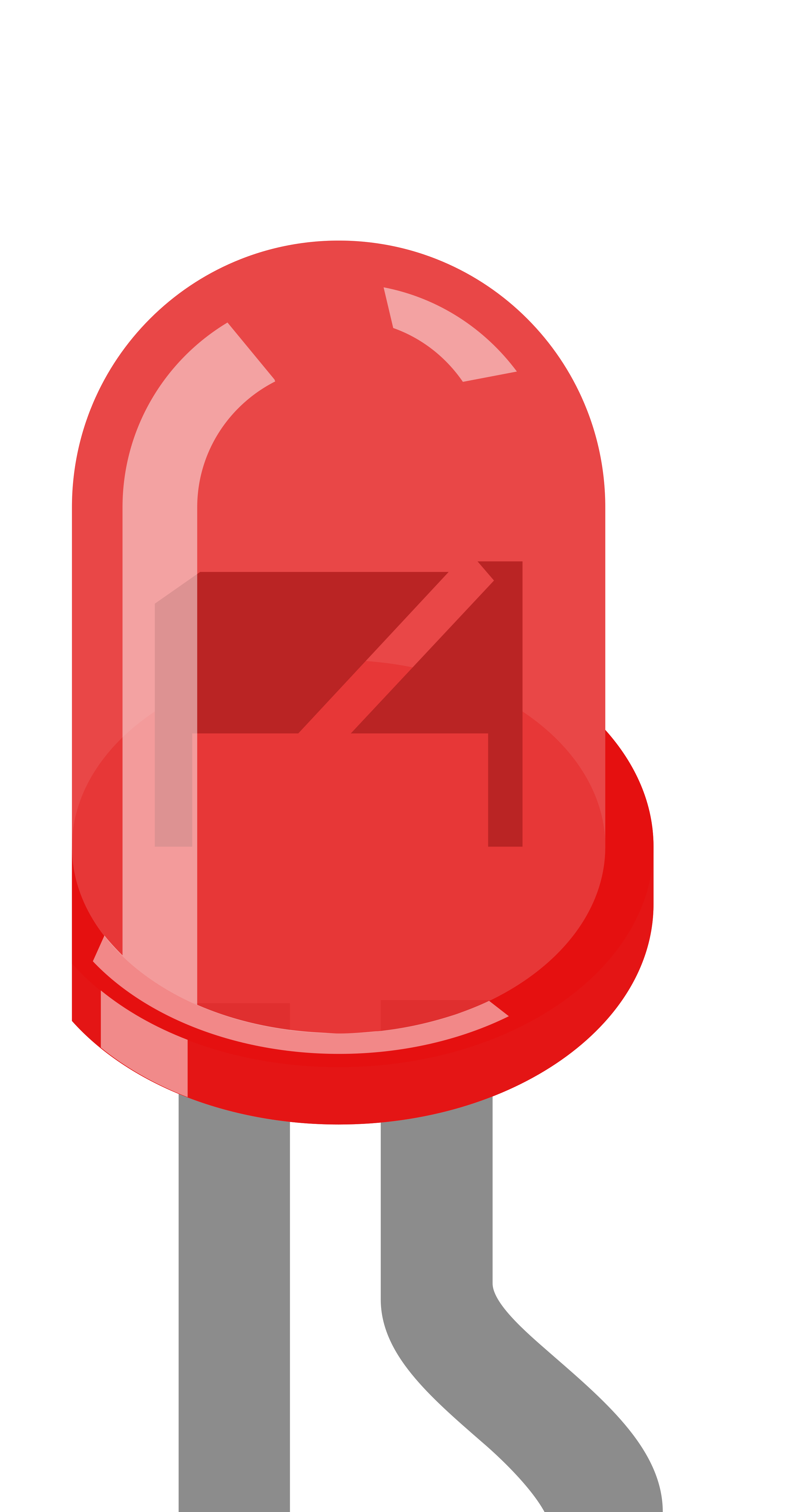

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current flows through it. The two-pin red LED is one of the most commonly used LEDs in electronic circuits. It is widely recognized for its bright red light, which is often used to indicate power, status, or alerts in various applications.

• Power indicators in electronic devices
• Status indicators for circuits and systems
• Visual alerts in alarms or notifications
• Simple light displays or decorations
• Educational projects and prototyping

Below are the key technical details for a standard two-pin red LED:

The two-pin red LED has a simple pinout:

Note: If the pins are trimmed or indistinguishable, the flat edge on the LED casing indicates the cathode (-).

1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

   • (V_{supply}): Supply voltage
   • (V_f): Forward voltage of the LED (1.8V to 2.2V for red LEDs)
   • (I_f): Desired forward current (typically 20mA)

   For example, with a 5V supply: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (+) to the positive terminal of the power supply through the resistor.
   • Connect the cathode (-) to the ground (GND).

3. Test the Circuit: Power the circuit and observe the LED emitting red light.

• Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
• Use a Resistor: Always use a current-limiting resistor to avoid exceeding the maximum current rating.
• Avoid Overheating: Prolonged exposure to high currents or temperatures can degrade the LED.
• Breadboard Testing: For prototyping, use a breadboard to test the circuit before soldering.

Below is an example of how to connect and control a red LED using an Arduino UNO:

• Connect the anode (+) of the LED to a 220Ω resistor.
• Connect the other end of the resistor to digital pin 13 on the Arduino.
• Connect the cathode (-) of the LED to the GND pin on the Arduino.

// This code blinks a red LED connected to pin 13 of the Arduino UNO.
// Ensure a 220Ω resistor is used to limit the current through the LED.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.

   • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.

   • Cause: Missing or incorrect resistor value.

   • Solution: Verify the resistor value using the formula and ensure it is connected in series with the LED.

2. LED is Dim:

   • Cause: Insufficient current.
   • Solution: Check the resistor value and ensure the supply voltage is adequate.

3. LED Burns Out Quickly:

   • Cause: Excessive current.
   • Solution: Use a proper current-limiting resistor to prevent overcurrent.

4. LED Flickers:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

Q: Can I connect the LED directly to a 5V power supply without a resistor?
A: No, doing so will likely damage the LED due to excessive current. Always use a current-limiting resistor.

Q: How do I identify the anode and cathode if the pins are trimmed?
A: Look for the flat edge on the LED casing, which indicates the cathode (-). Alternatively, use a multimeter in diode mode to test the polarity.

Q: Can I use a red LED with a 3.3V power supply?
A: Yes, but you still need a resistor to limit the current. Calculate the resistor value based on the supply voltage and forward voltage of the LED.

Q: What happens if I exceed the maximum current rating?
A: Exceeding the maximum current can cause the LED to overheat, degrade, or fail permanently.

By following this documentation, you can effectively use a two-pin red LED in your electronic projects!
