How to Use HLK-5M05 AC-DC Power Module: Examples, Pinouts, and Specs

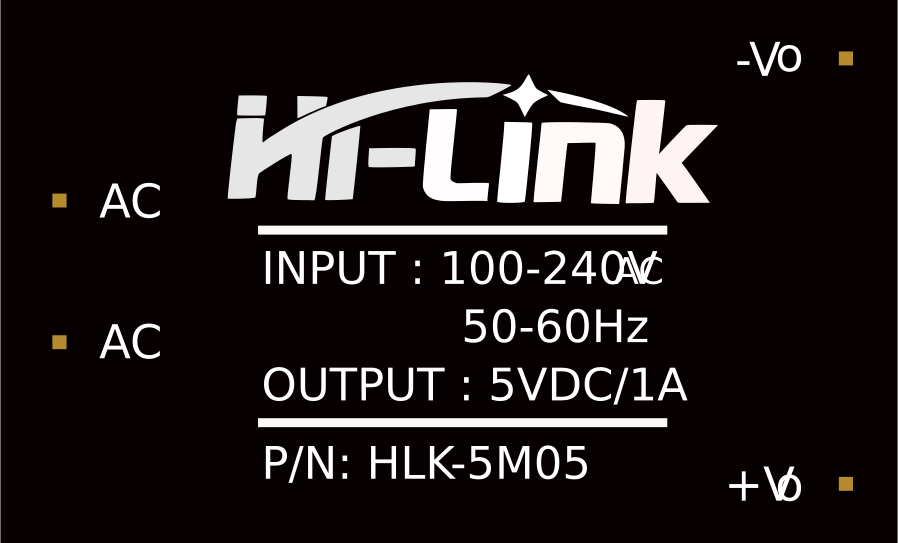

Image of HLK-5M05 AC-DC Power ModuleDesign with HLK-5M05 AC-DC Power Module in Cirkit Designer

Introduction

The HLK-5M05 is a compact and efficient AC-DC power supply module designed to convert a wide range of AC input voltages (85-265V AC) into a stable 5V DC output. This module is widely used in applications requiring a reliable and space-saving power solution for low-voltage electronic devices. Its small size and high efficiency make it ideal for use in IoT devices, home automation systems, embedded systems, and other low-power electronic projects.

Explore Projects Built with HLK-5M05 AC-DC Power Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications

Technical Specifications

The HLK-5M05 module is designed to meet the needs of a variety of low-power applications. Below are its key technical specifications:

Parameter Value
Input Voltage Range 85-265V AC
Output Voltage 5V DC
Output Current 1A (maximum)
Output Power 5W
Efficiency ≥ 70%
Operating Temperature -25°C to +60°C
Storage Temperature -40°C to +80°C
Dimensions 35mm x 25mm x 21mm
Isolation Voltage 3000V AC
Ripple and Noise ≤ 50mV
Protection Features Overload, short circuit, overheat

Pin Configuration and Descriptions

The HLK-5M05 module has six pins for input and output connections. The table below describes each pin:

Pin Number Pin Name Description
1 AC-L Live wire input for AC voltage
2 AC-N Neutral wire input for AC voltage
3 NC Not connected (leave unconnected)
4 +5V Positive 5V DC output
5 GND Ground for DC output
6 NC Not connected (leave unconnected)

Usage Instructions

How to Use the HLK-5M05 in a Circuit

  1. Connect the AC Input:

    • Connect the AC-L pin to the live wire of the AC power source.
    • Connect the AC-N pin to the neutral wire of the AC power source.
    • Ensure proper insulation and safety precautions when working with high-voltage AC.
  2. Connect the DC Output:

    • Use the +5V pin to supply power to your circuit's positive rail.
    • Connect the GND pin to the ground rail of your circuit.
  3. Mounting the Module:

    • Secure the module on a PCB or enclosure using appropriate mounting hardware.
    • Ensure adequate spacing and insulation to prevent accidental contact with high-voltage pins.
  4. Filtering and Decoupling:

    • Add a 0.1µF ceramic capacitor and a 10µF electrolytic capacitor across the +5V and GND pins to reduce noise and stabilize the output voltage.

Important Considerations

Example: Using HLK-5M05 with Arduino UNO

The HLK-5M05 can be used to power an Arduino UNO directly. Below is an example circuit and Arduino code:

Circuit Connections

Arduino Code

// Example code to blink an LED using Arduino UNO powered by HLK-5M05

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect AC input connections or insufficient input voltage.
    • Solution: Verify that the AC-L and AC-N pins are connected correctly and that the input voltage is within the specified range (85-265V AC).
  2. Output Voltage Fluctuations:

    • Cause: Insufficient filtering or unstable input voltage.
    • Solution: Add decoupling capacitors (e.g., 0.1µF and 10µF) across the output pins to stabilize the voltage.
  3. Module Overheating:

    • Cause: Excessive load or poor ventilation.
    • Solution: Ensure the load does not exceed 1A and provide adequate ventilation or heat sinking.
  4. Short Circuit Protection Triggered:

    • Cause: Output pins are shorted.
    • Solution: Disconnect the module, check for shorts in the circuit, and reconnect after resolving the issue.

FAQs

Q1: Can the HLK-5M05 power a Raspberry Pi?
A1: No, the HLK-5M05 provides a maximum current of 1A, which is insufficient for most Raspberry Pi models. Use a power supply with higher current capacity.

Q2: Is the module safe for long-term use?
A2: Yes, the HLK-5M05 is designed for long-term use, provided it is operated within its specified limits and proper safety precautions are followed.

Q3: Can I use the module outdoors?
A3: The HLK-5M05 is not weatherproof. If outdoor use is required, ensure it is enclosed in a weatherproof housing.

Q4: What happens if the input voltage exceeds 265V AC?
A4: Exceeding the input voltage range may damage the module. Use a voltage regulator or surge protector to prevent overvoltage.
