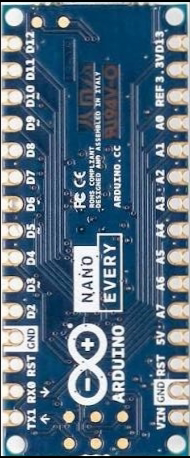

Image of Arduino nano davelopment board
Cirkit Designer LogoDesign with Arduino nano davelopment board in Cirkit Designer

Introduction

The Arduino Nano (Manufacturer Part ID: A000005) is a compact microcontroller board developed by Arduino. It is based on the ATmega328P microcontroller and is designed for easy integration into a wide range of electronic projects. Its small form factor, USB connectivity, and versatile input/output capabilities make it an ideal choice for prototyping and embedded systems.

Explore Projects Built with Arduino nano davelopment board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
Image of MacroDisplay: A project utilizing Arduino nano davelopment board in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino nano davelopment board in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Controlled LED Display with RTC and Humidity Sensing
Image of Alarm Clock: A project utilizing Arduino nano davelopment board in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to an LED dot display, a real-time clock (RTC DS3231), and a humidity and temperature sensor (SHT21). The microcontroller communicates with the RTC and SHT21 via I2C (using A4 and A5 as SDA and SCL lines, respectively), and it controls the LED display through SPI-like signals (using D10, D11, and D12 for DIN, CS, and CLK). The circuit is designed to display time and environmental data on the LED display, with all components sharing a common power supply and ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
Image of Smart Wheel Chair: A project utilizing Arduino nano davelopment board in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino nano davelopment board

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MacroDisplay: A project utilizing Arduino nano davelopment board in a practical application
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Arduino nano davelopment board in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm Clock: A project utilizing Arduino nano davelopment board in a practical application
Arduino Nano-Controlled LED Display with RTC and Humidity Sensing
This circuit features a Nano 3.0 ATmega328P microcontroller connected to an LED dot display, a real-time clock (RTC DS3231), and a humidity and temperature sensor (SHT21). The microcontroller communicates with the RTC and SHT21 via I2C (using A4 and A5 as SDA and SCL lines, respectively), and it controls the LED display through SPI-like signals (using D10, D11, and D12 for DIN, CS, and CLK). The circuit is designed to display time and environmental data on the LED display, with all components sharing a common power supply and ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Wheel Chair: A project utilizing Arduino nano davelopment board in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DIY electronics and prototyping
  • Robotics and automation systems
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable technology
  • Educational projects and learning platforms

Technical Specifications

The Arduino Nano is equipped with a variety of features that make it a powerful and versatile development board. Below are its key technical details:

Key Technical Details

Specification Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm
Weight 7 g

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the board. Can be used to power external devices.
3.3V Regulated 3.3V output for low-voltage devices.
GND Ground pins (multiple available).
RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Number Description
D0 - D13 General-purpose digital I/O pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Number Description
A0 - A7 Analog input pins. Can read voltages between 0 and 5V.

Communication Pins

Pin Name Description
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
A4 (SDA) I2C data line.
A5 (SCL) I2C clock line.

Usage Instructions

The Arduino Nano is easy to use and can be programmed using the Arduino IDE. Below are the steps to get started and some important considerations:

How to Use the Arduino Nano in a Circuit

  1. Power the Board:

    • Connect the Nano to your computer via a USB Mini-B cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V) or the 5V pin (regulated 5V).
  2. Connect Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the current drawn by connected devices does not exceed the pin's maximum rating (40 mA).
  3. Program the Board:

    • Open the Arduino IDE on your computer.
    • Select Tools > Board > Arduino Nano.
    • Select the correct processor (ATmega328P) and port.
    • Write or load your code and click the Upload button.
  4. Run the Program:

    • Once the code is uploaded, the Nano will execute it immediately.
    • Monitor the output using the Serial Monitor in the Arduino IDE if needed.

Important Considerations and Best Practices

  • Use a proper power source to avoid damaging the board.
  • Avoid drawing excessive current from the I/O pins. Use external transistors or relays for high-current loads.
  • Use pull-up or pull-down resistors for stable digital input signals.
  • Ensure proper grounding for all connected components to avoid noise and instability.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This example blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB driver for the Arduino Nano.
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Press the RESET button on the Nano just before uploading the code.
    • Check for loose or faulty USB connections.
  3. The board is overheating:

    • Ensure the input voltage does not exceed the recommended range (7-12V).
    • Check for short circuits in the connected components.
  4. Analog readings are unstable:

    • Use proper decoupling capacitors near the analog input pins.
    • Ensure the sensor or input device is properly grounded.

FAQs

Q: Can the Arduino Nano be powered by a battery?
A: Yes, you can power the Nano using a battery. Connect the battery's positive terminal to the VIN pin and the negative terminal to GND. Ensure the voltage is within the recommended range (7-12V).

Q: How do I reset the Arduino Nano?
A: Press the RESET button on the board to restart the program. Alternatively, you can connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266) to the Nano using its serial or I2C pins.

Q: What is the difference between the Arduino Nano and Arduino Uno?
A: The Nano is smaller and more compact than the Uno, making it ideal for space-constrained projects. However, both boards use the same ATmega328P microcontroller and have similar functionality.
