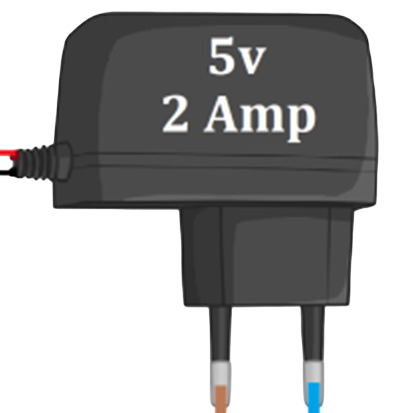

The ADAPTO 5 VOLT is a compact and reliable power adapter designed to convert standard AC voltage (110-240V) into a stable 5V DC output. This component is widely used to power low-voltage electronic devices, microcontrollers, sensors, and other circuits requiring a consistent 5V power supply. Its robust design ensures safety and efficiency, making it an essential tool for hobbyists, engineers, and professionals alike.

• Powering microcontroller boards such as Arduino, Raspberry Pi, and ESP32.
• Supplying power to sensors, relays, and small electronic modules.
• Charging USB-powered devices.
• Providing a stable 5V DC source for prototyping and testing circuits.

The ADAPTO 5 VOLT is designed to meet the needs of a wide range of electronic applications. Below are its key technical details:

The ADAPTO 5 VOLT typically has two main connectors: an AC input and a DC output. Below is a description of these connections:

1. Connect the AC Input: Plug the adapter into a standard AC power outlet (110-240V).
2. Connect the DC Output: Use the appropriate connector (USB or barrel jack) to supply power to your device or circuit.
3. Verify Polarity: Ensure the positive and negative terminals of the DC output are correctly connected to your circuit to avoid damage.
4. Power On: Once connected, the adapter will provide a stable 5V DC output to your device.

• Check Current Requirements: Ensure the total current draw of your circuit does not exceed the adapter's maximum output current (2A).
• Avoid Overloading: Overloading the adapter may trigger its protection features or cause overheating.
• Use Proper Connectors: Match the adapter's output connector type (USB or barrel jack) with your device's input.
• Ventilation: Operate the adapter in a well-ventilated area to prevent overheating.
• Testing with Arduino UNO: The ADAPTO 5 VOLT can be used to power an Arduino UNO via its USB port or the barrel jack. Below is an example of powering an Arduino UNO and running a simple LED blink program:

// Example: Blink an LED using Arduino UNO powered by ADAPTO 5 VOLT

// Pin 13 is connected to the onboard LED
const int ledPin = 13;

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

• When powering the Arduino UNO via the barrel jack, ensure the adapter's output voltage is precisely 5V to avoid damaging the board.
• If using the USB port, the adapter will also provide power to connected peripherals.

1. No Output Voltage

   • Cause: The adapter may not be properly connected to the AC power source.
   • Solution: Check the AC plug and ensure the outlet is functional.

2. Device Not Powering On

   • Cause: Incorrect polarity or loose connections.
   • Solution: Verify the polarity of the DC output and ensure all connections are secure.

3. Adapter Overheating

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Reduce the load on the adapter and ensure it is used in a well-ventilated area.

4. Intermittent Power Supply

   • Cause: Faulty connectors or damaged cables.
   • Solution: Inspect the connectors and cables for damage and replace if necessary.

• Q: Can I use the ADAPTO 5 VOLT to charge my smartphone?
  A: Yes, if your smartphone supports 5V charging and the adapter has a USB output.

• Q: Is the adapter safe to use with sensitive electronics?
  A: Yes, the ADAPTO 5 VOLT includes overvoltage, overcurrent, and short-circuit protection to safeguard your devices.

• Q: Can I use this adapter outdoors?
  A: The ADAPTO 5 VOLT is not weatherproof. Use it indoors or in a protected environment.

• Q: What happens if I exceed the 2A current limit?
  A: The adapter's protection features will activate, cutting off the output to prevent damage.

By following this documentation, you can safely and effectively use the ADAPTO 5 VOLT in your electronic projects.
