How to Use TB6612 DRV8833: Examples, Pinouts, and Specs

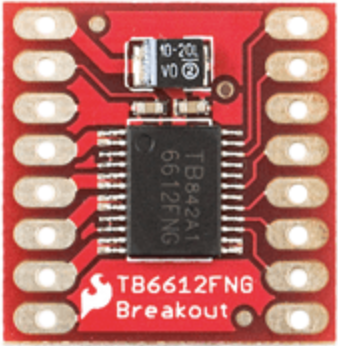

Image of TB6612 DRV8833
Cirkit Designer LogoDesign with TB6612 DRV8833 in Cirkit Designer

Introduction

The TB6612 DRV8833 is a dual H-bridge motor driver IC designed for driving DC motors and stepper motors. It is widely used in robotics, automation, and other motor control applications due to its compact size, high efficiency, and ease of use. This component allows for independent control of two motors, including forward, reverse, and braking functionality.

Common applications include:

  • Robotics (e.g., controlling wheels or arms)
  • Automated conveyor systems
  • Small-scale CNC machines
  • DIY electronics projects involving motorized components

Explore Projects Built with TB6612 DRV8833

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano Motor Controller with DRV8833 Driver
Image of 2相4線式モーター: A project utilizing TB6612 DRV8833 in a practical application
This circuit is designed to control a 2-phase 4-wire motor using an Arduino Nano 3.0 and a DRV8833 motor driver. The Arduino Nano provides control signals to the DRV8833, which in turn drives the motor, allowing for precise motor control.
Cirkit Designer LogoOpen Project in Cirkit Designer
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
Image of Jayshree CNC: A project utilizing TB6612 DRV8833 in a practical application
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and nRF24L01 Wi-Fi Controlled Dual Motor System
Image of SMARS with RF2401- DRV8833: A project utilizing TB6612 DRV8833 in a practical application
This circuit is a remote-controlled dual-motor driver system using an ESP32 microcontroller. The ESP32 interfaces with an nRF24L01 wireless module for communication and a DRV8833 motor driver to control two motors, powered by a 2x 18650 battery pack regulated by an AMS1117 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Stepper Motor Control System with TB6600 Driver and DKC-1A Controller
Image of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing TB6612 DRV8833 in a practical application
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TB6612 DRV8833

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 2相4線式モーター: A project utilizing TB6612 DRV8833 in a practical application
Arduino Nano Motor Controller with DRV8833 Driver
This circuit is designed to control a 2-phase 4-wire motor using an Arduino Nano 3.0 and a DRV8833 motor driver. The Arduino Nano provides control signals to the DRV8833, which in turn drives the motor, allowing for precise motor control.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Jayshree CNC: A project utilizing TB6612 DRV8833 in a practical application
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SMARS with RF2401- DRV8833: A project utilizing TB6612 DRV8833 in a practical application
ESP32 and nRF24L01 Wi-Fi Controlled Dual Motor System
This circuit is a remote-controlled dual-motor driver system using an ESP32 microcontroller. The ESP32 interfaces with an nRF24L01 wireless module for communication and a DRV8833 motor driver to control two motors, powered by a 2x 18650 battery pack regulated by an AMS1117 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing TB6612 DRV8833 in a practical application
Stepper Motor Control System with TB6600 Driver and DKC-1A Controller
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The TB6612 DRV8833 motor driver has the following key technical specifications:

Parameter Value
Operating Voltage (Vcc) 2.7V to 10.8V
Motor Output Voltage 0V to Vcc
Continuous Output Current 1.0A per channel (max)
Peak Output Current 2.0A per channel (short duration)
Logic Input Voltage 1.8V to 7.0V
PWM Frequency Up to 100 kHz
Standby Current < 1 µA
Thermal Shutdown Yes
Overcurrent Protection Yes

Pin Configuration and Descriptions

The TB6612 DRV8833 comes in a 16-pin package. Below is the pin configuration:

Pin Name Description
1 AIN1 Input signal for Motor A (controls direction)
2 AIN2 Input signal for Motor A (controls direction)
3 PWMA PWM input for Motor A (controls speed)
4 AOUT1 Output 1 for Motor A
5 AOUT2 Output 2 for Motor A
6 VM Motor power supply (2.7V to 10.8V)
7 GND Ground
8 VCC Logic power supply (1.8V to 7.0V)
9 STBY Standby mode control (active high)
10 BOUT2 Output 2 for Motor B
11 BOUT1 Output 1 for Motor B
12 PWMB PWM input for Motor B (controls speed)
13 BIN2 Input signal for Motor B (controls direction)
14 BIN1 Input signal for Motor B (controls direction)
15 NC No connection
16 NC No connection

Usage Instructions

How to Use the TB6612 DRV8833 in a Circuit

  1. Power Connections:

    • Connect the motor power supply (VM) to the motor voltage source (2.7V to 10.8V).
    • Connect the logic power supply (VCC) to a voltage source compatible with your microcontroller (1.8V to 7.0V).
    • Connect the GND pin to the ground of your circuit.
  2. Motor Connections:

    • Connect the motor terminals to the AOUT1/AOUT2 pins for Motor A and BOUT1/BOUT2 pins for Motor B.
  3. Control Signals:

    • Use the AIN1/AIN2 and BIN1/BIN2 pins to control the direction of Motor A and Motor B, respectively.
    • Use the PWMA and PWMB pins to control the speed of Motor A and Motor B using PWM signals.
    • Set the STBY pin high to enable the motor driver. Pull it low to put the driver in standby mode.
  4. PWM Control:

    • Generate PWM signals from a microcontroller (e.g., Arduino) to control motor speed. The duty cycle of the PWM signal determines the speed.

Important Considerations and Best Practices

  • Ensure that the motor power supply voltage (VM) matches the voltage rating of your motors.
  • Use decoupling capacitors near the VM and VCC pins to reduce noise and improve stability.
  • Avoid exceeding the maximum current ratings to prevent damage to the IC.
  • Use proper heat dissipation techniques if operating near the maximum current limits.

Example: Connecting to an Arduino UNO

Below is an example Arduino sketch to control two DC motors using the TB6612 DRV8833:

// Define motor control pins
#define AIN1 7  // Motor A direction pin 1
#define AIN2 6  // Motor A direction pin 2
#define PWMA 5  // Motor A speed (PWM) pin
#define BIN1 4  // Motor B direction pin 1
#define BIN2 3  // Motor B direction pin 2
#define PWMB 2  // Motor B speed (PWM) pin
#define STBY 8  // Standby pin

void setup() {
  // Set motor control pins as outputs
  pinMode(AIN1, OUTPUT);
  pinMode(AIN2, OUTPUT);
  pinMode(PWMA, OUTPUT);
  pinMode(BIN1, OUTPUT);
  pinMode(BIN2, OUTPUT);
  pinMode(PWMB, OUTPUT);
  pinMode(STBY, OUTPUT);

  // Enable the motor driver
  digitalWrite(STBY, HIGH);
}

void loop() {
  // Motor A: Forward at 50% speed
  digitalWrite(AIN1, HIGH);
  digitalWrite(AIN2, LOW);
  analogWrite(PWMA, 128); // 50% duty cycle (0-255)

  // Motor B: Reverse at 75% speed
  digitalWrite(BIN1, LOW);
  digitalWrite(BIN2, HIGH);
  analogWrite(PWMB, 192); // 75% duty cycle (0-255)

  delay(2000); // Run motors for 2 seconds

  // Stop both motors
  analogWrite(PWMA, 0);
  analogWrite(PWMB, 0);

  delay(2000); // Wait for 2 seconds
}

Troubleshooting and FAQs

Common Issues

  1. Motors Not Running:

    • Ensure the STBY pin is set high to enable the motor driver.
    • Check the power supply connections for VM and VCC.
    • Verify that the PWM signals are being generated correctly.
  2. Overheating:

    • Ensure the current drawn by the motors does not exceed the IC's maximum ratings.
    • Use a heat sink or proper ventilation if necessary.
  3. Erratic Motor Behavior:

    • Check for loose or incorrect wiring.
    • Add decoupling capacitors near the power supply pins to reduce noise.

FAQs

Q: Can I use the TB6612 DRV8833 to drive stepper motors?
A: Yes, the TB6612 DRV8833 can drive stepper motors by controlling the two H-bridges in a coordinated manner. You will need to generate the appropriate step and direction signals.

Q: What is the difference between VM and VCC?
A: VM powers the motors, while VCC powers the logic circuitry of the IC. Ensure both are within their respective voltage ranges.

Q: Can I use this driver with a 3.3V microcontroller?
A: Yes, the TB6612 DRV8833 supports logic input voltages as low as 1.8V, making it compatible with 3.3V microcontrollers.
