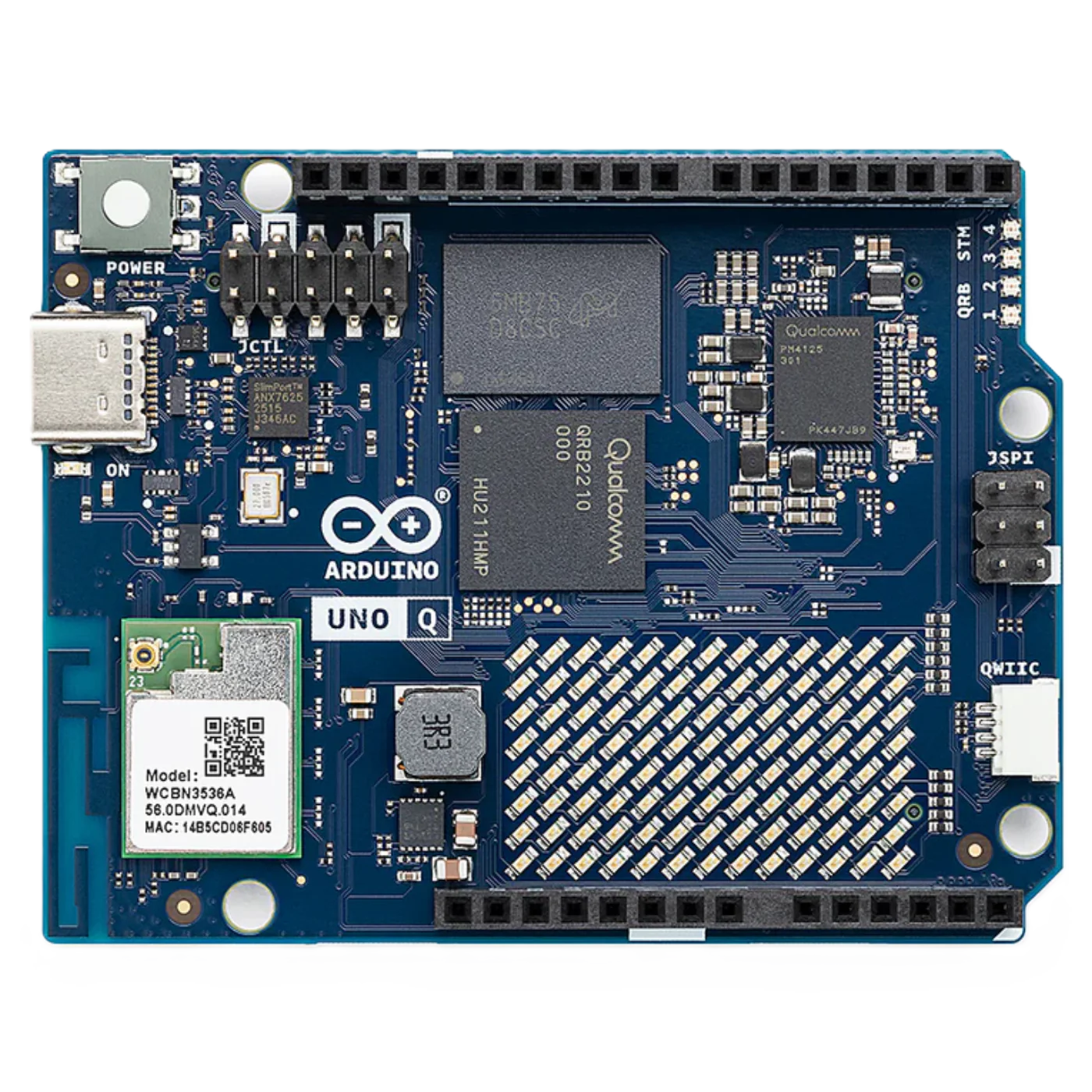

Image of Arduino UNO Q
Cirkit Designer LogoDesign with Arduino UNO Q in Cirkit Designer

Introduction

The Arduino UNO Q is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed to provide a versatile and user-friendly platform for building interactive projects and prototypes. The board features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a USB connection for programming, and a power jack for external power supply. Its compact design and robust functionality make it a popular choice for hobbyists, students, and professionals alike.

Explore Projects Built with Arduino UNO Q

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
Image of WORK_1: A project utilizing Arduino UNO Q in a practical application
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO Q in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino and ESP32-Based Smart Fire Detection and Control System with I2C LCD Display
Image of robot: A project utilizing Arduino UNO Q in a practical application
This circuit integrates an Arduino UNO with various sensors and actuators, including an MQ-2 gas sensor, a KY-026 flame sensor, a servo motor, a 16x2 I2C LCD, a relay-controlled water pump, and a buzzer. The Arduino UNO processes sensor data and controls the actuators, while the ESP32 communicates with the Arduino for additional processing or connectivity.
Cirkit Designer LogoOpen Project in Cirkit Designer

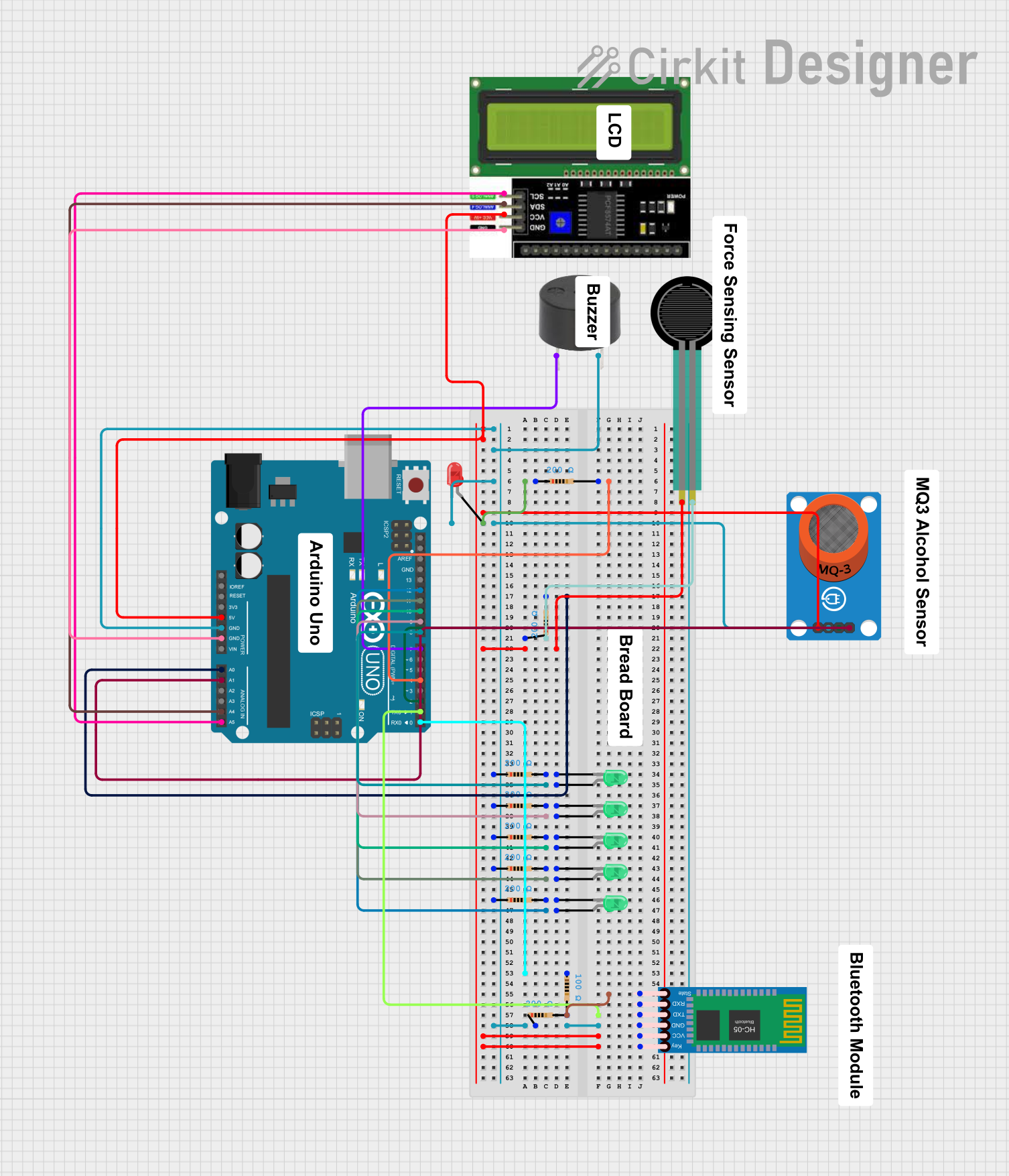

Arduino UNO Multi-Sensor Monitoring System with Bluetooth Connectivity
