How to Use LED Two Pin (Green): Examples, Pinouts, and Specs

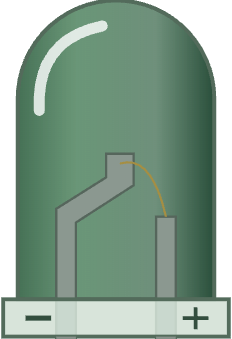

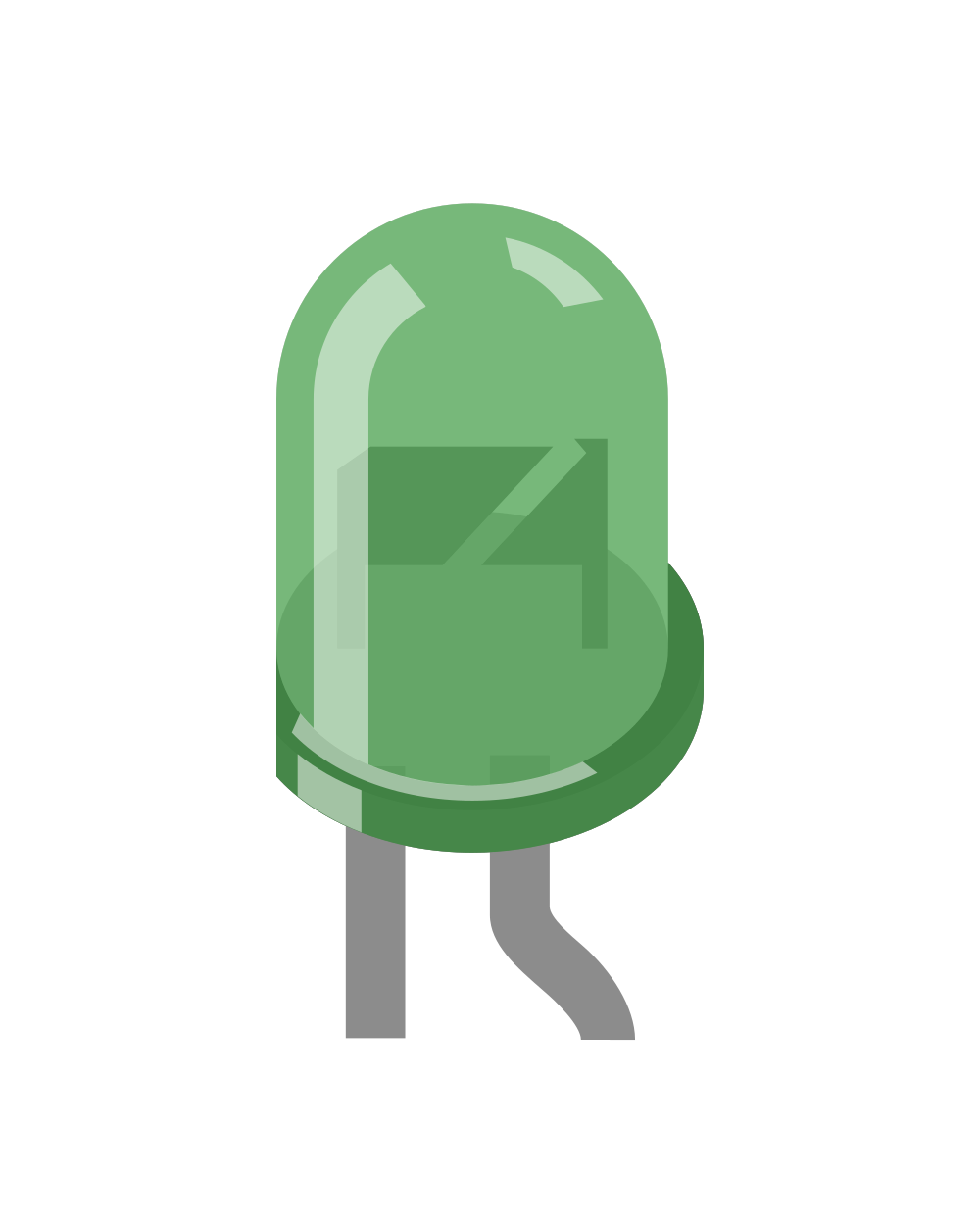

Image of LED Two Pin (Green)
Cirkit Designer LogoDesign with LED Two Pin (Green) in Cirkit Designer

Introduction

The LED Two Pin (Green) is a light-emitting diode that emits green light when an electric current flows through it. It is a widely used electronic component in various applications due to its simplicity, efficiency, and reliability. The two-pin design makes it easy to integrate into circuits, and its green light is commonly used for visual indicators, status displays, and decorative lighting.

Explore Projects Built with LED Two Pin (Green)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing LED Two Pin (Green) in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi-Controlled Red LED Indicator
Image of ras1: A project utilizing LED Two Pin (Green) in a practical application
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Inductive Power Transfer
Image of Wind Mill: A project utilizing LED Two Pin (Green) in a practical application
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing LED Two Pin (Green) in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LED Two Pin (Green)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Panel : A project utilizing LED Two Pin (Green) in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ras1: A project utilizing LED Two Pin (Green) in a practical application
Raspberry Pi-Controlled Red LED Indicator
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Wind Mill: A project utilizing LED Two Pin (Green) in a practical application
LED Array with Inductive Power Transfer
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing LED Two Pin (Green) in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Power and status indicators in electronic devices
  • Signal and warning lights
  • Decorative and ambient lighting
  • Displays in control panels and dashboards
  • Educational and hobbyist projects

Technical Specifications

Below are the key technical details for the LED Two Pin (Green):

Parameter Value
Forward Voltage (Vf) 2.0V to 3.2V
Forward Current (If) 20mA (typical)
Maximum Current (Imax) 30mA
Wavelength 520nm to 530nm (green light)
Viewing Angle 20° to 30°
Polarity Anode (+), Cathode (-)

Pin Configuration:

The LED Two Pin (Green) has two pins, as described below:

Pin Description
Anode (+) The longer pin, connected to the positive terminal.
Cathode (-) The shorter pin, connected to the negative terminal.

Note: The flat edge on the LED casing typically indicates the cathode (-).

Usage Instructions

How to Use the LED in a Circuit:

  1. Determine the Resistor Value:

    • LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:
      • (V_{supply}) is the supply voltage.
      • (V_f) is the forward voltage of the LED (e.g., 2.2V).
      • (I_f) is the desired forward current (e.g., 20mA or 0.02A).
  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground (GND).
  3. Power the Circuit:

    • Apply the appropriate voltage to the circuit. The LED will emit green light when current flows through it.

Important Considerations:

  • Polarity Matters: Ensure the anode and cathode are connected correctly. Reversing the polarity may prevent the LED from lighting up.
  • Avoid Overcurrent: Always use a resistor to limit the current. Exceeding the maximum current (30mA) can permanently damage the LED.
  • Heat Management: While LEDs generate minimal heat, excessive current can cause overheating. Use proper resistors to avoid this.

Example: Connecting to an Arduino UNO

Below is an example of how to connect the LED Two Pin (Green) to an Arduino UNO and control it using a simple sketch.

Circuit Setup:

  • Connect the anode (+) of the LED to a 220Ω resistor.
  • Connect the other end of the resistor to digital pin 13 on the Arduino.
  • Connect the cathode (-) of the LED to the GND pin on the Arduino.

Arduino Code:

// Simple LED Blink Example for Arduino UNO
// This code blinks the LED connected to pin 13 every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues:

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.
      • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to the ground.
    • Cause: No current-limiting resistor or incorrect resistor value.
      • Solution: Use a resistor with the correct value to limit the current.
  2. LED is Dim:

    • Cause: Insufficient current.
      • Solution: Check the resistor value and ensure the supply voltage is adequate.
  3. LED Burns Out:

    • Cause: Excessive current.
      • Solution: Use a resistor to limit the current to 20mA or less.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
      • Solution: Check the power source and ensure all connections are secure.

FAQs:

  • Q: Can I connect the LED directly to a 5V power supply?
    A: No, you must use a current-limiting resistor to prevent damage to the LED.

  • Q: What happens if I reverse the polarity?
    A: The LED will not light up, but it typically won't be damaged unless excessive reverse voltage is applied.

  • Q: Can I use the LED with a 3.3V microcontroller?
    A: Yes, but ensure you calculate the appropriate resistor value for the 3.3V supply.

  • Q: How do I know which pin is the anode or cathode?
    A: The longer pin is the anode (+), and the shorter pin is the cathode (-). Additionally, the flat edge on the LED casing indicates the cathode.

By following this documentation, you can effectively use the LED Two Pin (Green) in your projects and troubleshoot common issues with ease.
