Introduction

The RGB LED Module HW-479, manufactured by Makers Electronics, is a versatile component designed to emit a wide range of colors by combining red, green, and blue light. This module is ideal for applications requiring dynamic lighting effects, such as decorative lighting, status indicators, and display systems. Its compact design and ease of use make it a popular choice for hobbyists and professionals alike.

Explore Projects Built with RGB LED MODULE HW-479

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Battery-Powered RGB LED Control with Pushbuttons

This circuit consists of an RGB LED controlled by three pushbuttons, each corresponding to one of the LED's color channels (Red, Green, and Blue). The pushbuttons are powered by a MAHIR 1.mini power source, allowing the user to manually toggle each color channel of the RGB LED.

Open Project in Cirkit Designer

Arduino UNO Bluetooth-Controlled RGB LED Module

This circuit consists of an Arduino UNO connected to an RGB LED module and a Bluetooth HC-06 module. The Arduino controls the RGB LED colors via digital pins D4, D5, and D6, and communicates with the Bluetooth module through pins D8 and D9, allowing for wireless control of the LED colors.

Open Project in Cirkit Designer

Arduino UNO Controlled RGB LED Matrix with Bluetooth Connectivity and Audio Output

This is an interactive display and communication circuit. It uses an Arduino UNO to drive multiple WS2812 RGB LED matrices for visual output, interfaces with a DS3231 RTC for time-related functions, and communicates wirelessly via an HC-05 Bluetooth module. Additionally, it features audio output capabilities through a speaker connected to a PAM8403 audio amplifier.

Open Project in Cirkit Designer

Battery-Powered LED Toggle Switch Circuit

This circuit consists of a red LED, a toggle switch, and a power source. The LED is powered by a 3.7V supply from the MAHIR 1.mini module, and its illumination is controlled by the toggle switch, which connects or disconnects the LED's cathode to ground.

Open Project in Cirkit Designer

Common Applications

• Decorative lighting for homes, events, and projects
• Status indicators in electronic devices
• Visual displays and signage
• Educational projects and prototyping
• Arduino and microcontroller-based lighting effects

Technical Specifications

Below are the key technical details of the RGB LED Module HW-479:

Pin Configuration

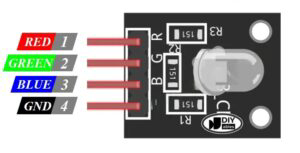

The RGB LED Module HW-479 has a 4-pin interface. The table below describes each pin:

Usage Instructions

Connecting the RGB LED Module

1. Power Supply: Connect the module to a 3.3V or 5V power source. Ensure the voltage matches the requirements of your microcontroller.
2. Pin Connections:
   • Connect the R, G, and B pins to PWM-capable pins on your microcontroller (e.g., Arduino UNO).
   • Connect the GND pin to the ground of your circuit.
3. Resistors: If not already included on the module, use appropriate current-limiting resistors (typically 220Ω to 330Ω) for each color channel to prevent damage to the LEDs.

Example: Using with Arduino UNO

Below is an example code to control the RGB LED Module HW-479 using an Arduino UNO:

// Define the PWM pins connected to the RGB LED module
const int redPin = 9;   // Red LED connected to pin 9
const int greenPin = 10; // Green LED connected to pin 10
const int bluePin = 11;  // Blue LED connected to pin 11

void setup() {
  // Set the RGB pins as output
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}

void loop() {
  // Example: Cycle through red, green, and blue colors
  setColor(255, 0, 0); // Red
  delay(1000);
  setColor(0, 255, 0); // Green
  delay(1000);
  setColor(0, 0, 255); // Blue
  delay(1000);
  setColor(255, 255, 0); // Yellow
  delay(1000);
  setColor(0, 255, 255); // Cyan
  delay(1000);
  setColor(255, 0, 255); // Magenta
  delay(1000);
  setColor(255, 255, 255); // White
  delay(1000);
}

// Function to set the RGB color
void setColor(int redValue, int greenValue, int blueValue) {
  analogWrite(redPin, redValue);   // Set red intensity (0-255)
  analogWrite(greenPin, greenValue); // Set green intensity (0-255)
  analogWrite(bluePin, blueValue);  // Set blue intensity (0-255)
}

Best Practices

• Use PWM to control the brightness of each color channel for smooth color transitions.
• Avoid exceeding the maximum current rating of 20mA per channel to prevent damage.
• Ensure proper grounding to avoid flickering or inconsistent behavior.

Troubleshooting and FAQs

Common Issues

1. LEDs not lighting up:

   • Verify all connections, especially the ground (GND) pin.
   • Check if the power supply voltage is within the specified range (3.3V - 5V).
   • Ensure the microcontroller pins are configured as outputs.

2. Incorrect colors displayed:

   • Double-check the connections of the R, G, and B pins to the correct microcontroller pins.
   • Verify the PWM values in your code.

3. Flickering LEDs:

   • Ensure a stable power supply.
   • Check for loose connections or poor soldering.

4. Module overheating:

   • Confirm that current-limiting resistors are used if not built into the module.
   • Avoid driving the LEDs at maximum brightness for extended periods.

FAQs

Q: Can I use the RGB LED Module HW-479 with a 12V power supply?
A: No, the module is designed for 3.3V to 5V operation. Using a higher voltage may damage the LEDs.

Q: How do I create custom colors?
A: Use PWM to adjust the intensity of the red, green, and blue channels. For example, setting analogWrite(redPin, 128) will set the red LED to 50% brightness.

Q: Is the module compatible with Raspberry Pi?
A: Yes, the module can be used with Raspberry Pi. However, since Raspberry Pi GPIO pins operate at 3.3V, ensure compatibility with the module's voltage requirements.

Q: Do I need external resistors?
A: Some versions of the HW-479 module include built-in resistors. If your module does not, you must add external resistors (220Ω to 330Ω) to each color channel.

By following this documentation, you can effectively integrate the RGB LED Module HW-479 into your projects and create stunning lighting effects!
