How to Use Temperature Sensor : Examples, Pinouts, and Specs

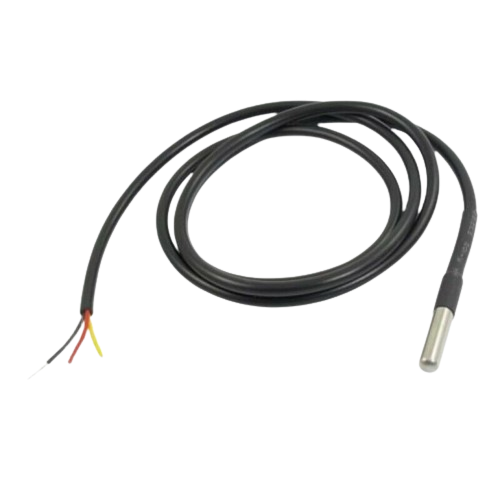

Image of Temperature Sensor
Cirkit Designer LogoDesign with Temperature Sensor in Cirkit Designer

Introduction

A temperature sensor is a device that measures the temperature of its environment and converts the measurement into an electrical signal for monitoring or control purposes. These sensors are widely used in various applications, including HVAC systems, industrial automation, medical devices, and weather monitoring systems. They are essential for maintaining temperature-sensitive processes and ensuring safety in many systems.

Common types of temperature sensors include thermistors, thermocouples, and integrated circuit (IC) temperature sensors. Each type has its unique characteristics and is suited for specific applications.

Explore Projects Built with Temperature Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Based Temperature Monitoring System with DS18B20 Sensor
Image of DS18b20 sim test: A project utilizing Temperature Sensor  in a practical application
This circuit is designed to measure temperature using a DS18B20 sensor interfaced with an Arduino UNO. The Arduino reads temperature data from the sensor via a 1-Wire bus with a pull-up resistor and outputs the readings to the serial console.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based Temperature Monitoring with LM35 Sensor
Image of sattelite: A project utilizing Temperature Sensor  in a practical application
This circuit is designed to measure temperature using an LM35 temperature sensor and display the readings in degrees Celsius. The sensor's output voltage is read by an Arduino UNO's analog input, which then converts the voltage to a temperature value. The Arduino is programmed to serially output the temperature data, which can be monitored in real-time.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based LM35 Temperature Sensor Monitoring System
Image of Measuring Temperature With LM35 and Arduino UNO: A project utilizing Temperature Sensor  in a practical application
This circuit is designed to measure temperature using an LM35 temperature sensor interfaced with an Arduino UNO microcontroller. The sensor's output voltage, which is proportional to the temperature, is read by the Arduino's analog input A0. The embedded code on the Arduino processes this signal to calculate and output the temperature in both Celsius and Fahrenheit to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with DS18B20 Temperature Sensor Monitoring
Image of Measure Temperature With Arduino UNO and DS18B20: A project utilizing Temperature Sensor  in a practical application
This circuit is designed to measure temperature using a DS18B20 temperature sensor interfaced with an Arduino UNO microcontroller. The sensor's data line is connected to digital pin 4 of the Arduino through a 4.7k Ohm pull-up resistor, and the Arduino runs a sketch that reads the temperature in Celsius and Fahrenheit, then outputs the readings to the serial monitor. The purpose of the circuit is to provide a digital temperature reading for monitoring or control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Temperature Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of DS18b20 sim test: A project utilizing Temperature Sensor  in a practical application
Arduino UNO Based Temperature Monitoring System with DS18B20 Sensor
This circuit is designed to measure temperature using a DS18B20 sensor interfaced with an Arduino UNO. The Arduino reads temperature data from the sensor via a 1-Wire bus with a pull-up resistor and outputs the readings to the serial console.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of sattelite: A project utilizing Temperature Sensor  in a practical application
Arduino UNO Based Temperature Monitoring with LM35 Sensor
This circuit is designed to measure temperature using an LM35 temperature sensor and display the readings in degrees Celsius. The sensor's output voltage is read by an Arduino UNO's analog input, which then converts the voltage to a temperature value. The Arduino is programmed to serially output the temperature data, which can be monitored in real-time.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Measuring Temperature With LM35 and Arduino UNO: A project utilizing Temperature Sensor  in a practical application
Arduino UNO Based LM35 Temperature Sensor Monitoring System
This circuit is designed to measure temperature using an LM35 temperature sensor interfaced with an Arduino UNO microcontroller. The sensor's output voltage, which is proportional to the temperature, is read by the Arduino's analog input A0. The embedded code on the Arduino processes this signal to calculate and output the temperature in both Celsius and Fahrenheit to the serial monitor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Measure Temperature With Arduino UNO and DS18B20: A project utilizing Temperature Sensor  in a practical application
Arduino UNO with DS18B20 Temperature Sensor Monitoring
This circuit is designed to measure temperature using a DS18B20 temperature sensor interfaced with an Arduino UNO microcontroller. The sensor's data line is connected to digital pin 4 of the Arduino through a 4.7k Ohm pull-up resistor, and the Arduino runs a sketch that reads the temperature in Celsius and Fahrenheit, then outputs the readings to the serial monitor. The purpose of the circuit is to provide a digital temperature reading for monitoring or control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a common IC-based temperature sensor, such as the LM35:

  • Operating Voltage: 4V to 30V
  • Output Voltage Range: 0V to 1.5V (for -55°C to 150°C)
  • Temperature Range: -55°C to 150°C
  • Accuracy: ±0.5°C (at 25°C)
  • Output Sensitivity: 10mV/°C
  • Current Consumption: 60 µA (typical)
  • Response Time: <1 second
  • Package Types: TO-92, SOIC, or DIP

Pin Configuration and Descriptions

The following table describes the pinout for a typical 3-pin temperature sensor like the LM35:

Pin Number Pin Name Description
1 VCC Power supply input (4V to 30V)
2 VOUT Analog output voltage proportional to temperature
3 GND Ground connection

Usage Instructions

How to Use the Component in a Circuit

  1. Power the Sensor: Connect the VCC pin to a stable power supply (e.g., 5V from an Arduino UNO) and the GND pin to the ground.
  2. Read the Output: The VOUT pin provides an analog voltage proportional to the temperature. For example, at 25°C, the output voltage will be 250mV (10mV/°C).
  3. Connect to a Microcontroller: Use an analog input pin on a microcontroller (e.g., Arduino UNO) to read the sensor's output voltage. Convert the voltage to temperature using the formula: [ \text{Temperature (°C)} = \frac{\text{VOUT (mV)}}{10} ]

Important Considerations and Best Practices

  • Power Supply Stability: Ensure the power supply is stable to avoid fluctuations in the output signal.
  • Avoid Noise: Use decoupling capacitors (e.g., 0.1 µF) near the sensor to reduce noise.
  • Placement: Place the sensor away from heat sources or airflow that could affect accurate readings.
  • Calibration: For critical applications, calibrate the sensor to improve accuracy.

Example Code for Arduino UNO

The following code demonstrates how to read temperature data from an LM35 sensor using an Arduino UNO:

// Define the analog pin connected to the LM35 sensor
const int sensorPin = A0;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
  float voltage = sensorValue * (5.0 / 1023.0); // Convert ADC value to voltage
  float temperature = voltage * 100.0; // Convert voltage to temperature (°C)

  // Print the temperature to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output or Incorrect Readings:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Double-check the wiring and ensure all connections are secure.
  2. Fluctuating Readings:

    • Cause: Electrical noise or unstable power supply.
    • Solution: Add a decoupling capacitor (e.g., 0.1 µF) between VCC and GND.
  3. Output Voltage Does Not Match Expected Value:

    • Cause: Calibration error or incorrect formula.
    • Solution: Verify the formula used for temperature conversion and recalibrate if necessary.
  4. Sensor Overheating:

    • Cause: Excessive current or proximity to heat sources.
    • Solution: Ensure the sensor is operating within its specified voltage and current limits. Place it in a thermally stable environment.

FAQs

Q1: Can the LM35 measure negative temperatures?
A1: Yes, the LM35 can measure temperatures as low as -55°C. However, for negative temperatures, the output voltage will be below 0V, which may require additional circuitry to read.

Q2: How do I extend the sensor's range?
A2: Use an operational amplifier (op-amp) to amplify the output signal if needed. Ensure the op-amp is configured for the desired range.

Q3: Can I use the LM35 with a 3.3V microcontroller?
A3: Yes, but the output voltage range will be limited. Ensure the microcontroller's ADC can accurately read the reduced voltage range.

Q4: Is the LM35 waterproof?
A4: No, the LM35 is not waterproof. For outdoor or liquid temperature measurements, use a waterproof sensor like the DS18B20.

By following this documentation, you can effectively integrate a temperature sensor into your projects and troubleshoot common issues.
