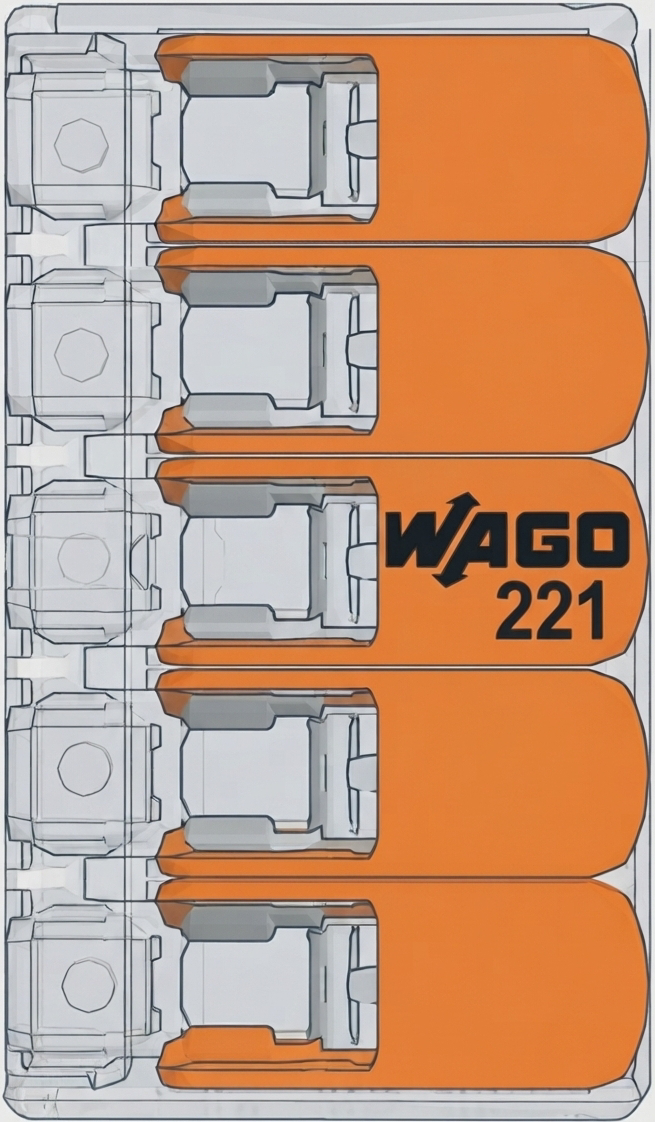

Design with Splicing connector WAGO 221 in Cirkit DesignerThe WAGO 221-415 splicing connector is a compact, versatile, and user-friendly solution for connecting electrical wires. Designed for quick and reliable splicing, it features a transparent housing that allows for visual inspection of the connections. This connector is ideal for both professional and DIY applications, offering a tool-free and secure method for joining solid, stranded, or fine-stranded wires.
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Open Project in Cirkit Designer
This circuit is an automated irrigation system controlled by an ESP32 microcontroller. It uses soil moisture sensors and a DHT22 sensor to monitor environmental conditions, and controls water pumps and solenoid valves via a relay module to manage water distribution. The system also includes an RTC module for time-based operations and connects to a WiFi network for remote monitoring and control.
Open Project in Cirkit Designer
This circuit is designed to monitor environmental conditions and control peripheral devices. It features light and temperature/humidity sensing, visual output on an OLED display, and actuation of a fan, water pumps, and a stepper motor. Power management and distribution are facilitated by splicing connectors, and the system is controlled by an Arduino UNO, which currently has placeholder code for customization.
Open Project in Cirkit Designer
This circuit uses an ESP32 microcontroller to control three WS2812 RGB LED strips. The ESP32 is powered by a 5V power supply, and the LED strips receive their power and ground connections through splicing connectors. The ESP32 sends data signals to each LED strip to control their lighting patterns.
Open Project in Cirkit DesignerThe WAGO 221-415 splicing connector is designed to meet a wide range of electrical requirements. Below are its key technical details:
| Parameter | Value |
|---|---|
| Manufacturer | WAGO |
| Part Number | 221-415 |
| Wire Type Compatibility | Solid, stranded, and fine-stranded wires |
| Wire Size Range | 0.14 mm² to 4 mm² (24–12 AWG) |
| Voltage Rating | 450 V AC/DC |
| Current Rating | 32 A |
| Operating Temperature | -20°C to +85°C |
| Housing Material | Polycarbonate (transparent) |
| Flammability Rating | UL94 V-2 |
| Number of Connections | 5 |
| Dimensions (L x W x H) | 28.3 mm x 13.1 mm x 8.3 mm |
The WAGO 221-415 does not have traditional pins but instead features five connection points for wires. Each connection point is equipped with a lever for easy insertion and secure clamping of wires. Below is a description of the connection points:
| Connection Point | Description |
|---|---|
| 1–5 | Wire insertion points for splicing up to 5 wires |
The WAGO 221-415 splicing connector is designed for ease of use, requiring no special tools. Follow the steps below to use the connector effectively:
Prepare the Wires:
Open the Lever:
Insert the Wire:
Close the Lever:
Repeat for Additional Wires:
The WAGO 221-415 can be used to connect wires from sensors, actuators, or other components to an Arduino UNO. Below is an example of how to use the connector in such a setup:
// Example: Blinking an LED connected via WAGO 221-415
// Connect the LED's positive lead to Arduino pin 13 and the negative lead to GND
// Use the WAGO 221-415 to splice wires if needed
int ledPin = 13; // Pin connected to the LED
void setup() {
pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
| Issue | Possible Cause | Solution |
|---|---|---|
| Wire slips out of the connector | Lever not fully closed | Ensure the lever is pushed down completely. |
| Poor electrical connection | Wire not fully inserted | Check that the wire is inserted to the stop. |
| Overheating of the connector | Exceeding current rating | Verify that the current does not exceed 32 A. |
| Difficulty inserting wires | Wire size outside supported range | Use wires within the 0.14 mm² to 4 mm² range. |
Q: Can the WAGO 221-415 be reused?
A: Yes, the connector is reusable. Simply lift the lever to release the wire and insert a new one.
Q: Is the connector suitable for outdoor use?
A: The WAGO 221-415 is not specifically designed for outdoor use. If used outdoors, ensure it is housed in a weatherproof enclosure.
Q: Can I connect wires of different sizes?
A: Yes, the connector supports mixing wire sizes within the specified range (0.14 mm² to 4 mm²).
Q: How can I verify a secure connection?
A: Use the transparent housing to visually inspect that the wire is fully inserted and clamped.
This concludes the documentation for the WAGO 221-415 splicing connector. For further assistance, refer to the manufacturer's datasheet or contact WAGO support.
