Introduction

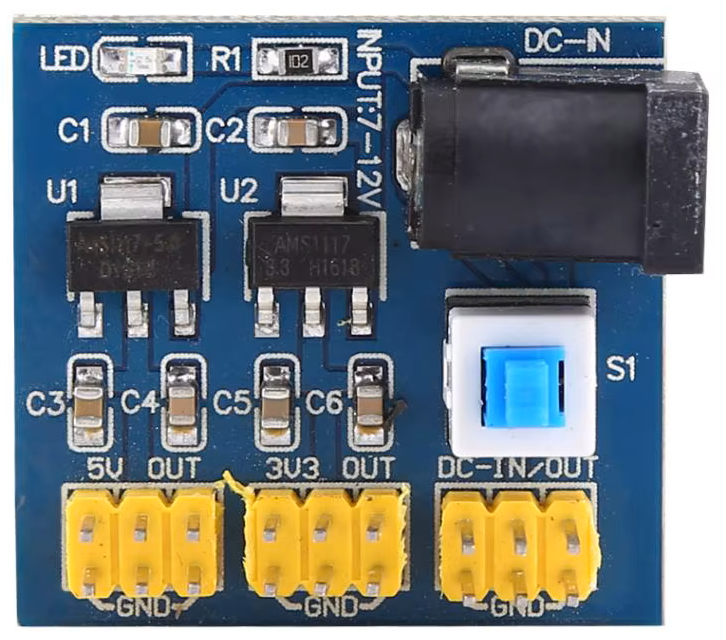

The Hailege DC-DC 12V to 3.3V 5V 12V Power Module (Manufacturer Part ID: B07Z3FPNTK) is a versatile power conversion module designed to step down a 12V input voltage to stable 3.3V, 5V, or 12V outputs. This module is ideal for powering low-voltage electronic devices and circuits, offering high efficiency and reliability. It is commonly used in embedded systems, IoT devices, microcontroller projects, and portable electronics.

Explore Projects Built with DC-DC 12V to 3.3V 5V 12V Power Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
DC-DC Converter and Relay Module Power Distribution System
Image of relay: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
Image of Breadboard: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Motor Control with Voltage Monitoring and LED Indicator
Image of ckt: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
This circuit converts AC power to DC using a bridge rectifier to drive a 12V geared motor. It also includes a TP4056 module for charging a 3.7V battery, monitored by a mini digital volt/ammeter, and an LED indicator for power status.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC-DC 12V to 3.3V 5V 12V Power Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of relay: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
DC-DC Converter and Relay Module Power Distribution System
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Breadboard: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ckt: A project utilizing DC-DC 12V to 3.3V 5V 12V Power Module in a practical application
Battery-Powered Motor Control with Voltage Monitoring and LED Indicator
This circuit converts AC power to DC using a bridge rectifier to drive a 12V geared motor. It also includes a TP4056 module for charging a 3.7V battery, monitored by a mini digital volt/ammeter, and an LED indicator for power status.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers such as Arduino, ESP32, or Raspberry Pi.
  • Supplying stable voltage to sensors, relays, and other peripherals.
  • Battery-powered projects requiring multiple voltage levels.
  • Prototyping and development of low-power electronic circuits.

Technical Specifications

Key Technical Details

Parameter Specification
Input Voltage Range 8V to 23V
Output Voltage Options 3.3V, 5V, 12V
Maximum Output Current 3A (5V output), 2A (3.3V output)
Efficiency Up to 92%
Operating Temperature -40°C to +85°C
Dimensions 45mm x 25mm x 14mm
Weight 10g

Pin Configuration and Descriptions

Pin Name Description
VIN Input voltage pin (connect to 12V power source)
GND Ground pin (common ground for input and output)
VOUT 3.3V 3.3V output pin (regulated output)
VOUT 5V 5V output pin (regulated output)
VOUT 12V 12V output pin (regulated output)

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage:

    • Connect the VIN pin to a 12V DC power source.
    • Connect the GND pin to the ground of the power source.
  2. Select the Desired Output Voltage:

    • Use the VOUT 3.3V, VOUT 5V, or VOUT 12V pins to draw the required voltage.
    • Ensure that the connected load does not exceed the maximum current rating for the selected output.
  3. Power Your Circuit:

    • Connect the output pins to your circuit or device, ensuring proper polarity.

Important Considerations and Best Practices

  • Heat Dissipation: The module may heat up under high current loads. Ensure adequate ventilation or use a heatsink if necessary.
  • Input Voltage Range: Do not exceed the input voltage range (8V to 23V) to avoid damaging the module.
  • Load Current: Ensure the connected load does not exceed the maximum current rating for the selected output voltage.
  • Polarity Protection: Double-check the polarity of the input and output connections to prevent damage.

Example: Using with Arduino UNO

The module can be used to power an Arduino UNO by providing a stable 5V output. Below is an example circuit and code:

Circuit Connection

  • Connect the VIN pin of the module to a 12V DC power source.
  • Connect the GND pin of the module to the ground of the power source.
  • Connect the VOUT 5V pin to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the module to the GND pin of the Arduino UNO.

Example Code

// Example code to blink an LED using Arduino UNO powered by the DC-DC module

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect input voltage or loose connections.
    • Solution: Verify that the input voltage is within the 8V to 23V range and check all connections.
  2. Overheating:

    • Cause: Excessive load current or poor ventilation.
    • Solution: Reduce the load current or improve ventilation around the module.
  3. Voltage Drop Under Load:

    • Cause: Load current exceeds the module's maximum rating.
    • Solution: Ensure the connected load does not exceed the maximum current rating for the selected output voltage.
  4. Module Not Working After Connection:

    • Cause: Reverse polarity or input voltage outside the specified range.
    • Solution: Check the polarity of the input connections and ensure the input voltage is within the specified range.

FAQs

Q: Can I use this module with a 9V battery?
A: Yes, the module supports input voltages as low as 8V. However, ensure the battery can supply sufficient current for your load.

Q: Can I use multiple output voltages simultaneously?
A: Yes, you can draw power from multiple output pins simultaneously, but ensure the total current does not exceed the module's capacity.

Q: Is the module protected against short circuits?
A: The module includes basic protection features, but it is recommended to avoid short circuits to prevent damage.

Q: Can I use this module to power a Raspberry Pi?
A: Yes, the 5V output can be used to power a Raspberry Pi. Ensure the current requirements of the Raspberry Pi and connected peripherals do not exceed the module's maximum output current.


This concludes the documentation for the Hailege DC-DC 12V to 3.3V 5V 12V Power Module.
