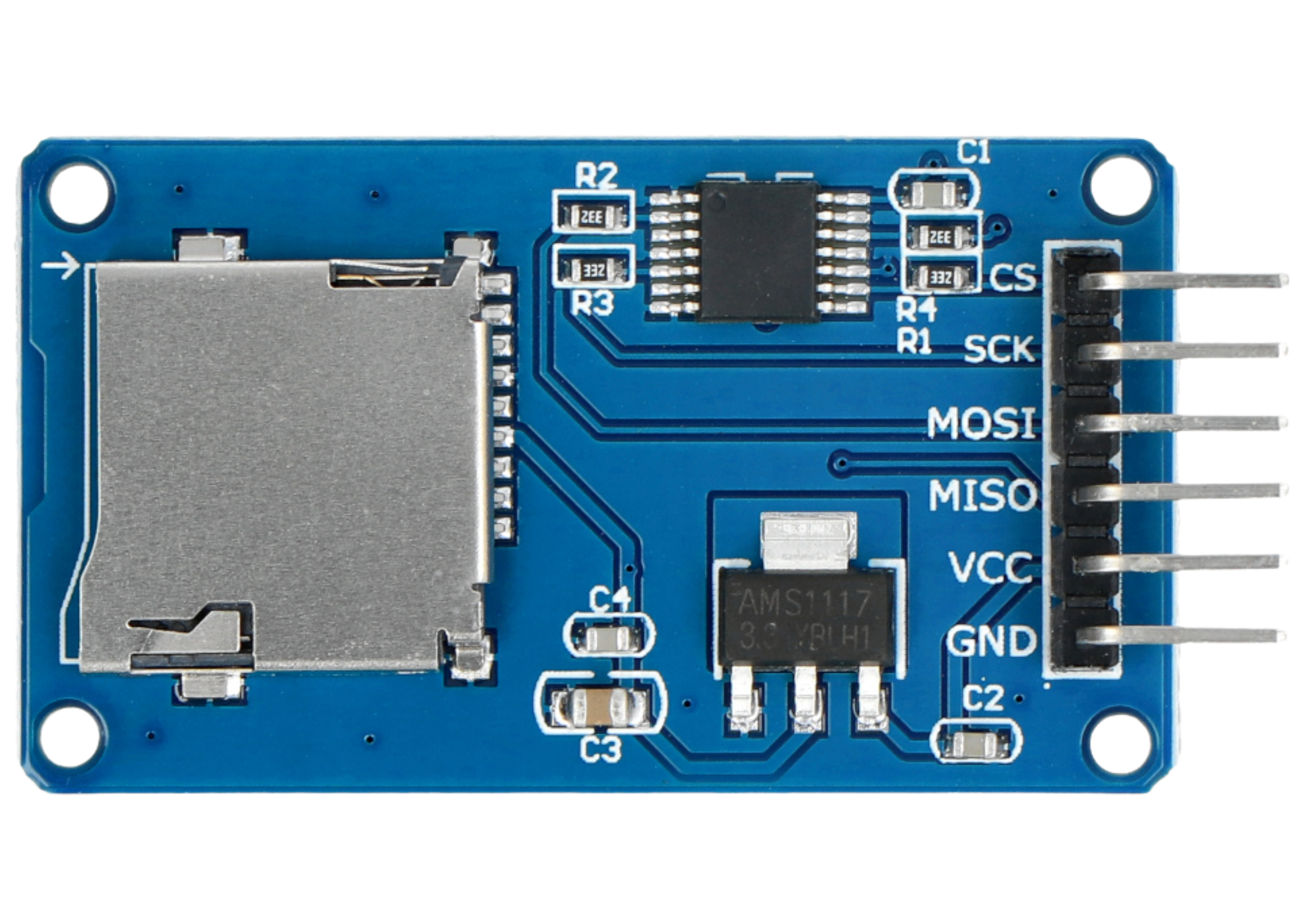

Image of MicroSD Card ModuleDesign with MicroSD Card Module in Cirkit Designer

Introduction

The Catalex MicroSD SPI Module is a compact and efficient solution for interfacing MicroSD cards with microcontrollers or other electronic devices. This module enables data storage and retrieval, making it ideal for applications requiring large amounts of data logging, file storage, or multimedia handling. It uses the SPI (Serial Peripheral Interface) protocol for communication, ensuring compatibility with a wide range of microcontrollers, including Arduino, ESP32, and Raspberry Pi.

Explore Projects Built with MicroSD Card Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino UNO SD Card Data Logger: A project utilizing MicroSD Card Module in a practical application
Arduino UNO SD Card Data Logger

This circuit consists of an Arduino UNO connected to an SD card module. The Arduino provides power and ground to the SD module and interfaces with it using SPI communication through digital pins D10 (CS), D11 (MOSI), D12 (MISO), and D13 (SCK). The setup is intended for reading from or writing to an SD card using the Arduino.

Open Project in Cirkit Designer
Image of Heltec LoRa V2 with SD Card Data Logging: A project utilizing MicroSD Card Module in a practical application
Heltec LoRa V2 with SD Card Data Logging

This circuit connects an SD card module to a Heltec LoRa V2 microcontroller for data storage and retrieval. The SD module is interfaced with the microcontroller via SPI communication, utilizing the CS, SCK, MOSI, and MISO pins. Power is supplied to the SD module from the microcontroller's 5V output, and both modules share a common ground.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The following table outlines the key technical details of the Catalex MicroSD SPI Module:

Parameter Specification
Manufacturer Catalex
Part ID MicroSD SPI Module
Operating Voltage 3.3V to 5V
Communication Protocol SPI (Serial Peripheral Interface)
Supported Card Types MicroSD, MicroSDHC
File System Support FAT16, FAT32
Dimensions 42mm x 24mm x 12mm
Operating Temperature -25°C to 85°C

Pin Configuration and Descriptions

The module has a 6-pin interface for connecting to a microcontroller. The pinout is as follows:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (3.3V to 5V)
3 MISO Master In Slave Out - SPI data output from the module to the microcontroller
4 MOSI Master Out Slave In - SPI data input from the microcontroller to the module
5 SCK Serial Clock - SPI clock signal
6 CS Chip Select - Used to enable or disable the module during SPI communication

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. SPI Connections: Connect the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on your microcontroller.
  3. MicroSD Card: Insert a formatted MicroSD card (FAT16 or FAT32) into the module's card slot.
  4. Pull-Up Resistors: Ensure that the SPI lines have appropriate pull-up resistors if required by your microcontroller.
  5. Software Library: Use a compatible library (e.g., Arduino SD library) to initialize and communicate with the module.

Important Considerations and Best Practices

Example Code for Arduino UNO

Below is an example of how to use the Catalex MicroSD SPI Module with an Arduino UNO:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the MicroSD module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing MicroSD card...");

  // Initialize the SD card
  if (!SD.begin(chipSelect)) {
    Serial.println("Card initialization failed!");
    return; // Stop if the card cannot be initialized
  }

  Serial.println("Card initialized successfully.");

  // Create or open a file on the MicroSD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, MicroSD card!"); // Write data to the file
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to example.txt");
  } else {
    Serial.println("Error opening example.txt");
  }
}

void loop() {
  // Nothing to do here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. MicroSD Card Not Detected:

    • Ensure the card is properly inserted into the slot.
    • Verify that the card is formatted as FAT16 or FAT32.
    • Check the CS pin connection and ensure it matches the pin defined in the code.
  2. Card Initialization Fails:

    • Confirm that the power supply is stable and within the specified range (3.3V to 5V).
    • Check the SPI connections (MISO, MOSI, SCK, CS) for loose or incorrect wiring.
    • Use a different MicroSD card to rule out card compatibility issues.
  3. Data Corruption:

    • Avoid removing the card while the module is powered.
    • Always close files after writing to ensure data is saved properly.
  4. Slow Data Transfer:

    • Use a higher-quality MicroSD card with a faster speed class.
    • Optimize your code to reduce unnecessary delays during SPI communication.

FAQs

Q: Can this module work with 3.3V microcontrollers like ESP32?
A: Yes, the module is compatible with both 3.3V and 5V systems, thanks to its onboard voltage regulator and level shifters.

Q: What is the maximum capacity of MicroSD card supported?
A: The module supports MicroSD and MicroSDHC cards, typically up to 32GB. Larger cards may work if formatted to FAT32, but compatibility is not guaranteed.

Q: Can I use multiple MicroSD modules on the same SPI bus?
A: Yes, you can use multiple modules by assigning a unique CS pin to each module and managing them in your code.

Q: Is the module hot-swappable?
A: No, it is not recommended to insert or remove the MicroSD card while the module is powered, as this may corrupt data or damage the card.
