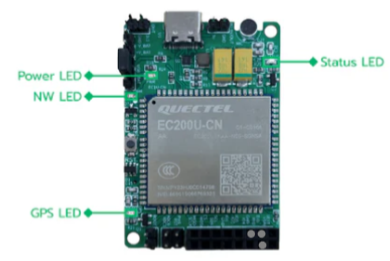

The Quectel EC200U-CN is a GSM module designed for reliable and efficient communication in 2G digital cellular networks. It supports voice and data services, making it an essential component for IoT applications, mobile communication systems, and embedded systems requiring wireless connectivity. The EC200U-CN is compact, power-efficient, and highly versatile, making it suitable for a wide range of applications.
Explore Projects Built with GSM
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a GSM-based communication system using an Arduino Nano, a SIM800L GSM module, and a 4x4 keypad. It allows the user to send SMS, make and receive calls, and manage messages through keypad inputs, with audio input and output handled by a condenser microphone and a loudspeaker, respectively.
This circuit consists of an Arduino UNO connected to a SIM 800L GSM module. The Arduino UNO communicates with the SIM 800L module via software serial to send and receive SMS messages, with the Arduino providing power and ground connections to the GSM module.
This circuit features an Arduino UNO microcontroller interfaced with a SIM 800L GSM module for communication purposes. The SIM 800L is powered by an LM2596 step-down module, which provides the necessary voltage regulation. The Arduino communicates with the SIM 800L via digital pins D2 and D3 for RX and TX respectively.
This circuit integrates an Arduino UNO with a Sim A7670c GSM module and a 5V battery to enable SMS communication and control a relay based on input from a switch and a push button. The Arduino handles the logic for sending SMS notifications and toggling the relay, while the GSM module facilitates the SMS functionality.
The Quectel EC200U-CN module is designed to meet the requirements of modern GSM communication systems. Below are its key technical specifications:
Key Technical Details
Parameter
Specification
Manufacturer
Quectel
Part Number
EC200U-CN
Network Standard
GSM (2G)
Frequency Bands
GSM 850/900/1800/1900 MHz
Data Rate
Up to 85.6 kbps (GPRS)
Operating Voltage
3.3V to 4.2V
Power Consumption
Idle: ~1.5mA, Active: ~350mA
Operating Temperature
-40°C to +85°C
Dimensions
19.9mm × 23.6mm × 2.2mm
Interface
UART, USB, GPIO, I2C, SPI
Pin Configuration and Descriptions
The EC200U-CN module has multiple pins for communication and power. Below is the pin configuration:
Pin Number
Pin Name
Description
1
VCC
Power supply input (3.3V to 4.2V)
2
GND
Ground
3
TXD
UART Transmit Data
4
RXD
UART Receive Data
5
RESET
Reset input (active low)
6
PWRKEY
Power-on key (active low)
7
GPIO1
General-purpose I/O pin
8
GPIO2
General-purpose I/O pin
9
USB_DP
USB Data Positive
10
USB_DM
USB Data Negative
Usage Instructions
The Quectel EC200U-CN GSM module can be integrated into a circuit to enable wireless communication. Below are the steps and best practices for using the module:
How to Use the Component in a Circuit
Power Supply: Connect the VCC pin to a stable 3.3V to 4.2V power source and the GND pin to ground.
UART Communication: Connect the TXD and RXD pins to the corresponding UART pins of your microcontroller or development board (e.g., Arduino UNO).
Power On: Use the PWRKEY pin to turn on the module. Pull the pin low for at least 1 second to power on the module.
Antenna Connection: Attach a compatible GSM antenna to the module for optimal signal reception.
SIM Card: Insert a valid SIM card into the module's SIM card slot.
Communication: Use AT commands to configure and communicate with the module. These commands can be sent via UART.
Important Considerations and Best Practices
Ensure the power supply is stable and within the specified voltage range to avoid damaging the module.
Use proper decoupling capacitors near the VCC pin to minimize noise.
Place the GSM antenna away from other components to reduce interference.
Handle the module carefully to avoid damage to the pins or PCB.
Use a level shifter if interfacing with a 5V microcontroller, as the module operates at 3.3V logic levels.
Example Code for Arduino UNO
Below is an example of how to use the EC200U-CN module with an Arduino UNO to send an SMS:
#include <SoftwareSerial.h>
// Define RX and TX pins for SoftwareSerial
SoftwareSerial gsmSerial(10, 11); // RX = pin 10, TX = pin 11
void setup() {
// Initialize serial communication
Serial.begin(9600); // For debugging
gsmSerial.begin(9600); // For GSM module communication
Serial.println("Initializing GSM module...");
// Power on the GSM module
pinMode(9, OUTPUT); // PWRKEY pin connected to Arduino pin 9
digitalWrite(9, LOW);
delay(1000); // Hold PWRKEY low for 1 second
digitalWrite(9, HIGH);
delay(5000); // Wait for the module to initialize
// Send AT command to check communication
gsmSerial.println("AT");
delay(1000);
while (gsmSerial.available()) {
Serial.write(gsmSerial.read());
}
// Send SMS
gsmSerial.println("AT+CMGF=1"); // Set SMS mode to text
delay(1000);
gsmSerial.println("AT+CMGS=\"+1234567890\""); // Replace with recipient's number
delay(1000);
gsmSerial.println("Hello, this is a test SMS from EC200U-CN!"); // SMS content
delay(1000);
gsmSerial.write(26); // Send Ctrl+Z to send the SMS
}
void loop() {
// No actions in loop
}
Troubleshooting and FAQs
Common Issues and Solutions
Module Not Powering On
Ensure the PWRKEY pin is pulled low for at least 1 second during power-on.
Verify the power supply voltage is within the 3.3V to 4.2V range.
No Response to AT Commands
Check the UART connections (TXD and RXD) between the module and the microcontroller.
Ensure the baud rate of the module matches the microcontroller's UART settings.
Weak or No Signal
Verify the GSM antenna is properly connected and positioned.
Check the SIM card for proper insertion and activation.
SMS Not Sending
Ensure the module is registered on the network (use the AT+CREG? command to check).
Verify the recipient's phone number format and ensure the SIM card has sufficient balance.
FAQs
Q: Can the EC200U-CN module be used with 3G or 4G networks?
A: No, the EC200U-CN is designed for GSM (2G) networks only.
Q: What is the maximum data rate supported by the module?
A: The module supports a maximum data rate of 85.6 kbps using GPRS.
Q: Can I use the module with a 5V microcontroller?
A: Yes, but you must use a level shifter to convert the 5V logic levels to 3.3V.
Q: How do I check the signal strength?
A: Use the AT+CSQ command to check the signal strength. The response will indicate the signal quality.
This documentation provides a comprehensive guide to using the Quectel EC200U-CN GSM module effectively. For further assistance, refer to the manufacturer's datasheet or contact technical support.
