How to Use ESP32 38 PINS: Examples, Pinouts, and Specs

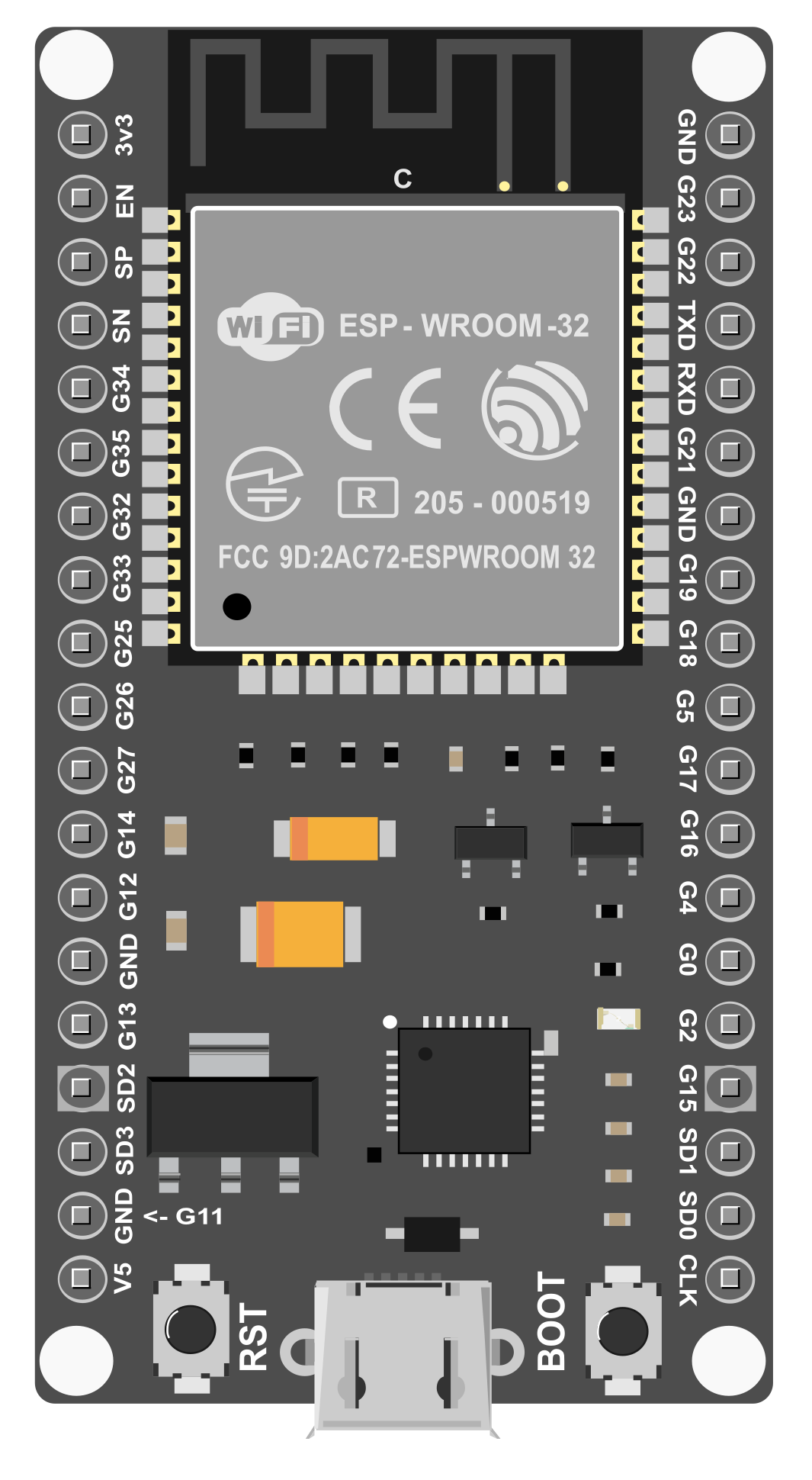

The ESP32 38 Pins is a versatile microcontroller designed for IoT applications and embedded systems. It features integrated Wi-Fi and Bluetooth capabilities, making it a powerful solution for wireless communication. With 38 GPIO pins, the ESP32 offers extensive input/output functionality, enabling developers to connect a wide range of sensors, actuators, and peripherals. Its high performance, low power consumption, and rich feature set make it a popular choice for smart devices, home automation, and industrial IoT projects.

• IoT devices and smart home systems
• Wireless sensor networks
• Wearable technology
• Robotics and automation
• Data logging and monitoring systems
• Prototyping and educational projects

• Microcontroller: Tensilica Xtensa LX6 dual-core processor
• Clock Speed: Up to 240 MHz
• Flash Memory: 4 MB (varies by model)
• SRAM: 520 KB
• Wi-Fi: 802.11 b/g/n
• Bluetooth: v4.2 BR/EDR and BLE
• Operating Voltage: 3.3V
• GPIO Pins: 38 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART)
• ADC Channels: 18 (12-bit resolution)
• DAC Channels: 2
• PWM Channels: 16
• Communication Protocols: UART, SPI, I2C, I2S, CAN
• Power Consumption: Ultra-low power in deep sleep mode (~10 µA)
• Operating Temperature: -40°C to 125°C

The ESP32 38 Pins module has 38 GPIO pins, each with multiple functions. Below is a summary of the pin configuration:

Note: Some pins have specific functions during boot or programming. Refer to the ESP32 datasheet for detailed pin multiplexing information.

1. Powering the ESP32:

   • Connect the 3.3V pin to a regulated 3.3V power source.
   • Ensure the ground (GND) pin is connected to the circuit's ground.

2. Programming the ESP32:

   • Use a USB-to-serial adapter or a development board with a built-in USB interface.
   • Connect the ESP32 to your computer via USB.
   • Install the necessary drivers and configure the Arduino IDE or ESP-IDF for ESP32 development.

3. Connecting Peripherals:

   • Use GPIO pins to connect sensors, actuators, or other devices.
   • Configure the pins in your code for the desired functionality (e.g., input, output, ADC, PWM).

4. Uploading Code:

   • Write your program in the Arduino IDE or ESP-IDF.
   • Select the correct board and port in the IDE.
   • Press the "Upload" button to flash the code to the ESP32.

• Voltage Levels: The ESP32 operates at 3.3V. Avoid applying 5V to GPIO pins to prevent damage.
• Boot Mode: GPIO0 must be pulled low during programming. Use a pull-up resistor when not in use.
• Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
• Deep Sleep Mode: Utilize deep sleep mode for low-power applications to extend battery life.

Below is an example of using the ESP32 to read data from a DHT11 temperature and humidity sensor and send it to the Arduino Serial Monitor:

#include <WiFi.h>
#include <DHT.h>

// Define DHT sensor type and pin
#define DHTPIN 4       // GPIO4 connected to DHT11 data pin
#define DHTTYPE DHT11  // DHT11 sensor type

DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(115200); // Initialize serial communication
  dht.begin();          // Initialize the DHT sensor
  Serial.println("ESP32 DHT11 Example");
}

void loop() {
  // Read temperature and humidity values
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the values to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print("%  Temperature: ");
  Serial.print(temperature);
  Serial.println("°C");

  delay(2000); // Wait 2 seconds before the next reading
}

Note: Ensure the DHT11 sensor is connected to the correct GPIO pin and powered with 3.3V.

1. ESP32 Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for your operating system.

2. Code Upload Fails:

   • Check that GPIO0 is pulled low during programming.
   • Verify the correct board and port are selected in the Arduino IDE.

3. Wi-Fi Connection Issues:

   • Double-check the SSID and password in your code.
   • Ensure the ESP32 is within range of the Wi-Fi router.

4. Unstable Operation:

   • Use a stable 3.3V power supply with sufficient current (at least 500 mA).
   • Add decoupling capacitors near the power pins to reduce noise.

Q: Can the ESP32 operate at 5V?
A: No, the ESP32 operates at 3.3V. Applying 5V to GPIO pins can damage the chip.

Q: How do I reset the ESP32?
A: Press the EN (Enable) button on the module to reset the ESP32.

Q: Can I use the ESP32 with a 5V sensor?
A: Yes, but you will need a level shifter to safely interface the 5V sensor with the 3.3V GPIO pins.

Q: How do I enter deep sleep mode?
A: Use the esp_deep_sleep_start() function in your code. Refer to the ESP-IDF documentation for details.

By following this documentation, you can effectively utilize the ESP32 38 Pins for your IoT and embedded system projects.
