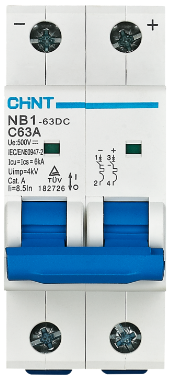

Image of DC MCB 3A
Cirkit Designer LogoDesign with DC MCB 3A in Cirkit Designer

Introduction

The DC MCB 3A by CHINT is a Direct Current Miniature Circuit Breaker designed to protect electrical circuits from overloads and short circuits. With a current rating of 3 Amperes, this component is ideal for low-current DC applications, ensuring safety and reliability in electrical systems. Its compact design makes it suitable for use in residential, commercial, and industrial environments.

Explore Projects Built with DC MCB 3A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
Image of LAMP CONTROLE WITH MCB: A project utilizing DC MCB 3A in a practical application
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC Bulb Control Circuit with Flush Switch and MCB Protection
Image of LAMP CONTROLE WITH MCB 1: A project utilizing DC MCB 3A in a practical application
This circuit is designed to control an AC bulb using a flush switch. The AC power supply is connected through an MCB (Miniature Circuit Breaker) for protection, and the flush switch acts as an on/off control for the bulb. There is no microcontroller or embedded code involved in this simple power control circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
Image of CDP: A project utilizing DC MCB 3A in a practical application
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Indicator System with Power Stabilizer and Measurement Meters
Image of MEMEK: A project utilizing DC MCB 3A in a practical application
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC MCB 3A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of LAMP CONTROLE WITH MCB: A project utilizing DC MCB 3A in a practical application
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LAMP CONTROLE WITH MCB 1: A project utilizing DC MCB 3A in a practical application
AC Bulb Control Circuit with Flush Switch and MCB Protection
This circuit is designed to control an AC bulb using a flush switch. The AC power supply is connected through an MCB (Miniature Circuit Breaker) for protection, and the flush switch acts as an on/off control for the bulb. There is no microcontroller or embedded code involved in this simple power control circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CDP: A project utilizing DC MCB 3A in a practical application
Solar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MEMEK: A project utilizing DC MCB 3A in a practical application
LED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Protection of DC circuits in solar power systems
  • Battery protection in renewable energy setups
  • DC motor and pump protection
  • Electric vehicle charging stations
  • Telecommunications and data center power systems

Technical Specifications

The following table outlines the key technical details of the DC MCB 3A:

Parameter Specification
Manufacturer CHINT
Part ID DC MCB 3A
Rated Current 3 Amperes
Rated Voltage 250V DC (maximum)
Breaking Capacity 6 kA
Number of Poles 1P (Single Pole)
Tripping Curve C Curve (standard for most loads)
Operating Temperature -5°C to +40°C
Mounting Type DIN Rail (35mm standard)
Dimensions (L x W x H) 18mm x 75mm x 80mm
Weight ~120 grams
Compliance Standards IEC/EN 60947-2, IEC/EN 60898-2

Pin Configuration and Descriptions

The DC MCB 3A does not have traditional pins but instead features terminal connections for input and output wiring. The table below describes the terminals:

Terminal Description
Line (Input) Connects to the positive terminal of the DC power source.
Load (Output) Connects to the positive terminal of the load.

Note: Ensure proper polarity when connecting the MCB to avoid malfunction or damage.

Usage Instructions

How to Use the DC MCB 3A in a Circuit

  1. Mounting the MCB:

    • Secure the MCB onto a standard 35mm DIN rail in your distribution box or panel.
    • Ensure the MCB is firmly locked into place to prevent movement during operation.

  2. Wiring the MCB:

    • Connect the Line (Input) terminal to the positive terminal of the DC power source.
    • Connect the Load (Output) terminal to the positive terminal of the load.
    • Use appropriately rated wires (e.g., 1.5mm² to 2.5mm²) for the connections.

  3. Testing the Circuit:

    • After wiring, switch the MCB to the "ON" position.
    • Verify that the circuit operates correctly and that the MCB trips under overload or short-circuit conditions.

  4. Resetting the MCB:

    • If the MCB trips, identify and resolve the cause of the fault (e.g., overload or short circuit).
    • Once resolved, switch the MCB back to the "ON" position to restore power.

Important Considerations and Best Practices

  • Polarity: Always ensure correct polarity when connecting the MCB to avoid damage.
  • Load Compatibility: Verify that the connected load does not exceed the rated current of 3A.
  • Environmental Conditions: Avoid installing the MCB in environments with excessive moisture, dust, or temperatures outside the specified range (-5°C to +40°C).
  • Periodic Maintenance: Inspect the MCB periodically for signs of wear, loose connections, or damage.

Example: Using the DC MCB 3A with a Solar Panel System

In a solar panel system, the DC MCB 3A can be used to protect the circuit between the solar charge controller and the battery. Below is an example wiring diagram:

Solar Panel --> Charge Controller --> DC MCB 3A --> Battery

This setup ensures that the battery is protected from overcurrent or short circuits.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
MCB trips frequently Overload or short circuit in the circuit Check the load and wiring for faults.
MCB does not trip under fault conditions Faulty MCB or incorrect wiring Verify wiring and replace the MCB if needed.
MCB does not switch to "ON" position Internal damage or persistent fault Inspect the circuit and replace the MCB if necessary.
Excessive heating of the MCB Loose connections or high ambient temperature Tighten connections and ensure proper ventilation.

FAQs

  1. Can the DC MCB 3A be used for AC circuits?
    No, this MCB is specifically designed for DC applications. Using it in AC circuits may result in improper operation or damage.

  2. What is the significance of the C Curve tripping characteristic?
    The C Curve is suitable for general-purpose loads with moderate inrush currents, such as motors and transformers.

  3. How do I know if the MCB is faulty?
    If the MCB does not trip under fault conditions or cannot be reset, it may be faulty and should be replaced.

  4. Can I use the DC MCB 3A for higher current loads?
    No, the MCB is rated for a maximum current of 3A. For higher loads, select an MCB with an appropriate current rating.

By following this documentation, users can safely and effectively integrate the CHINT DC MCB 3A into their DC electrical systems.
