How to Use Battery Holders: Examples, Pinouts, and Specs

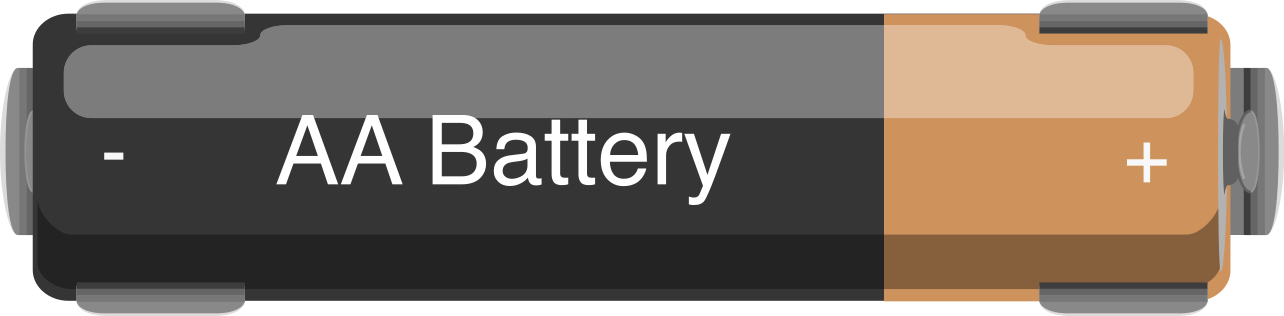

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are available in different configurations, including single-cell and multi-cell holders. Battery holders are essential for portable electronic devices, DIY projects, and prototyping, as they provide a reliable and reusable power source connection.

• Portable electronic devices (e.g., flashlights, remote controls)
• DIY electronics and prototyping
• Robotics and small motorized projects
• Educational kits and STEM projects
• Backup power systems

• Material: Typically made of plastic (ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel).
• Voltage Rating: Depends on the number and type of batteries used (e.g., 1.5V per AA/AAA cell, 9V for 9V battery holders).
• Current Rating: Varies based on the battery type and holder design, typically up to 2-3A for standard holders.
• Mounting Options: Panel mount, PCB mount, or free-standing with wires/leads.
• Battery Sizes Supported: AA, AAA, C, D, 9V, coin cells (CR2032, CR2025, etc.).

Battery holders may have different connection types depending on their design. Below is a table for common configurations:

1. Select the Appropriate Holder: Choose a battery holder that matches the size and number of batteries required for your circuit.
2. Insert Batteries: Place the batteries into the holder, ensuring correct polarity (match the "+" and "-" markings).
3. Connect to Circuit:
   • For wire lead holders, connect the red wire to the positive terminal of your circuit and the black wire to the negative terminal.
   • For PCB mount holders, solder the pins to the corresponding pads on your PCB.
   • For snap connectors, attach the male and female snaps to the 9V battery terminals.
4. Secure the Holder: Use screws, adhesive, or clips to mount the holder securely in your project.

• Polarity: Always double-check the polarity of the batteries and connections to avoid damage to your circuit.
• Current Rating: Ensure the battery holder can handle the current draw of your circuit.
• Mounting: Secure the holder to prevent movement or disconnection during operation.
• Battery Replacement: Design your project for easy access to the holder for battery replacement.
• Short Circuit Protection: Avoid shorting the terminals of the holder, as this can damage the batteries or the holder.

Below is an example of connecting a 4xAA battery holder to an Arduino UNO to power it via the VIN pin:

/* Example: Powering Arduino UNO with a 4xAA Battery Holder
   - Ensure the battery holder provides a voltage between 6V and 12V.
   - Connect the red wire (positive) to the VIN pin on the Arduino.
   - Connect the black wire (negative) to the GND pin on the Arduino.
*/

void setup() {
  // No setup required for power connection
}

void loop() {
  // Your Arduino code goes here
}

1. Loose Connections:

   • Problem: The battery holder does not maintain a secure connection.
   • Solution: Check that the batteries are properly seated and the terminals are clean. Secure the holder firmly in place.

2. Incorrect Polarity:

   • Problem: The circuit does not work, or components are damaged.
   • Solution: Verify the polarity of the batteries and connections before powering the circuit.

3. Overheating:

   • Problem: The battery holder or wires become hot during operation.
   • Solution: Ensure the current draw of your circuit does not exceed the holder's rating. Use thicker wires if necessary.

4. Corrosion on Contacts:

   • Problem: The battery holder contacts are corroded, causing poor conductivity.
   • Solution: Clean the contacts with isopropyl alcohol or replace the holder if corrosion is severe.

Q1: Can I use rechargeable batteries with a battery holder?
A1: Yes, most battery holders are compatible with rechargeable batteries, but ensure the voltage and size match your circuit requirements.

Q2: How do I know if my battery holder is suitable for outdoor use?
A2: Look for holders with weatherproof or sealed designs if you plan to use them outdoors.

Q3: Can I connect multiple battery holders in series or parallel?
A3: Yes, you can connect holders in series to increase voltage or in parallel to increase capacity. Ensure proper wiring and polarity.

Q4: What should I do if my battery holder breaks?
A4: Replace the holder, as damaged holders may not provide reliable connections or could cause short circuits.
