How to Use uPesy Wroom DevKit V2: Examples, Pinouts, and Specs

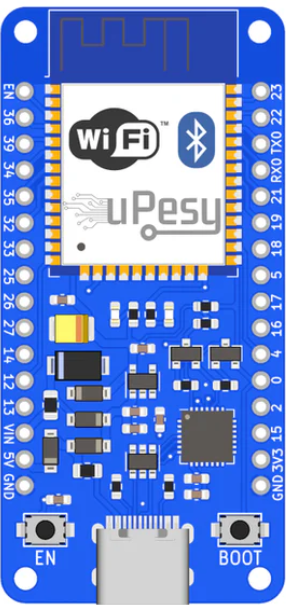

Image of uPesy Wroom DevKit V2
Cirkit Designer LogoDesign with uPesy Wroom DevKit V2 in Cirkit Designer

Introduction

The uPesy Wroom DevKit V2 is a compact and versatile development board built around the ESP32-WROOM-32 module. Designed for Internet of Things (IoT) applications, it offers robust Wi-Fi and Bluetooth connectivity, making it an excellent choice for prototyping and developing smart devices. The board features multiple GPIO pins, enabling seamless integration with sensors, actuators, and other peripherals.

Explore Projects Built with uPesy Wroom DevKit V2

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing uPesy Wroom DevKit V2 in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Arduino UNO Serial Communication Interface
Image of ESP32 Arduino COM SErial: A project utilizing uPesy Wroom DevKit V2 in a practical application
This circuit integrates an ESP32 Wroom Dev Kit and an Arduino UNO, connected via their TXD/RXD pins for serial communication and sharing a common ground. Both microcontrollers are programmed with basic setup and loop functions, indicating a potential for further development of communication or control tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

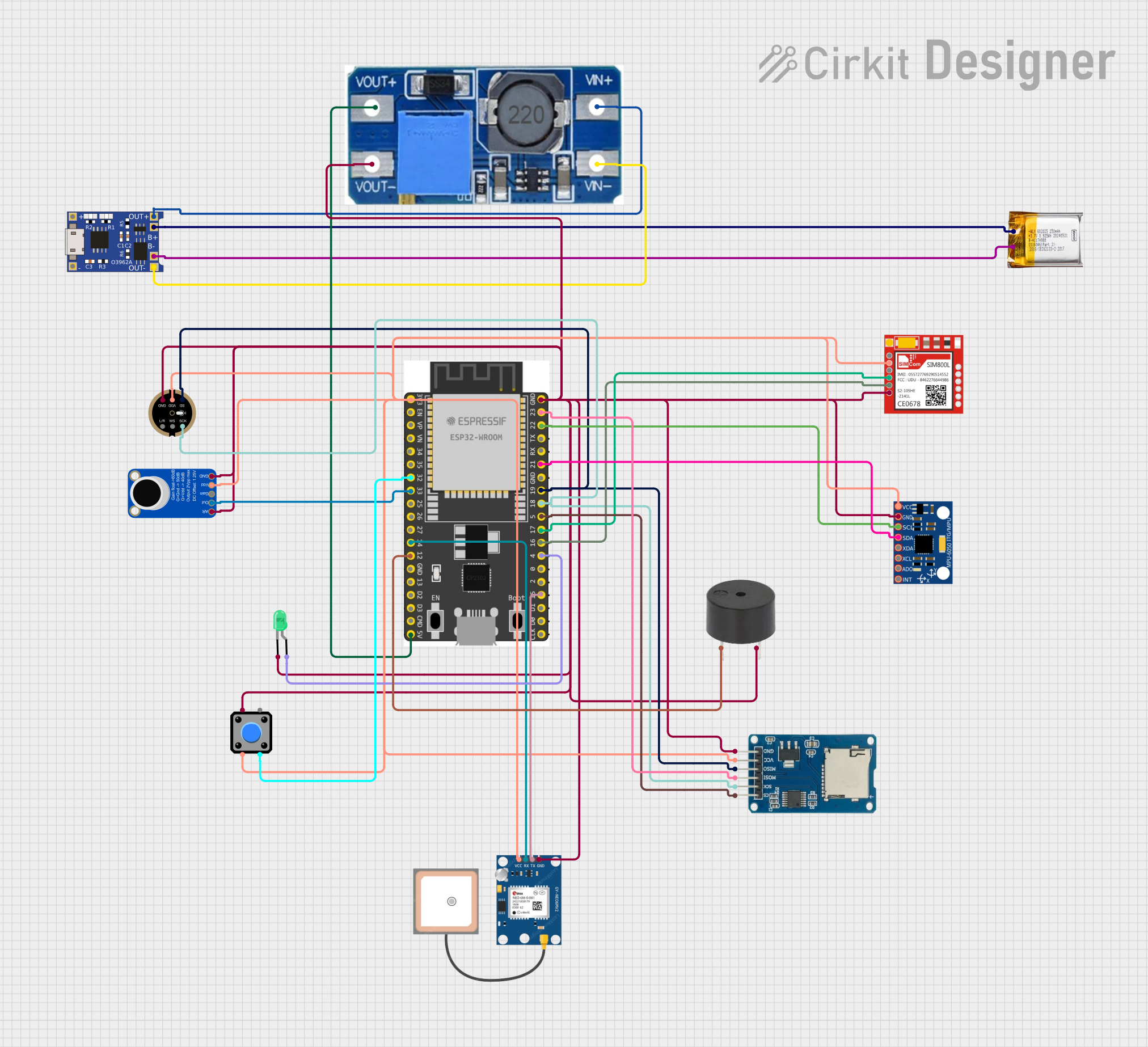

ESP32-Based Portable Multi-Functional Tracker with GSM, GPS, and Audio Recording
