How to Use Step down Buck converter: Examples, Pinouts, and Specs

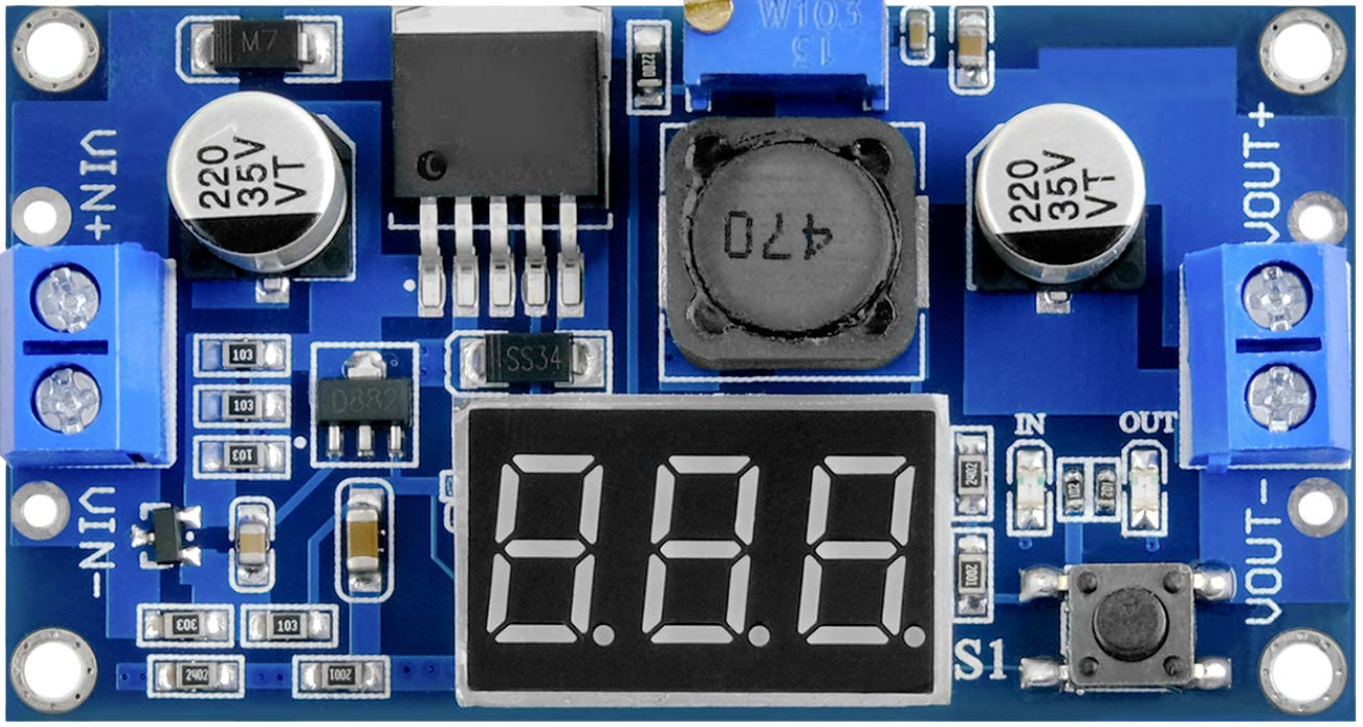

Image of Step down Buck converter
Cirkit Designer LogoDesign with Step down Buck converter in Cirkit Designer

Introduction

The Step Down Buck Converter by AC Delivery is a highly efficient DC-DC power converter designed to step down a higher input voltage to a lower output voltage while increasing the current. This component is widely used in applications requiring efficient power management, such as battery-powered devices, embedded systems, and portable electronics. Its compact design and high efficiency make it an essential component for modern electronic circuits.

Explore Projects Built with Step down Buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing Step down Buck converter in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing Step down Buck converter in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing Step down Buck converter in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing Step down Buck converter in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Step down Buck converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing Step down Buck converter in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing Step down Buck converter in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing Step down Buck converter in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing Step down Buck converter in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers and sensors from higher voltage sources
  • Battery charging circuits
  • Voltage regulation in portable devices
  • LED drivers
  • Renewable energy systems (e.g., solar panels)

Technical Specifications

Below are the key technical details of the AC Delivery Step Down Buck Converter:

Parameter Value
Input Voltage Range 4.5V to 28V
Output Voltage Range 0.8V to 20V (adjustable)
Maximum Output Current 3A
Efficiency Up to 95%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions 22mm x 17mm x 4mm

Pin Configuration and Descriptions

The Step Down Buck Converter typically has the following pin configuration:

Pin Name Description
VIN Input voltage pin. Connect the higher voltage source here (e.g., battery or adapter).
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides the stepped-down voltage to the load.
ADJ (optional) Adjustment pin. Used to set the output voltage (if adjustable).

Usage Instructions

How to Use the Step Down Buck Converter in a Circuit

  1. Connect the Input Voltage (VIN):

    • Attach the positive terminal of your power source to the VIN pin.
    • Ensure the input voltage is within the specified range (4.5V to 28V).
  2. Connect the Ground (GND):

    • Connect the GND pin to the ground of your circuit.
  3. Set the Output Voltage (if adjustable):

    • If the converter has an adjustable output, use the onboard potentiometer or ADJ pin to set the desired output voltage.
    • Use a multimeter to measure the output voltage while adjusting.
  4. Connect the Load:

    • Attach the load (e.g., microcontroller, sensor, or other devices) to the VOUT pin.
    • Ensure the load does not exceed the maximum output current (3A).
  5. Power On:

    • Turn on the input power source and verify the output voltage using a multimeter.

Important Considerations and Best Practices

  • Heat Dissipation: Ensure proper ventilation or use a heatsink if the converter operates near its maximum current rating.
  • Input Voltage: Always keep the input voltage within the specified range to avoid damaging the converter.
  • Output Filtering: For sensitive applications, consider adding a capacitor at the output to reduce noise.
  • Polarity: Double-check the polarity of connections to avoid short circuits or damage.

Example: Using the Buck Converter with an Arduino UNO

Below is an example of how to use the Step Down Buck Converter to power an Arduino UNO from a 12V source:

Circuit Connections

  • Connect the 12V source to the VIN pin of the Buck Converter.
  • Adjust the output voltage to 5V using the onboard potentiometer.
  • Connect the VOUT pin of the Buck Converter to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the Buck Converter to the GND pin of the Arduino UNO.

Sample Arduino Code

// Example code to blink an LED using Arduino UNO powered by the Buck Converter
// Ensure the Buck Converter is set to output 5V before connecting to the Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect input voltage or loose connections.
    • Solution: Verify the input voltage is within the specified range and check all connections.
  2. Overheating:

    • Cause: Excessive load current or poor ventilation.
    • Solution: Reduce the load current or improve heat dissipation using a heatsink or fan.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input power or noise in the circuit.
    • Solution: Add input and output capacitors to stabilize the voltage.
  4. Load Not Powering On:

    • Cause: Output voltage not set correctly.
    • Solution: Use a multimeter to adjust the output voltage to the required level.

FAQs

Q1: Can I use the Buck Converter to power a Raspberry Pi?
A1: Yes, but ensure the output voltage is set to 5V and the current rating meets the Raspberry Pi's requirements.

Q2: What happens if I exceed the maximum input voltage?
A2: Exceeding the input voltage range can permanently damage the converter. Always stay within the specified range.

Q3: Can I use the Buck Converter for audio applications?
A3: Yes, but consider adding additional filtering capacitors to minimize noise in audio circuits.

Q4: Is the Buck Converter bidirectional?
A4: No, the Buck Converter is not bidirectional. It only steps down voltage from input to output.

By following this documentation, you can effectively integrate the AC Delivery Step Down Buck Converter into your projects for efficient power management.
