How to Use IR Sensor: Examples, Pinouts, and Specs

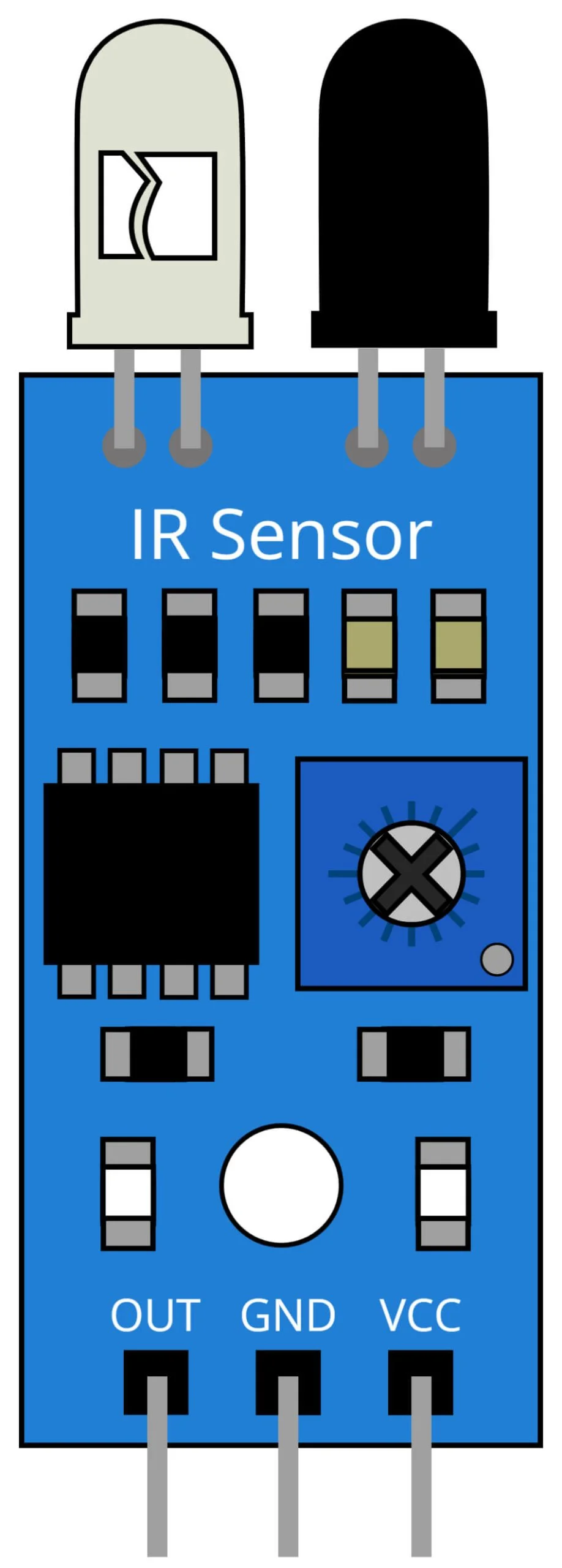

Image of IR Sensor
Cirkit Designer LogoDesign with IR Sensor in Cirkit Designer

Introduction

An IR (Infrared) sensor is an electronic device that detects infrared radiation emitted by objects. It is widely used in applications such as proximity sensing, motion detection, and remote control systems. IR sensors are versatile and can be used in both analog and digital modes, making them suitable for a variety of projects, including robotics, home automation, and security systems.

Explore Projects Built with IR Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO IR Sensor Motion Detector
Image of ir: A project utilizing IR Sensor in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing IR Sensor in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based IR Sensor Object Detection System
Image of IR SENSOR: A project utilizing IR Sensor in a practical application
This circuit consists of an Arduino UNO connected to an infrared (IR) sensor. The Arduino provides 5V power and ground to the IR sensor and reads its output signal on digital pin D6. The embedded code on the Arduino is configured to serially output a message indicating the presence or absence of an object based on the IR sensor's detection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based IR Sensor and OLED Display System
Image of Tachometer Using IR sensor: A project utilizing IR Sensor in a practical application
This circuit uses an Arduino UNO to read data from an IR sensor and display the information on a 128x64 OLED display. The IR sensor is connected to the Arduino's analog input A0, while the OLED display communicates with the Arduino via I2C using pins A4 (SDA) and A5 (SCL).
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with IR Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ir: A project utilizing IR Sensor in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing IR Sensor in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IR SENSOR: A project utilizing IR Sensor in a practical application
Arduino UNO Based IR Sensor Object Detection System
This circuit consists of an Arduino UNO connected to an infrared (IR) sensor. The Arduino provides 5V power and ground to the IR sensor and reads its output signal on digital pin D6. The embedded code on the Arduino is configured to serially output a message indicating the presence or absence of an object based on the IR sensor's detection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Tachometer Using IR sensor: A project utilizing IR Sensor in a practical application
Arduino UNO-Based IR Sensor and OLED Display System
This circuit uses an Arduino UNO to read data from an IR sensor and display the information on a 128x64 OLED display. The IR sensor is connected to the Arduino's analog input A0, while the OLED display communicates with the Arduino via I2C using pins A4 (SDA) and A5 (SCL).
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of a typical IR sensor module:

  • Operating Voltage: 3.3V to 5V DC
  • Current Consumption: 20mA (typical)
  • Detection Range: 2cm to 30cm (varies by model)
  • Output Type: Digital (High/Low) or Analog (voltage proportional to distance)
  • Wavelength: 940nm (infrared light)
  • Response Time: < 2ms
  • Operating Temperature: -25°C to 85°C

Pin Configuration and Descriptions

The IR sensor module typically has three pins. Below is the pin configuration:

Pin Name Description
1 VCC Connect to the positive terminal of the power supply (3.3V or 5V).
2 GND Connect to the ground terminal of the power supply.
3 OUT Output pin that provides a digital signal (HIGH or LOW) or analog voltage.

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power supply and the GND pin to the ground.
  2. Connect the Output:
    • For digital output, connect the OUT pin to a digital input pin of a microcontroller (e.g., Arduino).
    • For analog output, connect the OUT pin to an analog input pin of the microcontroller.
  3. Adjust Sensitivity: Many IR sensor modules include a potentiometer to adjust the detection range. Turn the potentiometer clockwise or counterclockwise to fine-tune the sensitivity.
  4. Place the Sensor: Position the sensor so that it faces the object or area to be detected. Ensure there are no obstructions between the sensor and the target.

Important Considerations and Best Practices

  • Avoid Direct Sunlight: IR sensors can be affected by strong ambient light, such as direct sunlight. Use the sensor in controlled lighting conditions for accurate results.
  • Reflective Surfaces: The sensor's performance may vary depending on the reflectivity of the target surface. Highly reflective surfaces may increase the detection range.
  • Interference: Avoid placing multiple IR sensors too close to each other, as their signals may interfere.
  • Power Supply: Use a stable power supply to ensure consistent performance.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to use an IR sensor with an Arduino UNO to detect an object and turn on an LED:

// Define pin connections
const int irSensorPin = 2;  // Digital pin connected to the IR sensor's OUT pin
const int ledPin = 13;      // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);           // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == LOW) {  // Object detected (LOW signal from sensor)
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {  // No object detected (HIGH signal from sensor)
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Sensor Not Detecting Objects:

    • Ensure the sensor is powered correctly (check VCC and GND connections).
    • Adjust the sensitivity using the onboard potentiometer.
    • Verify that the object is within the detection range.
  2. False Detections:

    • Reduce ambient light interference by shielding the sensor.
    • Check for reflective surfaces that may cause inaccurate readings.
  3. No Output Signal:

    • Confirm that the OUT pin is connected to the correct microcontroller pin.
    • Test the sensor with a multimeter to ensure it is functioning.
  4. Interference Between Multiple Sensors:

    • Space the sensors apart to prevent signal overlap.
    • Use shielding or alternate frequencies if possible.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent objects like glass, as infrared light can pass through them. Use alternative sensors for such applications.

Q: How do I increase the detection range?
A: Adjust the potentiometer on the sensor module. Note that the maximum range is limited by the sensor's design.

Q: Can I use the IR sensor outdoors?
A: While possible, outdoor use may result in reduced accuracy due to sunlight and environmental factors. Consider using an IR sensor with ambient light filtering for outdoor applications.
