How to Use Red led: Examples, Pinouts, and Specs

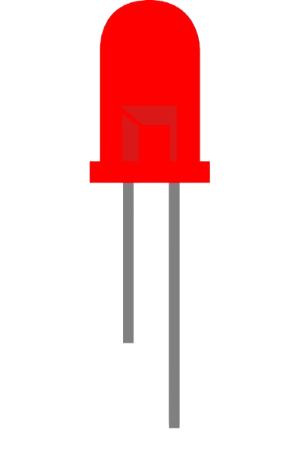

The Lina Red LED (Part ID: 1) is a light-emitting diode that emits red light when an electric current passes through it. This component is widely used in electronic circuits for visual indicators, status displays, and decorative lighting. Its compact size, low power consumption, and long lifespan make it an essential component in various applications.

• Power and status indicators in electronic devices
• Digital displays and signage
• Decorative and ambient lighting
• Circuit debugging and testing
• Educational and DIY electronics projects

Below are the key technical details for the Lina Red LED (Part ID: 1):

The Lina Red LED has two pins:

Note: The longer lead is the anode, which connects to the positive voltage, while the shorter lead is the cathode, which connects to ground.

1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

   • ( V_{supply} ) is the supply voltage
   • ( V_f ) is the forward voltage of the LED (1.8V to 2.2V)
   • ( I_f ) is the desired forward current (typically 20mA)

   For example, if ( V_{supply} = 5V ): [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (longer lead) to the positive terminal of the power supply through the resistor.
   • Connect the cathode (shorter lead) to the ground.

3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit red light when powered correctly.

• Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
• Current Limiting: Always use a resistor to limit the current through the LED.
• Heat Management: Avoid exceeding the maximum current and power dissipation to prevent overheating.
• Series and Parallel Connections: When using multiple LEDs, calculate the resistor values for each configuration.

Below is an example of how to connect and control the Lina Red LED using an Arduino UNO:

• Connect the anode of the LED to Arduino digital pin 9 through a 220Ω resistor.
• Connect the cathode of the LED to the Arduino GND pin.

// Example code to blink a Lina Red LED connected to pin 9 of Arduino UNO

const int ledPin = 9; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: The resistor value (220Ω) is chosen to limit the current to a safe level for the LED and Arduino.

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.

   • Solution: Ensure the anode is connected to the positive voltage and the cathode to ground.

   • Cause: No current-limiting resistor or incorrect resistor value.

   • Solution: Verify the resistor value and connections.

2. LED is Dim:

   • Cause: Insufficient current.
   • Solution: Check the resistor value and ensure it allows enough current (e.g., 20mA).

3. LED Burns Out:

   • Cause: Excessive current or voltage.
   • Solution: Use a proper current-limiting resistor and ensure the supply voltage is within the LED's specifications.

4. Flickering LED:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

• Q: Can I connect the LED directly to a 3.3V or 5V power supply?
  A: No, always use a current-limiting resistor to prevent damage to the LED.

• Q: What happens if I reverse the polarity of the LED?
  A: The LED will not light up, and prolonged reverse voltage may damage it.

• Q: Can I use the LED with a PWM signal?
  A: Yes, the LED can be dimmed or controlled using a PWM signal from a microcontroller like Arduino.

• Q: How do I calculate the resistor value for a different supply voltage?
  A: Use the formula ( R = \frac{V_{supply} - V_f}{I_f} ), where ( V_f ) is the forward voltage and ( I_f ) is the desired current.

This concludes the documentation for the Lina Red LED (Part ID: 1).
