How to Use SUPORTE 4 PILHAS AA: Examples, Pinouts, and Specs

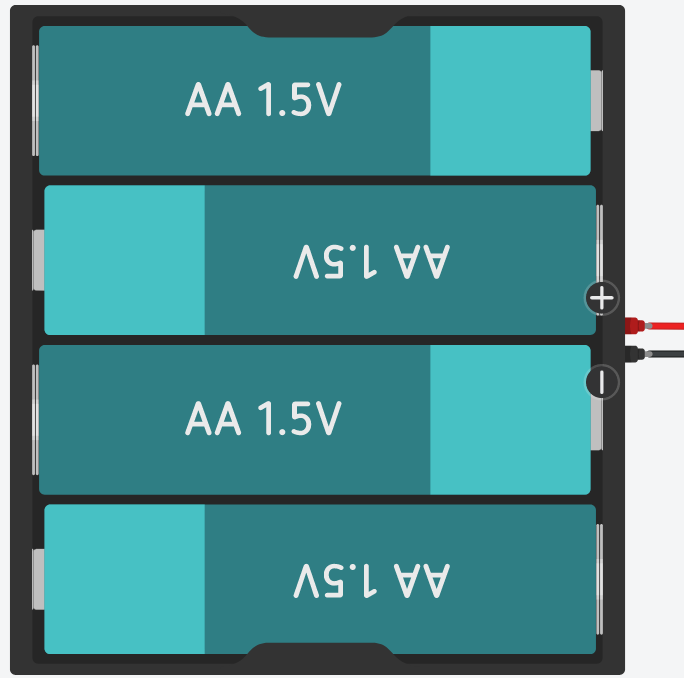

The SUPORTE 4 PILHAS AA is a battery holder manufactured by ALCALINAS. It is designed to securely house four AA batteries, providing a convenient and organized way to connect batteries in electronic circuits. This component is ideal for powering small to medium-sized electronic projects, offering a reliable and portable power source.

• Powering Arduino-based projects and other microcontroller circuits
• Portable electronic devices and DIY gadgets
• Robotics and small motorized systems
• Educational and prototyping purposes

The following table outlines the key technical details of the SUPORTE 4 PILHAS AA:

The SUPORTE 4 PILHAS AA does not have traditional pins but instead uses two wire leads for connection. The table below describes the wire leads:

1. Insert Batteries: Place four AA batteries into the holder, ensuring correct polarity as indicated on the holder.
2. Connect Wires:
   • Connect the red wire to the positive terminal of your circuit.
   • Connect the black wire to the ground or negative terminal of your circuit.
3. Secure Connections: Use soldering or a breadboard to ensure a stable connection.
4. Power Your Circuit: Once connected, the battery holder will supply power to your circuit.

• Battery Type: Use batteries of the same type and charge level to ensure consistent performance.
• Voltage Compatibility: Verify that your circuit can handle the output voltage (6V for alkaline or 4.8V for rechargeable batteries).
• Polarity: Double-check the polarity of the connections to avoid damaging your circuit.
• Heat Management: Avoid short circuits, as they can cause the batteries to overheat.
• Secure Mounting: Use screws or adhesive to securely mount the holder in your project.

The SUPORTE 4 PILHAS AA can be used to power an Arduino UNO. Below is an example of how to connect it:

1. Connect the red wire from the battery holder to the VIN pin on the Arduino UNO.
2. Connect the black wire from the battery holder to the GND pin on the Arduino UNO.

Here is a simple Arduino sketch to blink an LED while powered by the SUPORTE 4 PILHAS AA:

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the SUPORTE 4 PILHAS AA is properly connected to the Arduino.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Power Output:

   • Ensure the batteries are inserted correctly with proper polarity.
   • Check that the batteries are not depleted.
   • Verify the wire connections are secure and not loose.

2. Overheating:

   • Check for short circuits in your wiring.
   • Ensure the circuit is not drawing more current than the batteries can supply.

3. Inconsistent Voltage:

   • Use batteries of the same type and charge level.
   • Replace old or mismatched batteries.

• Test the Batteries: Use a multimeter to check the voltage of each battery.
• Inspect the Holder: Look for any physical damage or corrosion on the metal contacts.
• Secure Connections: If using a breadboard, ensure the wires are firmly inserted into the correct terminals.

By following these guidelines, the SUPORTE 4 PILHAS AA can provide a reliable and efficient power source for your electronic projects.
