How to Use 2A Fuse: Examples, Pinouts, and Specs

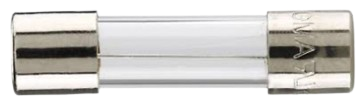

A 2A fuse is a protective device designed to interrupt an electrical circuit when the current flowing through it exceeds 2 amperes. This interruption prevents damage to sensitive components, reduces the risk of overheating, and minimizes the chance of electrical fires. Fuses are essential in ensuring the safety and longevity of electronic and electrical systems.

• Protection of low-power electronic circuits
• Safeguarding power supplies and adapters
• Use in household appliances such as chargers and small motors
• Automotive applications for protecting auxiliary circuits
• Circuit protection in DIY electronics projects

The 2A fuse is available in various types, such as glass tube, ceramic, and blade fuses. Below are the general technical specifications:

Fuses do not have pins in the traditional sense but instead have terminals or leads for connection. Below is a description of the typical fuse terminals:

1. Determine the Fuse Type: Choose between fast-blow (for sensitive electronics) or slow-blow (for circuits with inrush currents).
2. Select the Fuse Holder: Use a compatible fuse holder or clip for secure mounting.
3. Insert the Fuse: Place the fuse in the holder, ensuring proper contact with both terminals.
4. Connect to the Circuit: Wire the fuse in series with the circuit you want to protect. The input terminal should connect to the power source, and the output terminal should connect to the load.
5. Test the Circuit: Power on the circuit and verify that the fuse operates correctly under normal conditions.

• Always use a fuse with the correct current and voltage rating for your application.
• Avoid bypassing or shorting the fuse, as this defeats its protective purpose.
• Replace a blown fuse with one of the same type and rating.
• Ensure the fuse holder is rated for the same or higher current and voltage as the fuse.
• For circuits with high inrush currents (e.g., motors), use a slow-blow fuse to prevent nuisance tripping.

When powering an Arduino UNO from an external power source, you can use a 2A fuse to protect the board from overcurrent. Below is an example circuit:

1. Connect the positive terminal of the power source to one terminal of the fuse.
2. Connect the other terminal of the fuse to the VIN pin of the Arduino UNO.
3. Connect the negative terminal of the power source to the GND pin of the Arduino UNO.

// Example Arduino code to demonstrate a simple circuit
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output for the LED
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Fuse Blows Frequently:

   • Cause: The circuit may be drawing more than 2A.
   • Solution: Check the circuit for short circuits or excessive loads. Use a higher-rated fuse if appropriate for the application.

2. Fuse Does Not Blow When Expected:

   • Cause: The fuse may be faulty or incorrectly rated.
   • Solution: Verify the fuse rating and replace it if necessary.

3. Fuse Holder Overheats:

   • Cause: Poor contact between the fuse and holder.
   • Solution: Ensure the fuse is securely seated in the holder and that the holder is rated for the current.

Q: Can I use a 2A fuse in place of a 1A fuse?
A: No, using a 2A fuse in place of a 1A fuse may compromise the protection of your circuit. Always use a fuse with the correct rating.

Q: How do I know if a fuse is blown?
A: Inspect the fuse visually. For glass fuses, look for a broken filament or discoloration. For other types, use a multimeter to check for continuity.

Q: Can I use a 2A fuse for both AC and DC circuits?
A: Yes, as long as the fuse's voltage rating is higher than the circuit's operating voltage. Check the specifications to ensure compatibility.

Q: What is the difference between fast-blow and slow-blow fuses?
A: Fast-blow fuses respond quickly to overcurrent, while slow-blow fuses tolerate short-duration surges before blowing. Choose based on your circuit's requirements.
