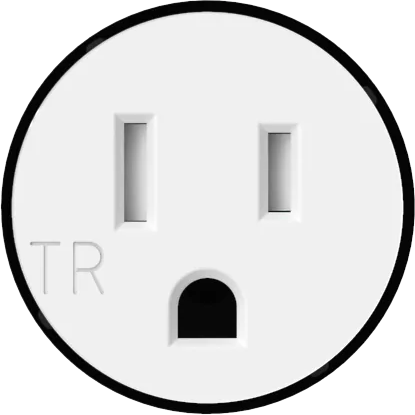

How to Use 220V Outlet: Examples, Pinouts, and Specs

A 220V outlet is a power receptacle designed to supply electrical power at 220 volts. It is commonly used for high-power appliances such as dryers, ovens, air conditioners, and other devices that require more energy than standard 110V outlets can provide. These outlets are typically found in residential, commercial, and industrial settings where high-power equipment is used.

• Powering large household appliances (e.g., electric ovens, dryers, and water heaters)
• Industrial machinery and equipment
• Air conditioning units
• Electric vehicle (EV) charging stations
• High-power tools in workshops

The technical specifications of a 220V outlet can vary depending on the type and design. Below are general specifications for a standard 220V outlet:

Below is a table describing the pin configuration for a typical 220V outlet:

1. Verify Voltage Requirements: Ensure the appliance or device you are connecting is rated for 220V operation.
2. Check Circuit Breaker Rating: The circuit breaker protecting the outlet should match the current rating of the outlet (e.g., 20A for a 20A outlet).
3. Wiring the Outlet:
   • Connect the Hot (L1) and Hot (L2) wires to the corresponding terminals on the outlet.
   • If a Neutral wire is required, connect it to the Neutral terminal.
   • Connect the Ground wire to the Ground terminal for safety.
4. Test the Outlet: Use a multimeter to verify the voltage between the terminals before plugging in any device.
5. Plug in the Appliance: Once the outlet is verified, connect the appliance securely.

• Safety First: Always turn off the power at the circuit breaker before working on the outlet.
• Use Proper Tools: Use insulated tools and a voltage tester to ensure safety during installation.
• Follow Local Codes: Adhere to local electrical codes and regulations when installing or using a 220V outlet.
• Avoid Overloading: Do not connect devices that exceed the outlet's current rating.
• Grounding: Ensure the outlet is properly grounded to prevent electrical hazards.

While an Arduino UNO cannot directly interface with a 220V outlet due to its low voltage operation, you can use a relay module to control a 220V appliance. Below is an example code snippet for controlling a 220V device using a relay:

// Example: Controlling a 220V appliance with Arduino and a relay module
// WARNING: Ensure proper isolation and safety when working with high voltage!

const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off initially
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn on the relay (activates 220V device)
  delay(5000); // Keep the device on for 5 seconds
  digitalWrite(relayPin, LOW); // Turn off the relay
  delay(5000); // Wait for 5 seconds before repeating
}

Note: Always use a relay module rated for 220V operation and ensure proper isolation between the low-voltage Arduino circuit and the high-voltage 220V circuit.

1. No Power at the Outlet:

   • Cause: Circuit breaker is tripped or wiring is faulty.
   • Solution: Check the circuit breaker and reset it if necessary. Inspect the wiring for loose connections.

2. Appliance Does Not Work:

   • Cause: Incorrect wiring or insufficient current rating.
   • Solution: Verify the wiring and ensure the outlet's current rating matches the appliance's requirements.

3. Outlet Overheats:

   • Cause: Loose connections or overloading.
   • Solution: Tighten all connections and ensure the connected devices do not exceed the outlet's current rating.

4. Sparks or Burning Smell:

   • Cause: Faulty wiring or damaged outlet.
   • Solution: Turn off the power immediately and replace the outlet or repair the wiring.

Q1: Can I use a 220V outlet for 110V appliances?
A1: No, 110V appliances are not designed to handle 220V and may be damaged. Use a step-down transformer or a 110V outlet instead.

Q2: How do I know if my outlet is properly grounded?
A2: Use a receptacle tester or multimeter to check for proper grounding. Consult an electrician if unsure.

Q3: Can I install a 220V outlet myself?
A3: If you are experienced with electrical work and understand local codes, you can install it. Otherwise, hire a licensed electrician for safety and compliance.

Q4: What is the difference between a 3-pin and 4-pin 220V outlet?
A4: A 3-pin outlet includes two Hot wires and a Ground, while a 4-pin outlet adds a Neutral wire for additional functionality.
