How to Use Adafruit Mini TFT Display - 0.96in 160x80: Examples, Pinouts, and Specs

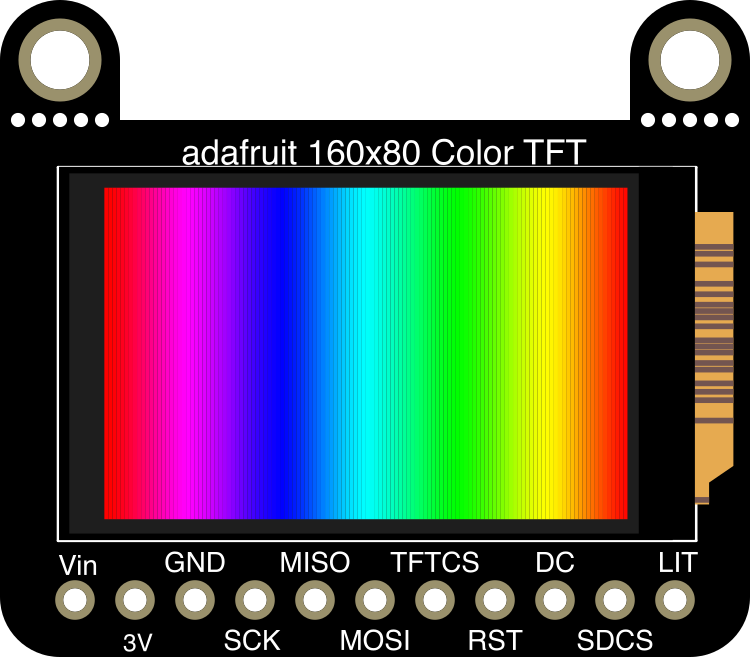

The Adafruit Mini TFT Display - 0.96in 160x80 (Manufacturer Part ID: 3533) is a compact color display module designed for projects requiring a small yet vibrant visual output. With a resolution of 160x80 pixels and a 0.96-inch diagonal screen, this display is perfect for applications where space is limited but clear graphical output is essential. It uses the ST7735 driver chip for efficient communication and rendering.

• Wearable devices
• Portable electronics
• Sensor data visualization
• Compact user interfaces
• Educational and hobbyist projects

1. Power Supply: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to ground.
2. SPI Communication: Connect the SCK and MOSI pins to the corresponding SPI pins on your microcontroller.
3. Control Pins:
   • Connect the CS pin to a GPIO pin on your microcontroller to enable/disable the display.
   • Use the DC pin to toggle between data and command modes.
   • Connect the RST pin to a GPIO pin for resetting the display.
4. Backlight: Optionally, connect the BL pin to a PWM-capable GPIO pin to adjust the backlight brightness.

• Ensure the logic level of your microcontroller matches the display's 3.3V logic. Use a level shifter if necessary.
• Use short and well-routed wires for SPI connections to minimize noise.
• Avoid powering the display directly from an unstable power source to prevent flickering or damage.
• Use appropriate pull-up or pull-down resistors if required by your microcontroller.

Below is an example of how to use the Adafruit Mini TFT Display with an Arduino UNO. This code uses the Adafruit GFX and Adafruit ST7735 libraries, which can be installed via the Arduino Library Manager.

#include <Adafruit_GFX.h>    // Core graphics library
#include <Adafruit_ST7735.h> // Hardware-specific library for ST7735

// Define pins for the display
#define TFT_CS     10  // Chip select pin
#define TFT_RST    9   // Reset pin
#define TFT_DC     8   // Data/Command pin

// Initialize the display object
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  Serial.println("Initializing display...");

  // Initialize the display
  tft.initR(INITR_MINI160x80); // Use the correct initialization for 160x80
  tft.setRotation(1);         // Set display orientation (1 = landscape)

  // Clear the screen with a black background
  tft.fillScreen(ST77XX_BLACK);

  // Display a message
  tft.setTextColor(ST77XX_WHITE);
  tft.setTextSize(1);
  tft.setCursor(10, 10);
  tft.println("Hello, World!");
}

void loop() {
  // Add your code here to update the display
}

• Replace TFT_CS, TFT_RST, and TFT_DC with the actual pins connected to your Arduino.
• Ensure the Adafruit_GFX and Adafruit_ST7735 libraries are installed before uploading the code.

1. Display Not Turning On:

   • Verify the power connections (VIN and GND).
   • Ensure the backlight pin (BL) is connected or set to HIGH.

2. No Output on the Screen:

   • Check the SPI connections (SCK, MOSI, CS, DC).
   • Ensure the correct initialization function (initR(INITR_MINI160x80)) is used in the code.

3. Flickering or Unstable Display:

   • Use a stable power source.
   • Check for loose or noisy connections in the SPI lines.

4. Incorrect Colors or Graphics:

   • Verify the setRotation() function is set correctly for your desired orientation.
   • Ensure the data sent to the display matches the expected format.

Q: Can I use this display with a 5V logic microcontroller?
A: Yes, but you will need a logic level shifter to convert 5V signals to 3.3V.

Q: How do I adjust the brightness of the backlight?
A: Connect the BL pin to a PWM-capable GPIO pin and use analogWrite() to control brightness.

Q: Can I use this display with platforms other than Arduino?
A: Yes, the display is compatible with any platform that supports SPI communication, such as Raspberry Pi or ESP32.

Q: What is the maximum SPI clock speed supported?
A: The ST7735 driver typically supports SPI clock speeds up to 15 MHz, but check your microcontroller's capabilities for optimal performance.
