How to Use MCB 4A: Examples, Pinouts, and Specs

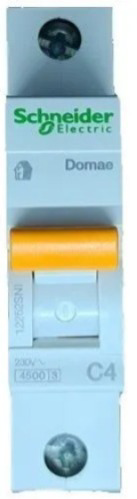

A Miniature Circuit Breaker (MCB) rated at 4 Amperes is an essential safety device used in electrical systems. It is designed to protect circuits from overload and short circuit conditions by automatically interrupting the flow of current when it exceeds the rated capacity. The MCB 4A is compact, reliable, and widely used in residential, commercial, and industrial applications.

• Protection of lighting circuits in homes and offices
• Safeguarding small appliances and equipment
• Use in control panels for low-power devices
• Circuit protection in renewable energy systems (e.g., solar panels)

The following table outlines the key technical details of the MCB 4A:

The MCB 4A does not have traditional pins but instead features terminals for wire connections. The table below describes the terminal configuration:

1. Mounting the MCB:

   • Install the MCB on a standard 35mm DIN rail in the distribution box or control panel.
   • Ensure the MCB is securely locked into place.

2. Wiring the MCB:

   • Connect the incoming live wire (phase) to the Line (Input) terminal.
   • Connect the outgoing live wire to the Load (Output) terminal.
   • Tighten the terminal screws to ensure a secure connection.

3. Testing the MCB:

   • After installation, switch on the MCB and verify that the connected circuit operates correctly.
   • Use the test button (if available) to simulate a fault and ensure the MCB trips as expected.

• Ensure the MCB's rated current (4A) matches the circuit's load requirements.
• Do not exceed the MCB's rated voltage or breaking capacity.
• Use appropriate wire sizes for the connected load (e.g., 1.5mm² for lighting circuits).
• Regularly inspect the MCB for signs of wear, damage, or loose connections.
• Avoid using the MCB as a regular on/off switch, as this may reduce its lifespan.

While the MCB itself is not directly connected to an Arduino UNO, it can be used to protect circuits powered by the Arduino. For example, if you are powering a motor or LED strip through a relay controlled by the Arduino, the MCB can safeguard the circuit.

// Example Arduino code to control a relay for a load protected by the MCB 4A
const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  // Turn on the relay (and the connected load)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the load on for 5 seconds

  // Turn off the relay (and the connected load)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the load off for 5 seconds
}

Note: Ensure the load connected to the relay does not exceed the MCB's 4A rating.

1. Can I use the MCB 4A for inductive loads like motors?

   • The MCB 4A with a Type B tripping curve is best suited for resistive loads. For inductive loads, consider using an MCB with a Type C or D curve.

2. What happens if I exceed the MCB's rated current?

   • The MCB will trip to protect the circuit from damage. Repeated overloading can reduce the MCB's lifespan.

3. How do I reset the MCB after it trips?

   • Switch the MCB to the "OFF" position, resolve the fault in the circuit, and then switch it back to the "ON" position.

4. Can I use the MCB 4A in a DC circuit?

   • No, this MCB is designed for AC circuits. Use a DC-rated circuit breaker for DC applications.

By following this documentation, you can safely and effectively use the MCB 4A to protect your electrical circuits.
