How to Use Lipo 14.8V 3300 mAh: Examples, Pinouts, and Specs

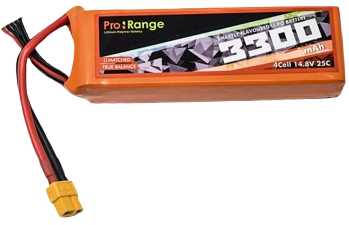

The Lipo 14.8V 3300 mAh is a lithium polymer battery designed for applications requiring high energy density and lightweight power sources. With a nominal voltage of 14.8 volts and a capacity of 3300 milliamp hours (mAh), this battery is ideal for powering devices such as remote-controlled (RC) vehicles, drones, robotics, and other portable electronics. Its compact design and reliable performance make it a popular choice for hobbyists and professionals alike.

• RC vehicles (cars, boats, planes)
• Drones and quadcopters
• Robotics and automation systems
• Portable electronic devices
• DIY electronics projects

* The discharge rate (C-rating) varies by manufacturer. Check your specific battery's label for details.
** Connector type depends on the manufacturer and application. Ensure compatibility with your device.

LiPo batteries typically have two sets of wires:

1. Main Power Wires: These are thicker wires used for powering the device.
   • Red Wire: Positive terminal (+)
   • Black Wire: Negative terminal (-)
2. Balance Connector: A smaller connector with multiple pins used for balancing the individual cells during charging.
   • Pinout varies depending on the number of cells (4S for 14.8V batteries):

     Pin Number	Function
     1	Cell 1 (-)
     2	Cell 1 (+), Cell 2 (-)
     3	Cell 2 (+), Cell 3 (-)
     4	Cell 3 (+), Cell 4 (-)
     5	Cell 4 (+)

1. Charging:

   • Use a LiPo-compatible balance charger to charge the battery.
   • Set the charger to the correct cell count (4S for 14.8V) and charge rate (1C or 3.3A).
   • Always monitor the charging process to prevent overcharging or overheating.

2. Connecting to a Circuit:

   • Ensure the device's voltage and current requirements match the battery's specifications.
   • Use the appropriate connector (e.g., XT60) to connect the battery to your device.
   • Avoid short-circuiting the terminals, as this can damage the battery or cause a fire.

3. Discharging:

   • Do not discharge the battery below 3.0V per cell (12.0V for a 4S battery) to prevent damage.
   • Use a voltage alarm or battery monitor to track the voltage during use.

4. Storage:

   • Store the battery at a voltage of 3.7V to 3.85V per cell (14.8V to 15.4V for 4S).
   • Keep the battery in a cool, dry place away from flammable materials.

• Always handle LiPo batteries with care to avoid punctures or physical damage.
• Use a fireproof LiPo bag for charging and storage.
• Never leave a charging battery unattended.
• Ensure proper ventilation during use to prevent overheating.

While the Lipo 14.8V 3300 mAh battery cannot be directly connected to an Arduino UNO due to its high voltage, you can use a voltage regulator (e.g., LM2596) to step down the voltage to 5V. Below is an example circuit and code for powering an Arduino UNO with this battery:

1. Connect the battery's positive and negative terminals to the input of the voltage regulator.
2. Set the regulator's output to 5V using a multimeter.
3. Connect the regulator's output to the Arduino's 5V and GND pins.

// Example code for Arduino UNO powered by a LiPo battery
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Battery Not Charging:

   • Cause: Incorrect charger settings or damaged battery.
   • Solution: Verify the charger is set to 4S (14.8V) and the correct charge rate. Inspect the battery for physical damage.

2. Battery Swelling:

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately. Dispose of it safely following local regulations.

3. Device Not Powering On:

   • Cause: Insufficient voltage or loose connections.
   • Solution: Check the battery voltage and ensure all connections are secure.

4. Battery Drains Too Quickly:

   • Cause: High discharge rate or aging battery.
   • Solution: Ensure the device's current draw is within the battery's discharge limits. Replace the battery if it is old.

• Q: Can I use this battery for a 12V device?
  A: No, the nominal voltage is 14.8V, which may damage a 12V device. Use a voltage regulator to step down the voltage.

• Q: How long will this battery last on a single charge?
  A: Battery life depends on the device's current draw. For example, at a 10A draw, the battery will last approximately 20 minutes (3300 mAh ÷ 10A = 0.33 hours).

• Q: Is it safe to charge the battery at a higher rate than 1C?
  A: Charging at a higher rate (e.g., 2C) may be possible if specified by the manufacturer, but it can reduce the battery's lifespan. Always follow the manufacturer's recommendations.

• Q: How do I dispose of a damaged LiPo battery?
  A: Discharge the battery completely, submerge it in saltwater for 24 hours, and dispose of it at a battery recycling facility.

By following these guidelines, you can safely and effectively use the Lipo 14.8V 3300 mAh battery in your projects.
