How to Use PCB Circuit 5x7: Examples, Pinouts, and Specs

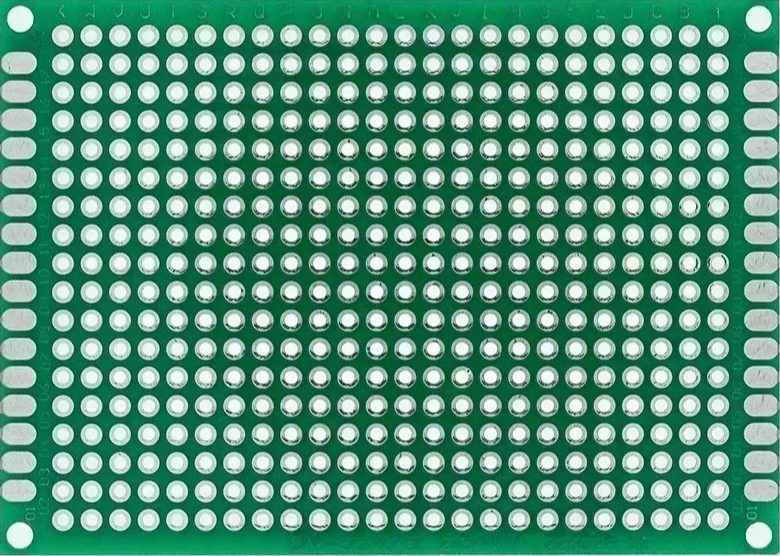

The PCB Circuit 5x7 is a versatile printed circuit board (PCB) measuring 5x7 inches, designed for mounting and interconnecting electronic components. Manufactured in China, this PCB is ideal for prototyping, DIY electronics projects, and small-scale production. Its grid of pre-drilled holes and copper traces simplifies the process of creating custom circuits without the need for advanced PCB fabrication tools.

• Prototyping and testing electronic circuits
• DIY electronics projects
• Educational purposes for learning circuit design
• Small-scale production of custom electronic devices
• Repair and modification of existing circuits

The PCB Circuit 5x7 is designed to meet the needs of hobbyists and professionals alike. Below are its key technical details:

The PCB Circuit 5x7 does not have predefined pins but features a grid of pre-drilled holes for mounting components. Below is a description of its layout:

The PCB Circuit 5x7 is straightforward to use and highly adaptable for various projects. Follow these steps and best practices to ensure optimal performance:

1. Plan Your Circuit Design: Sketch the circuit layout on paper or use PCB design software to map out component placement and connections.
2. Place Components: Insert components (e.g., resistors, capacitors, ICs) into the pre-drilled holes.
3. Solder Components: Use a soldering iron to secure components to the PCB. Ensure solder joints are clean and free of shorts.
4. Create Connections: Use solder bridges, jumper wires, or copper traces to connect components as per your circuit design.
5. Test the Circuit: Verify the circuit functionality using a multimeter or by powering it up.

• Avoid Overheating: Excessive heat during soldering can damage the PCB or components.
• Use Flux: Apply flux to improve solder flow and ensure strong connections.
• Clean the PCB: Remove excess flux and debris after soldering to prevent corrosion or shorts.
• Label Components: Use a marker or labels to identify components and connections for easier debugging.
• Protect the PCB: Use an enclosure or conformal coating to protect the PCB from environmental factors.

The PCB Circuit 5x7 can be used to create custom shields or circuits for an Arduino UNO. Below is an example of connecting an LED and resistor to an Arduino UNO using the PCB:

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the LED is connected in series with a 220-ohm resistor to limit current.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Cold Solder Joints: Poor soldering can result in weak or intermittent connections.
   • Solution: Reheat the joint and apply a small amount of solder to ensure a solid connection.
2. Short Circuits: Solder bridges or improper connections can cause shorts.
   • Solution: Inspect the PCB under a magnifying glass and remove excess solder with a desoldering wick.
3. Component Misplacement: Incorrect placement of components can lead to circuit failure.
   • Solution: Double-check the circuit design and component orientation before soldering.
4. Damaged Traces: Excessive heat or force can damage copper traces.
   • Solution: Repair damaged traces using conductive ink or solder a thin wire as a replacement.

Q: Can I use this PCB for high-frequency circuits?
A: The PCB Circuit 5x7 is suitable for low to moderate frequency circuits. For high-frequency applications, consider using a PCB with controlled impedance and specialized materials.

Q: Is the PCB reusable?
A: While the PCB can be reused, desoldering components may damage the solder pads or traces. Reuse with caution.

Q: Can I cut the PCB to a smaller size?
A: Yes, the PCB can be cut using a PCB cutter or a fine-toothed saw. Ensure edges are smooth to avoid shorts.

Q: Does the PCB support surface-mount components?
A: The PCB is primarily designed for through-hole components, but surface-mount components can be used with careful soldering.

By following this documentation, users can effectively utilize the PCB Circuit 5x7 for a wide range of electronic projects.
