How to Use 1 Channel Relay 5V: Examples, Pinouts, and Specs

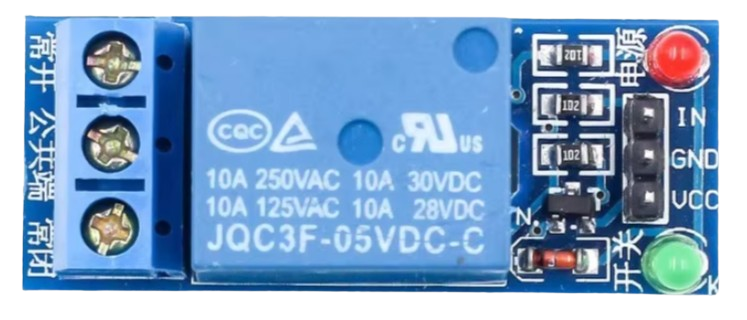

The 1 Channel Relay 5V is an electromechanical switching device that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and control systems to isolate and switch high-power devices such as lights, motors, and other electrical loads.

• Home automation systems (e.g., controlling lights or fans)
• Industrial control systems
• Motor control
• IoT projects for switching high-power devices
• Safety isolation between low voltage control circuits and high voltage loads

The following table outlines the key technical details of the 1 Channel Relay 5V module:

The 1 Channel Relay 5V module typically has the following pins:

1. Power the Relay Module: Connect the VCC pin to a 5V power supply and the GND pin to the ground.
2. Connect the Control Signal: Connect the IN pin to the control signal source, such as a microcontroller (e.g., Arduino UNO).
3. Connect the Load:
   • For a load that should be OFF by default, connect it between the COM and NO terminals.
   • For a load that should be ON by default, connect it between the COM and NC terminals.
4. Activate the Relay: Send a HIGH signal (e.g., 5V) to the IN pin to activate the relay and switch the load.

• Isolation: Ensure proper isolation between the low voltage control circuit and the high voltage load to prevent damage or hazards.
• Power Ratings: Do not exceed the relay's maximum voltage and current ratings (250V AC / 30V DC, 10A).
• Flyback Diode: If controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.
• Indicator LED: Use the onboard LED as a visual indicator to confirm relay activation.

Below is an example of how to control the 1 Channel Relay 5V using an Arduino UNO:

• Connect the relay module's VCC to the Arduino's 5V pin.
• Connect the relay module's GND to the Arduino's GND pin.
• Connect the relay module's IN pin to Arduino digital pin 7.
• Connect the load (e.g., a light bulb) to the COM and NO terminals of the relay.

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off initially
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON (activates the connected load)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF (deactivates the connected load)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

1. Relay Not Activating

   • Cause: Insufficient control signal voltage.
   • Solution: Ensure the control signal voltage is between 3.3V and 5V.

2. Load Not Switching

   • Cause: Incorrect wiring of the load to the relay terminals.
   • Solution: Verify the load is connected to the correct terminals (COM, NO, or NC).

3. Relay Stuck in One State

   • Cause: Relay contacts may be damaged due to overcurrent or overvoltage.
   • Solution: Replace the relay module and ensure the load does not exceed the rated specifications.

4. Indicator LED Not Lighting Up

   • Cause: No power to the relay module or faulty module.
   • Solution: Check the power supply connections and ensure the module is functional.

• Q: Can I use this relay module with a 3.3V microcontroller?
  A: Yes, the relay can be triggered with a 3.3V control signal, but ensure the VCC pin is powered with 5V.

• Q: Is the relay safe for switching high-power devices?
  A: Yes, as long as the load does not exceed the relay's maximum ratings (250V AC / 30V DC, 10A).

• Q: Can I use this relay to control DC motors?
  A: Yes, but for inductive loads like motors, use a flyback diode to protect the relay from voltage spikes.

• Q: What happens if I connect both NO and NC terminals?
  A: The relay will switch between the two terminals based on the control signal, but ensure the load connections are appropriate for your application.
