How to Use XL6009: Examples, Pinouts, and Specs

The XL6009 is a high-performance, step-up (boost) DC-DC converter module manufactured by HiLetgo. It is designed to efficiently increase a lower input voltage to a higher output voltage, making it ideal for applications where a stable output voltage is required despite fluctuations in the input voltage. This module is widely used in battery-powered devices, portable electronics, LED drivers, and other power supply applications.

• Powering devices from batteries with varying voltage levels
• LED lighting systems
• Solar-powered systems
• DIY electronics projects
• Arduino and microcontroller-based applications

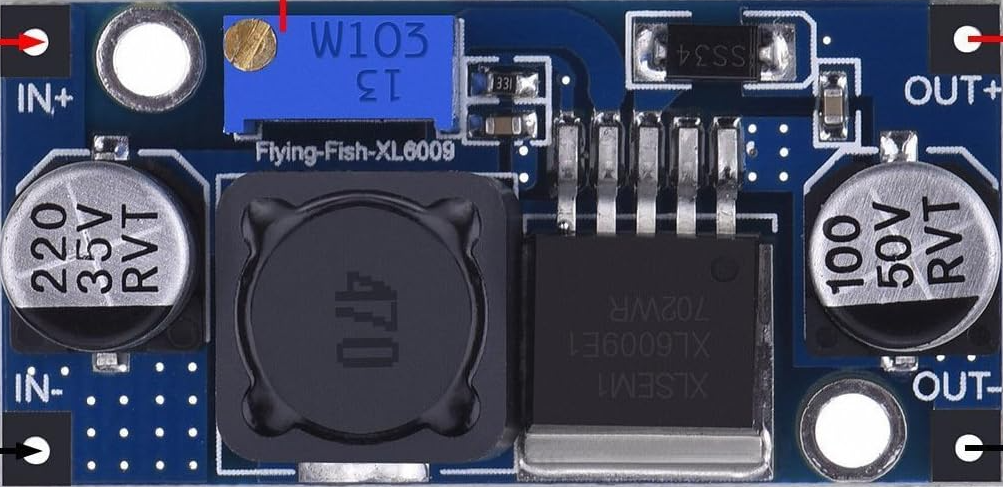

The XL6009 module is built around the XL6009 IC, which is a high-efficiency, high-frequency DC-DC boost converter. Below are the key technical details:

The XL6009 module has four main pins/terminals for input and output connections:

1. Connect the Input Voltage:

   • Connect the positive terminal of your power source to the VIN+ pin.
   • Connect the negative terminal of your power source to the VIN- pin.

2. Connect the Output Load:

   • Connect the positive terminal of your load to the VOUT+ pin.
   • Connect the negative terminal of your load to the VOUT- pin.

3. Adjust the Output Voltage:

   • Use the onboard potentiometer to adjust the output voltage.
   • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
   • Use a multimeter to measure the output voltage while adjusting.

4. Power On:

   • Once all connections are secure, power on the module by supplying input voltage.

• Heat Dissipation: The XL6009 module can handle up to 4A of current, but proper heat dissipation (e.g., a heatsink) is required for high-current applications.
• Input Voltage Limitations: Ensure the input voltage does not exceed 30V to avoid damaging the module.
• Output Voltage Adjustment: Always measure the output voltage with a multimeter before connecting sensitive devices.
• Polarity Protection: The module does not have built-in reverse polarity protection. Double-check connections before powering on.

The XL6009 can be used to power an Arduino UNO from a lower voltage source, such as a 3.7V Li-ion battery. Below is an example setup:

1. Connect the battery's positive terminal to VIN+ and negative terminal to VIN-.
2. Adjust the output voltage to 9V using the potentiometer.
3. Connect VOUT+ to the Arduino's VIN pin and VOUT- to the Arduino's GND pin.

Here is a simple Arduino code example to blink an LED while powered by the XL6009:

// Simple LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the XL6009 output is set to 9V before powering the Arduino.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect wiring or insufficient input voltage.
   • Solution: Double-check all connections and ensure the input voltage is within the specified range.

2. Output Voltage Not Adjustable:

   • Cause: Faulty potentiometer or incorrect adjustment.
   • Solution: Turn the potentiometer slowly and ensure you are measuring the output voltage correctly.

3. Overheating:

   • Cause: Excessive current draw or poor heat dissipation.
   • Solution: Add a heatsink or reduce the load current.

4. Module Not Working:

   • Cause: Reverse polarity or damaged components.
   • Solution: Verify the polarity of the input voltage and inspect the module for visible damage.

Q: Can the XL6009 step down voltage?
A: No, the XL6009 is a boost converter and can only step up voltage. For step-down applications, use a buck converter.

Q: What is the maximum input current?
A: The input current depends on the load and efficiency. Ensure the power source can supply sufficient current for your application.

Q: Can I use the XL6009 with a solar panel?
A: Yes, the XL6009 can be used with a solar panel, provided the input voltage is within the 3.0V to 30.0V range.

Q: Is the module safe for sensitive electronics?
A: Yes, but always measure and verify the output voltage before connecting sensitive devices to avoid damage.
