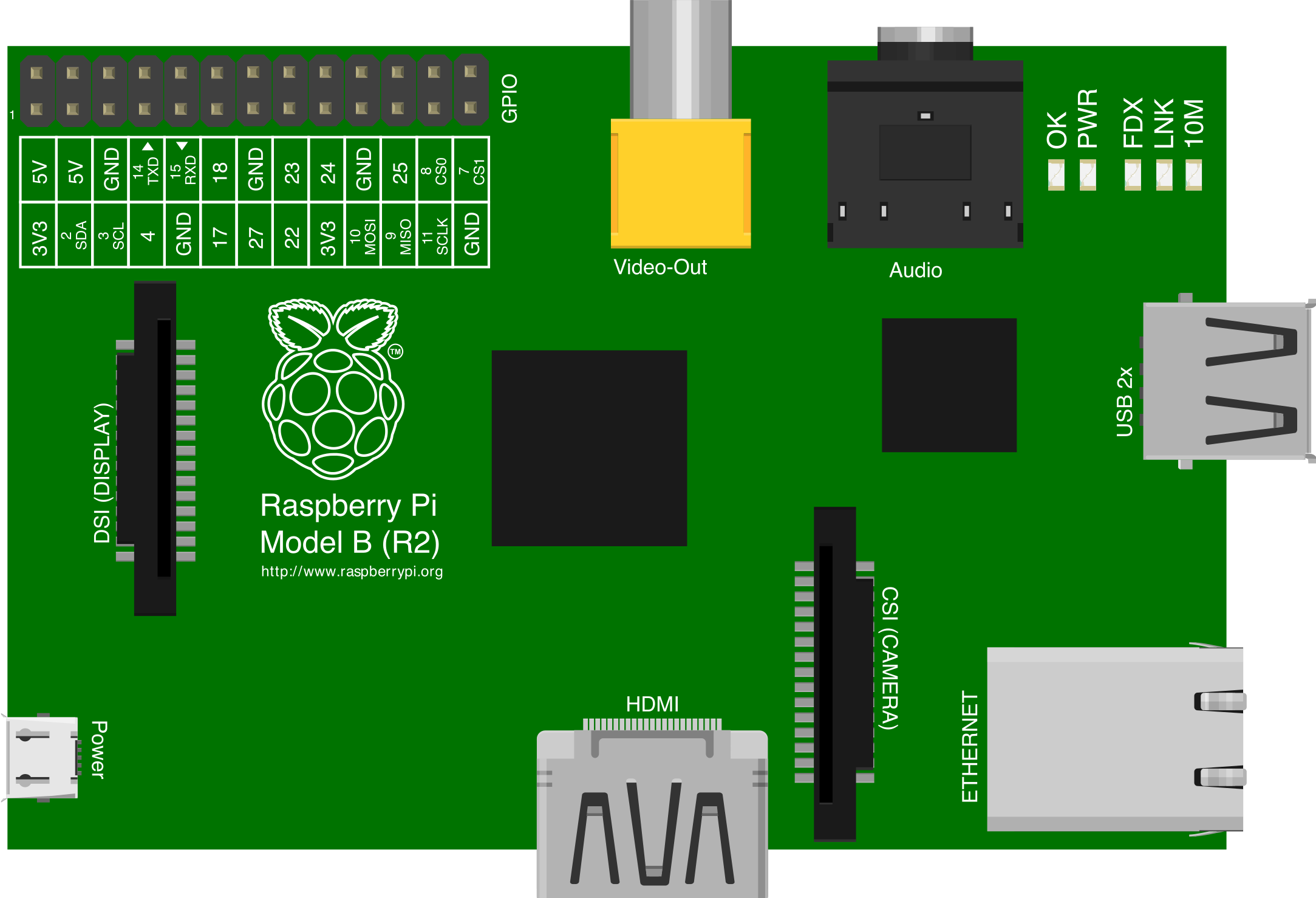

The Raspberry Pi Model B Revision 2, manufactured by Raspberry Pi Ltd, is a small, affordable single-board computer designed for a wide range of applications. It features a 700 MHz ARM processor, 512 MB of RAM, and multiple USB ports, making it an excellent choice for DIY projects, educational purposes, and prototyping. Its compact size and versatility have made it a popular tool among hobbyists, students, and professionals alike.

• Educational Projects: Teaching programming, electronics, and computer science.
• DIY Electronics: Building home automation systems, IoT devices, and robotics.
• Media Centers: Setting up a low-cost media streaming device.
• Prototyping: Developing and testing hardware and software solutions.
• Networking: Acting as a lightweight server or network monitoring tool.

The following table outlines the key technical details of the Raspberry Pi Model B Revision 2:

The Raspberry Pi Model B Revision 2 features a 26-pin GPIO header. Below is the pinout:

1. Powering the Raspberry Pi:

   • Use a 5V micro-USB power supply capable of delivering at least 700 mA.
   • Ensure the power supply is stable to avoid unexpected shutdowns.

2. Connecting Peripherals:

   • Attach a USB keyboard and mouse to the USB ports.
   • Connect an HDMI cable to a monitor or TV for video output.
   • Insert an SD card with a compatible operating system (e.g., Raspbian).

3. Using GPIO Pins:

   • Use jumper wires to connect the GPIO pins to external components like LEDs, sensors, or motors.
   • Be cautious not to exceed the voltage and current limits of the GPIO pins (3.3V logic level).

4. Networking:

   • Connect an Ethernet cable to the Ethernet port for internet access or local networking.

• Static Protection: Always handle the Raspberry Pi by its edges to avoid static damage to the components.
• Cooling: While the Model B Revision 2 does not require active cooling, adding a heatsink can improve performance during intensive tasks.
• GPIO Safety: Avoid connecting GPIO pins directly to 5V or high-current devices without proper resistors or level shifters.
• Software Updates: Regularly update the operating system and software packages to ensure security and compatibility.

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO 17 as an output pin

try: while True: GPIO.output(17, GPIO.HIGH) # Turn on the LED time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn off the LED time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

1. The Raspberry Pi does not boot:

   • Ensure the SD card is properly inserted and contains a valid operating system image.
   • Check the power supply for sufficient voltage and current.

2. No video output on the monitor:

   • Verify the HDMI cable is securely connected.
   • Ensure the monitor is set to the correct input source.
   • Edit the config.txt file on the SD card to force HDMI output if necessary.

3. GPIO pins not working:

   • Double-check the pin connections and ensure the correct pin numbering is used in the code.
   • Verify that the GPIO pins are not damaged or shorted.

4. Overheating:

   • Ensure the Raspberry Pi is placed in a well-ventilated area.
   • Consider adding a heatsink or fan for better cooling.

• Can I power the Raspberry Pi via GPIO pins?
  Yes, you can power the Raspberry Pi by supplying 5V to the 5V GPIO pin and connecting ground to a GND pin. However, this bypasses the onboard voltage protection, so proceed with caution.

• What operating systems are compatible with the Raspberry Pi Model B Revision 2?
  The Raspberry Pi supports various operating systems, including Raspbian (now Raspberry Pi OS), Ubuntu, and other lightweight Linux distributions.

• Can I use the Raspberry Pi Model B Revision 2 for modern applications?
  While it is suitable for basic tasks, its limited processing power and RAM may not handle resource-intensive applications effectively. For such tasks, consider newer Raspberry Pi models.
