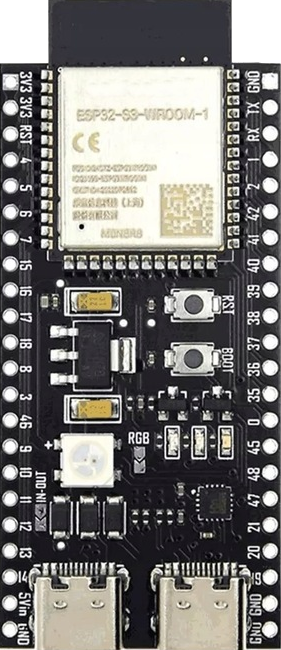

How to Use ESP32-S3 DevKitC-1 WROOM-1: Examples, Pinouts, and Specs

The ESP32-S3 DevKitC-1 WROOM-1 is a development board designed by Espressif Systems. It is based on the ESP32-S3-WROOM-1 module, which features a dual-core Xtensa LX7 processor, integrated Wi-Fi (802.11 b/g/n), and Bluetooth 5.0 LE capabilities. This board is ideal for IoT applications, edge computing, and AI-based projects due to its enhanced processing power and support for AI acceleration.

• IoT devices and smart home automation
• Wearable electronics
• AI and machine learning applications
• Wireless communication systems
• Industrial automation and monitoring
• Prototyping and development of embedded systems

The following table outlines the key technical specifications of the ESP32-S3 DevKitC-1 WROOM-1:

The ESP32-S3 DevKitC-1 WROOM-1 features a 2x19 pin header layout. Below is the pin configuration:

Note: For the complete pinout and alternate functions, refer to the official datasheet provided by Espressif Systems.

1. Powering the Board:

   • Connect the board to your computer or a USB power source using a USB Type-C cable. The onboard voltage regulator will convert the 5 V input to 3.3 V for the ESP32-S3 module.

2. Programming the Board:

   • Install the Arduino IDE or Espressif's ESP-IDF development framework.
   • Add the ESP32 board support package to the Arduino IDE by including the appropriate URL in the board manager.
   • Select "ESP32-S3 DevKitC-1" as the target board.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure that the voltage levels are compatible with the 3.3 V logic of the ESP32-S3.

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF.
   • Press the "Boot" button on the board while uploading the code to enter programming mode.

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

• Voltage Levels: Ensure that all connected peripherals operate at 3.3 V logic levels to avoid damaging the board.
• Boot Mode: GPIO0 is used for boot mode selection. Avoid pulling it high during startup unless necessary.
• Power Supply: Use a stable 5 V power source when powering the board via USB.
• ESD Protection: Handle the board with care to prevent electrostatic discharge damage.

1. The board is not detected by the computer:

   • Ensure that the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial drivers for the ESP32-S3.

2. Code upload fails:

   • Press and hold the "Boot" button while uploading the code.
   • Verify that the correct COM port and board type are selected in the Arduino IDE.

3. Wi-Fi connection issues:

   • Check the Wi-Fi credentials in your code.
   • Ensure that the Wi-Fi network is within range and operational.

4. GPIO pins not working as expected:

   • Verify that the pins are not being used for alternate functions.
   • Check for short circuits or incorrect wiring.

Q: Can I power the board using an external 3.3 V source?
A: Yes, you can power the board using the 3V3 pin, but ensure that the external power source is stable and capable of supplying sufficient current.

Q: Does the board support deep sleep mode?
A: Yes, the ESP32-S3 supports deep sleep mode with ultra-low power consumption for battery-powered applications.

Q: How do I reset the board?
A: Press the "EN" button to reset the board.

Q: Can I use the board for AI/ML applications?
A: Yes, the ESP32-S3 includes vector instructions and hardware acceleration for AI/ML workloads, making it suitable for such applications.
