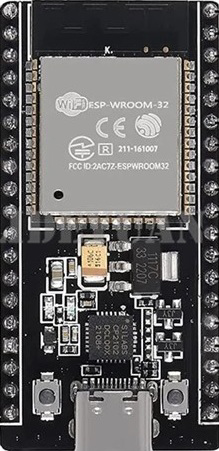

Image of ESP32 38PIN
Cirkit Designer LogoDesign with ESP32 38PIN in Cirkit Designer

Introduction

The ESP32 38PIN is a powerful microcontroller with integrated Wi-Fi and Bluetooth capabilities, designed for Internet of Things (IoT) applications. It features a dual-core processor, multiple GPIO pins, ADCs, and a variety of communication interfaces, making it highly versatile for a wide range of projects. Its compact design and robust functionality make it a popular choice for developers working on smart devices, home automation, and wireless communication systems.

Explore Projects Built with ESP32 38PIN

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based OLED Display Interface
Image of d: A project utilizing ESP32 38PIN in a practical application
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled LED System
Image of PIR Tester: A project utilizing ESP32 38PIN in a practical application
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Display with Camera and Audio Alert System
Image of cam_circuit_design: A project utilizing ESP32 38PIN in a practical application
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Connectivity Hub with RFID and GPS Tracking
Image of Ccapstone: A project utilizing ESP32 38PIN in a practical application
This circuit features an ESP32 microcontroller as the central processing unit, interfaced with an ESP32-CAM module for image capture, an RFID-RC522 module for RFID communication, a GPS NEO 6M module for location tracking, and a SIM800L module for GSM communication capabilities. The ESP32 is configured to communicate with these peripherals using GPIO and serial connections, enabling functionalities such as RFID-based identification, image capture, location tracking, and GSM-based data transmission. The provided code suggests that the ESP32-CAM module is programmable, but the specific functionality is not defined in the provided code snippet.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 38PIN

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of d: A project utilizing ESP32 38PIN in a practical application
ESP32-Based OLED Display Interface
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PIR Tester: A project utilizing ESP32 38PIN in a practical application
ESP32-Based Wi-Fi Controlled LED System
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cam_circuit_design: A project utilizing ESP32 38PIN in a practical application
ESP32-Based Smart Display with Camera and Audio Alert System
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ccapstone: A project utilizing ESP32 38PIN in a practical application
ESP32-Based Smart Connectivity Hub with RFID and GPS Tracking
This circuit features an ESP32 microcontroller as the central processing unit, interfaced with an ESP32-CAM module for image capture, an RFID-RC522 module for RFID communication, a GPS NEO 6M module for location tracking, and a SIM800L module for GSM communication capabilities. The ESP32 is configured to communicate with these peripherals using GPIO and serial connections, enabling functionalities such as RFID-based identification, image capture, location tracking, and GSM-based data transmission. The provided code suggests that the ESP32-CAM module is programmable, but the specific functionality is not defined in the provided code snippet.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • IoT devices and smart home systems
  • Wireless sensor networks
  • Robotics and automation
  • Wearable technology
  • Data logging and remote monitoring
  • Prototyping and educational projects

Technical Specifications

The ESP32 38PIN microcontroller offers the following key technical features:

Specification Details
Microcontroller Tensilica Xtensa LX6 dual-core processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n
Bluetooth v4.2 BR/EDR and BLE
Operating Voltage 3.3V
Input Voltage Range 5V (via USB) or 7-12V (via VIN pin)
GPIO Pins 30+ (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, Ethernet
Power Consumption Ultra-low power consumption in deep sleep mode (as low as 10 µA)
Dimensions 51mm x 25.5mm

Pin Configuration

The ESP32 38PIN has 38 pins, each with specific functions. Below is a summary of the pin configuration:

Pin Number Pin Name Function
1 EN Enable pin (active high, used to reset the chip)
2 IO0 GPIO0, used for boot mode selection
3 IO1 (TX0) GPIO1, UART0 TX (serial communication)
4 IO3 (RX0) GPIO3, UART0 RX (serial communication)
5-16 IO4-IO15 General-purpose GPIO pins, support ADC, PWM, I2C, SPI, etc.
17 IO16 GPIO16, supports wake-up from deep sleep
18-25 IO17-IO25 General-purpose GPIO pins, support ADC, PWM, I2C, SPI, etc.
26-27 DAC1, DAC2 Digital-to-Analog Converter pins
28-29 GND Ground pins
30 3V3 3.3V power output
31 VIN Input voltage (7-12V)
32-38 IO26-IO39 General-purpose GPIO pins, support ADC, PWM, I2C, SPI, etc.

Usage Instructions

How to Use the ESP32 38PIN in a Circuit

  1. Powering the ESP32:

    • Use a micro-USB cable to power the ESP32 via the USB port (5V input).
    • Alternatively, supply 7-12V to the VIN pin or 3.3V to the 3V3 pin.
  2. Connecting Peripherals:

    • Use GPIO pins for connecting sensors, actuators, or other peripherals.
    • Configure the pins in your code to match the required functionality (e.g., input, output, ADC).
  3. Programming the ESP32:

    • Install the ESP32 board package in the Arduino IDE or use the ESP-IDF framework.
    • Connect the ESP32 to your computer via USB and select the appropriate COM port.
    • Write and upload your code to the ESP32.
  4. Wi-Fi and Bluetooth Setup:

    • Use the built-in libraries (e.g., WiFi.h for Wi-Fi and BluetoothSerial.h for Bluetooth) to configure wireless communication.

Example Code for Arduino IDE

The following example demonstrates how to connect the ESP32 to a Wi-Fi network and blink an LED connected to GPIO2:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  pinMode(2, OUTPUT);   // Set GPIO2 as an output pin

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
}

void loop() {
  digitalWrite(2, HIGH); // Turn the LED on
  delay(1000);           // Wait for 1 second
  digitalWrite(2, LOW);  // Turn the LED off
  delay(1000);           // Wait for 1 second
}

Important Considerations:

  • Always use a level shifter when interfacing the ESP32 with 5V logic devices, as the ESP32 operates at 3.3V.
  • Avoid drawing too much current from the GPIO pins (maximum 12mA per pin).
  • Use proper decoupling capacitors to ensure stable power supply.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi:

    • Ensure the SSID and password are correct.
    • Check if the router is within range and supports 2.4 GHz (ESP32 does not support 5 GHz).
  2. Upload Fails in Arduino IDE:

    • Verify the correct COM port and board are selected in the IDE.
    • Press and hold the "BOOT" button on the ESP32 while uploading the code.
  3. Random Resets or Instability:

    • Ensure the power supply provides sufficient current (at least 500mA).
    • Use a high-quality USB cable to avoid voltage drops.
  4. GPIO Pin Not Working:

    • Check if the pin is being used for another function (e.g., ADC, UART).
    • Avoid using GPIO6-GPIO11, as they are connected to the internal flash memory.

FAQs

Q: Can the ESP32 38PIN be powered directly from a 5V source?
A: Yes, you can power it via the USB port or the VIN pin, which accepts 5V-12V. However, the 3V3 pin requires a regulated 3.3V input.

Q: How do I reset the ESP32?
A: Press the "EN" button on the board to reset the ESP32.

Q: Can I use the ESP32 with a 5V sensor?
A: Yes, but you need a level shifter to convert the 5V signals to 3.3V to avoid damaging the ESP32.

Q: What is the maximum number of devices that can connect to the ESP32 via Bluetooth?
A: The ESP32 supports up to 7 devices in Bluetooth Classic mode, but this may vary depending on the application.

By following this documentation, you can effectively utilize the ESP32 38PIN for your projects and troubleshoot common issues with ease.
