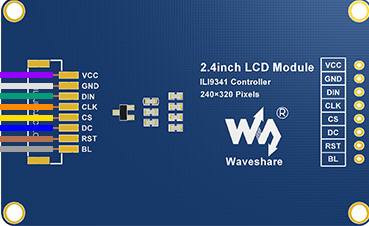

Image of Waveshare 2.4 TFT Display
Cirkit Designer LogoDesign with Waveshare 2.4 TFT Display in Cirkit Designer

Introduction

The Waveshare 2.4-inch TFT Display is a compact, high-resolution thin-film transistor (TFT) module designed to provide a vibrant and colorful interface for electronic projects. With its 240x320 pixel resolution and 65K color depth, this display is ideal for applications requiring graphical output, such as user interfaces, data visualization, and gaming projects. It is commonly used with microcontrollers like Arduino and Raspberry Pi due to its SPI interface and ease of integration.

Explore Projects Built with Waveshare 2.4 TFT Display

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano Controlled TFT Display with Multiple Pushbuttons
Image of rey: A project utilizing Waveshare 2.4 TFT Display in a practical application
This circuit features an Arduino Nano microcontroller connected to a ST7735 128x128 1.44 TFT I2C Color display and multiple pushbuttons. The display is interfaced with the Arduino via digital pins for control signals and SPI pins for data transfer. The pushbuttons are connected to various digital and analog input pins on the Arduino, likely intended for user input to control the display or other functions within the code.
Cirkit Designer LogoOpen Project in Cirkit Designer
RTL8720DN-Based Interactive Button-Controlled TFT Display
Image of coba-coba: A project utilizing Waveshare 2.4 TFT Display in a practical application
This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled TFT Touchscreen Interface
Image of Tablero Moto: A project utilizing Waveshare 2.4 TFT Display in a practical application
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module
Image of ESP32-C6sm-ST7735: A project utilizing Waveshare 2.4 TFT Display in a practical application
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Waveshare 2.4 TFT Display

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of rey: A project utilizing Waveshare 2.4 TFT Display in a practical application
Arduino Nano Controlled TFT Display with Multiple Pushbuttons
This circuit features an Arduino Nano microcontroller connected to a ST7735 128x128 1.44 TFT I2C Color display and multiple pushbuttons. The display is interfaced with the Arduino via digital pins for control signals and SPI pins for data transfer. The pushbuttons are connected to various digital and analog input pins on the Arduino, likely intended for user input to control the display or other functions within the code.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of coba-coba: A project utilizing Waveshare 2.4 TFT Display in a practical application
RTL8720DN-Based Interactive Button-Controlled TFT Display
This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Tablero Moto: A project utilizing Waveshare 2.4 TFT Display in a practical application
Arduino Mega 2560 Controlled TFT Touchscreen Interface
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32-C6sm-ST7735: A project utilizing Waveshare 2.4 TFT Display in a practical application
ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module
This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Graphical user interfaces for embedded systems
  • Data visualization (e.g., temperature, humidity, or sensor readings)
  • Gaming and interactive projects
  • Educational and prototyping purposes
  • Portable devices requiring a compact display

Technical Specifications

Below are the key technical details of the Waveshare 2.4 TFT Display:

Specification Details
Display Type TFT LCD
Screen Size 2.4 inches
Resolution 240 x 320 pixels
Color Depth 65K colors
Interface SPI (Serial Peripheral Interface)
Operating Voltage 3.3V
Backlight LED
Dimensions 70.2mm x 52.2mm x 7.2mm
Weight ~35g

Pin Configuration

The Waveshare 2.4 TFT Display has the following pinout:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (3.3V)
3 SCL Serial Clock Line (SPI clock input)
4 SDA Serial Data Line (SPI data input)
5 RES Reset pin (active low)
6 DC Data/Command control pin
7 CS Chip Select (active low)
8 BL Backlight control (connect to VCC for always-on)

Usage Instructions

Connecting the Display to an Arduino UNO

To use the Waveshare 2.4 TFT Display with an Arduino UNO, follow these steps:

  1. Wiring the Display: Connect the display pins to the Arduino UNO as shown below:

    Display Pin Arduino Pin
    GND GND
    VCC 3.3V
    SCL D13 (SCK)
    SDA D11 (MOSI)
    RES D8
    DC D9
    CS D10
    BL 3.3V
  2. Install Required Libraries:

    • Install the Adafruit_GFX and Adafruit_ILI9341 libraries from the Arduino Library Manager. These libraries provide functions for controlling the display.
  3. Upload Example Code: Use the following example code to display text and graphics on the screen:

    // Include necessary libraries
    #include <Adafruit_GFX.h>       // Graphics library for drawing shapes/text
    #include <Adafruit_ILI9341.h>   // Driver for ILI9341-based TFT displays

    // Define pin connections
    #define TFT_CS 10   // Chip Select pin
    #define TFT_DC 9    // Data/Command pin
    #define TFT_RST 8   // Reset pin

    // Create an instance of the display
    Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);

    void setup() {
      // Initialize the display
      tft.begin();

      // Set rotation (0-3 for different orientations)
      tft.setRotation(1);

      // Fill the screen with a solid color
      tft.fillScreen(ILI9341_BLUE);

      // Display text
      tft.setTextColor(ILI9341_WHITE);  // Set text color
      tft.setTextSize(2);               // Set text size
      tft.setCursor(10, 10);            // Set cursor position
      tft.print("Hello, Waveshare!");   // Print text
    }

    void loop() {
      // Add any additional functionality here
    }


Important Considerations

  • Voltage Levels: The display operates at 3.3V. If using a 5V microcontroller, use level shifters to avoid damaging the display.
  • Backlight Control: The backlight pin (BL) can be connected to a PWM pin on the microcontroller for brightness control.
  • SPI Speed: Ensure the SPI clock speed is within the display's supported range to avoid communication issues.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Display Not Turning On:

    • Verify all connections are secure and correct.
    • Ensure the power supply is 3.3V and not 5V.
    • Check if the backlight pin (BL) is connected to VCC.
  2. No Output on the Screen:

    • Confirm that the Adafruit_GFX and Adafruit_ILI9341 libraries are installed.
    • Double-check the pin definitions in the code match your wiring.
    • Ensure the SPI connections (SCL and SDA) are properly connected.
  3. Flickering or Unstable Display:

    • Reduce the SPI clock speed in the library settings or code.
    • Use shorter wires to minimize signal interference.
  4. Text or Graphics Are Upside Down:

    • Adjust the screen rotation using the setRotation() function in the code.

FAQs

Q: Can I use this display with a Raspberry Pi?
A: Yes, the display is compatible with Raspberry Pi. You can use libraries like Pillow or pygame for graphical output.

Q: How do I control the backlight brightness?
A: Connect the BL pin to a PWM-capable pin on your microcontroller and use PWM signals to adjust brightness.

Q: What is the maximum SPI clock speed supported?
A: The display typically supports SPI clock speeds up to 40MHz, but check the datasheet for exact details.

Q: Can I use this display with 5V logic?
A: No, the display operates at 3.3V logic. Use level shifters if your microcontroller operates at 5V.

By following this documentation, you can successfully integrate the Waveshare 2.4 TFT Display into your projects and troubleshoot common issues effectively.
