The ULN2003A, manufactured by Texas Instruments, is a high-voltage, high-current Darlington transistor array. It consists of seven NPN Darlington pairs, each capable of driving high-power loads such as relays, lamps, stepper motors, and other inductive or resistive devices. The component is designed to interface low-power digital circuits (e.g., microcontrollers) with high-power devices, making it a versatile and widely used component in electronics.

• Driving stepper motors in robotics and automation systems
• Controlling relays in industrial and home automation
• Powering LED arrays and incandescent lamps
• Interfacing microcontrollers with high-current devices
• Driving solenoids in electromechanical systems

• Manufacturer Part ID: ULN2003A
• Manufacturer: Texas Instruments
• Number of Channels: 7 (NPN Darlington pairs)
• Maximum Output Voltage: 50 V
• Maximum Output Current (per channel): 500 mA
• Input Voltage (Logic High): 2.4 V (minimum)
• Input Voltage (Logic Low): 0.8 V (maximum)
• Base Resistors: 2.7 kΩ (integrated for each Darlington pair)
• Clamp Diodes: Built-in freewheeling diodes for inductive load protection
• Package Types: DIP-16, SOIC-16, and others
• Operating Temperature Range: -20°C to 85°C

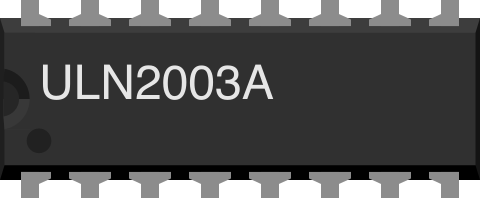

The ULN2003A is typically available in a 16-pin DIP or SOIC package. The pinout is as follows:

1. Power Connections:

   • Connect the GND (Pin 8) to the ground of your circuit.
   • If driving inductive loads (e.g., relays, motors), connect the COM (Pin 16) to the positive supply voltage of the load. This ensures proper operation of the internal clamp diodes.

2. Input Connections:

   • Connect the logic control signals (e.g., from a microcontroller or logic circuit) to the Input pins (Pins 1-7).
   • Ensure the input voltage levels are compatible with the ULN2003A's logic thresholds (e.g., 3.3V or 5V logic).

3. Output Connections:

   • Connect the load (e.g., relay, motor, or LED) to the Output pins (Pins 9-15).
   • Ensure the load's current and voltage requirements do not exceed the ULN2003A's maximum ratings (500 mA per channel, 50 V).

4. Driving a Stepper Motor:

   • The ULN2003A is commonly used to drive unipolar stepper motors. Connect the motor's coil wires to the output pins and control the inputs using a microcontroller.

• Inductive Load Protection: The ULN2003A includes built-in clamp diodes to protect against voltage spikes from inductive loads. Always connect the COM pin to the load's positive supply voltage.
• Thermal Management: Avoid exceeding the maximum current rating per channel (500 mA) or the total package power dissipation. Use heat sinks or proper ventilation if necessary.
• Unused Channels: If any channels are unused, leave their input pins unconnected or tied to ground to avoid floating inputs.

Below is an example of how to use the ULN2003A to control a 5V relay with an Arduino UNO:

// Example: Controlling a relay with ULN2003A and Arduino UNO

const int relayPin = 2; // Arduino pin connected to ULN2003A Input 1

void setup() {
  pinMode(relayPin, OUTPUT); // Set relayPin as an output
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn on the relay
  delay(1000);                 // Wait for 1 second
  digitalWrite(relayPin, LOW);  // Turn off the relay
  delay(1000);                 // Wait for 1 second
}

Note: Ensure the relay's positive terminal is connected to the power supply, and its negative terminal is connected to the ULN2003A's Output 1.

1. Problem: The load is not turning on.

   • Solution: Verify the input signal voltage is high enough (≥ 2.4 V) to activate the Darlington pair.
   • Solution: Check the connections to the load and ensure the load's power supply is properly connected.

2. Problem: The ULN2003A overheats during operation.

   • Solution: Ensure the load current does not exceed 500 mA per channel or the total package power dissipation.
   • Solution: Use fewer active channels simultaneously or add heat dissipation measures.

3. Problem: Voltage spikes damage the circuit.

   • Solution: Ensure the COM pin is connected to the load's positive supply to enable the internal clamp diodes.

• Q: Can the ULN2003A drive a bipolar stepper motor?

  • A: No, the ULN2003A is designed for unipolar stepper motors. For bipolar stepper motors, consider using an H-bridge driver like the L298N.

• Q: Can I use the ULN2003A with a 3.3V microcontroller?

  • A: Yes, as long as the input voltage exceeds the logic high threshold (2.4 V). However, ensure the load's power supply matches its requirements.

• Q: What happens if I exceed the maximum current rating?

  • A: Exceeding the current rating can cause overheating, damage to the component, or failure of the internal transistors. Always stay within the specified limits.
