How to Use INA219: Examples, Pinouts, and Specs

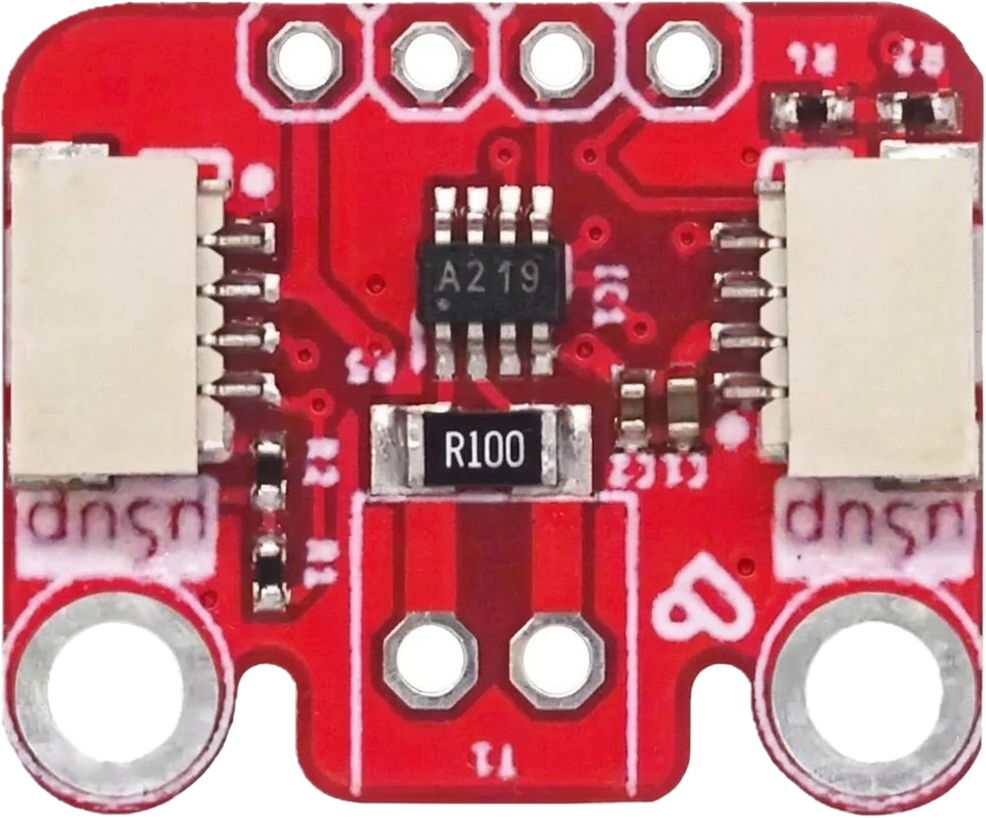

The INA219 by LaskaKit is a high-side current shunt monitor with an integrated I2C interface. This versatile component is capable of measuring both current and voltage, making it ideal for accurate power monitoring in a wide range of applications. By combining precision measurements with a simple digital interface, the INA219 enables efficient power consumption analysis and management.

• Battery management systems
• Power supply monitoring
• Solar power systems
• IoT devices and embedded systems
• Industrial automation and robotics

The INA219 is designed to provide precise measurements with minimal power consumption. Below are its key technical details:

The INA219 module typically comes with the following pinout:

The INA219 is straightforward to use in a circuit, thanks to its I2C interface and high-side current sensing capability. Below are the steps to integrate and use the INA219:

1. Power the INA219: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
2. Connect the I2C Lines:
   • Connect the SDA pin to the microcontroller's SDA pin.
   • Connect the SCL pin to the microcontroller's SCL pin.
   • Use pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if not already present.
3. Connect the Shunt Resistor:
   • Attach the VIN+ pin to the positive side of the load.
   • Attach the VIN- pin to the negative side of the load.
   • Ensure the shunt resistor is appropriately rated for the expected current.

• Shunt Resistor Selection: The default shunt resistor on most INA219 modules is 0.1Ω, suitable for currents up to ±3.2A. For higher currents, replace the shunt resistor with a lower value.
• I2C Address Configuration: The INA219 supports multiple I2C addresses. Check the module's datasheet or documentation for address selection details.
• Voltage Limits: Ensure the bus voltage does not exceed 26V to avoid damaging the component.

Below is an example of how to use the INA219 with an Arduino UNO to measure current, voltage, and power:

#include <Wire.h>
#include <Adafruit_INA219.h>

// Create an INA219 instance
Adafruit_INA219 ina219;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  while (!Serial) {
    delay(10); // Wait for the serial monitor to open
  }

  // Initialize the INA219 sensor
  if (!ina219.begin()) {
    Serial.println("Failed to find INA219 chip");
    while (1) {
      delay(10); // Halt execution if the sensor is not found
    }
  }
  Serial.println("INA219 initialized successfully");
}

void loop() {
  float shuntVoltage = ina219.getShuntVoltage_mV(); // Get shunt voltage in mV
  float busVoltage = ina219.getBusVoltage_V();      // Get bus voltage in V
  float current_mA = ina219.getCurrent_mA();        // Get current in mA
  float power_mW = ina219.getPower_mW();            // Get power in mW

  // Print the measurements to the serial monitor
  Serial.print("Bus Voltage: ");
  Serial.print(busVoltage);
  Serial.println(" V");

  Serial.print("Shunt Voltage: ");
  Serial.print(shuntVoltage);
  Serial.println(" mV");

  Serial.print("Current: ");
  Serial.print(current_mA);
  Serial.println(" mA");

  Serial.print("Power: ");
  Serial.print(power_mW);
  Serial.println(" mW");

  Serial.println("-----------------------------");
  delay(1000); // Wait 1 second before the next reading
}

1. No I2C Communication:

   • Ensure the SDA and SCL lines are correctly connected.
   • Verify that pull-up resistors are present on the I2C lines.
   • Check the I2C address of the INA219 and ensure it matches the address in your code.

2. Incorrect Readings:

   • Verify the shunt resistor value and ensure it matches the expected current range.
   • Check for loose or incorrect connections on the VIN+ and VIN- pins.
   • Ensure the bus voltage does not exceed the 26V limit.

3. Sensor Not Detected:

   • Confirm that the INA219 is powered correctly (VCC and GND connections).
   • Use an I2C scanner sketch to detect the device on the I2C bus.

Q: Can the INA219 measure negative currents?
A: Yes, the INA219 can measure bidirectional currents. Ensure the shunt resistor is connected correctly for accurate readings.

Q: What is the maximum current the INA219 can measure?
A: The maximum measurable current depends on the shunt resistor value. With the default 0.1Ω resistor, the range is ±3.2A. For higher currents, use a lower-value shunt resistor.

Q: Can I use the INA219 with a 3.3V microcontroller?
A: Yes, the INA219 operates with both 3.3V and 5V logic levels, making it compatible with most microcontrollers.

Q: How do I change the I2C address of the INA219?
A: The I2C address can be configured by adjusting the address pins (A0 and A1) on the module. Refer to the module's datasheet for specific address configurations.
