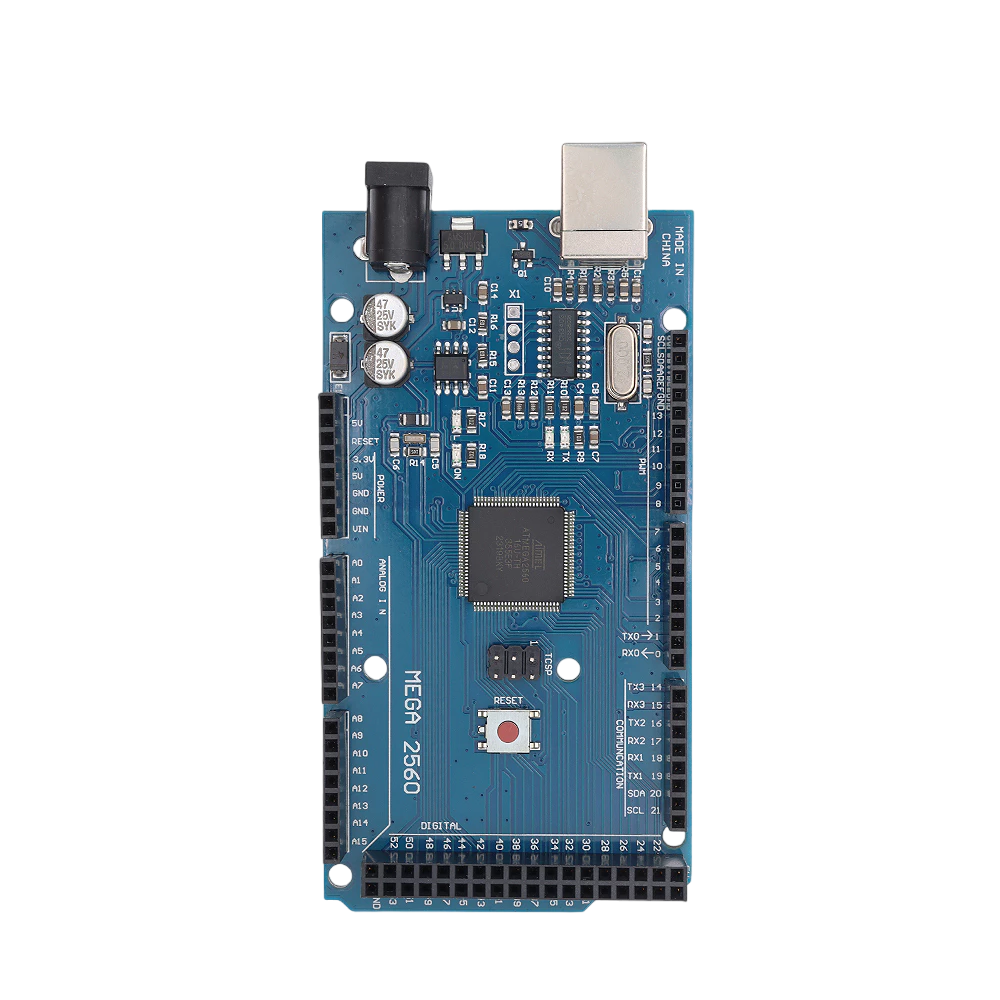

The Arduino 2560 is a microcontroller board based on the ATmega2560. It is designed for advanced projects requiring a large number of input/output pins and greater processing power. The board features 54 digital input/output pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection for programming and power, a power jack, an ICSP header, and a reset button.
The Arduino 2560 is widely used in robotics, IoT applications, and other interactive projects. Its versatility and high pin count make it ideal for complex prototypes and systems requiring multiple sensors, actuators, or communication interfaces.
Explore Projects Built with Arduino 2560
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit utilizes an Arduino Mega 2560 and an Arduino UNO to interface with various sensors including an ultrasonic sensor, a GPS module, a temperature and humidity sensor, a light sensor, and a barometric pressure sensor. The Arduino Mega 2560 handles the ultrasonic sensor and GPS module, while the Arduino UNO manages the barometric pressure sensor, with both microcontrollers programmed to read sensor data and potentially control other devices.
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
This circuit is a multi-functional embedded system using an Arduino Mega 2560 as the central controller. It interfaces with various peripherals including a DS3231 RTC for timekeeping, an NRF24L01 for wireless communication, a KY-023 joystick for user input, a 4x4 keypad for additional input, and a TM1637 display for output. The system is powered by a combination of 3.3V and 5V sources.
This circuit includes an Arduino Mega 2560 and an Arduino UNO microcontroller, both of which are connected to various sensors, actuators, and a power supply. The Mega 2560 controls stepper motors via drivers, servos, and an LED light strip, while the UNO interfaces with ultrasonic sensors, a motion sensor, and a load cell through an HX711 interface. Additionally, a Raspberry Pi 5 is connected to an LCD and peripherals, and a logic level converter is used for voltage level translation between devices.
Select "Arduino Mega 2560" as the board type in the Tools menu.
Choose the correct COM port for the board.
Write or load your sketch (program) and click the "Upload" button.
Connecting Components:
Use the digital pins for digital sensors, actuators, or communication modules.
Use the analog pins for sensors that output analog signals.
Ensure that the total current drawn by connected components does not exceed the board's limits.
Using Communication Interfaces:
Use UART (pins 0-1, 14-19) for serial communication with other devices.
Use I2C (pins 20-21) for communication with I2C-compatible devices.
Use SPI (pins 50-53) for high-speed communication with SPI devices.
Important Considerations and Best Practices
Avoid exceeding the maximum current ratings for I/O pins (20 mA per pin).
Use external power for high-current components like motors or LEDs.
Use pull-up or pull-down resistors for stable digital input signals.
Always double-check connections to avoid short circuits or damage to the board.
Example Code for Arduino 2560
The following example demonstrates how to blink an LED connected to digital pin 13:
// Blink an LED connected to pin 13
// This example toggles the LED on and off every second.
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
The board is not recognized by the computer:
Ensure the USB cable is properly connected and functional.
Install the necessary drivers for the Arduino 2560.
Check that the correct COM port is selected in the Arduino IDE.
Sketch upload fails:
Verify that "Arduino Mega 2560" is selected as the board type.
Ensure no other program is using the COM port.
Press the reset button on the board before uploading.
Components connected to the board are not working:
Double-check wiring and connections.
Ensure the components are compatible with the Arduino 2560.
Verify that the power supply is sufficient for all connected components.
The board overheats:
Check for short circuits or excessive current draw.
Use an external power supply for high-power components.
FAQs
Q: Can I use the Arduino 2560 with shields designed for other Arduino boards?
A: Yes, the Arduino 2560 is compatible with most Arduino shields, but ensure the shield does not exceed the board's voltage or current limits.
Q: How do I reset the board?
A: Press the reset button on the board or connect the RESET pin to GND momentarily.
Q: Can I power the board with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or VIN pin. Ensure the voltage is within the recommended range (7-12V).
