How to Use Wemos D1: Examples, Pinouts, and Specs

The Wemos D1 (Part ID: D1R32) is a versatile microcontroller board developed by Wemos, based on the ESP8266 Wi-Fi module. It is specifically designed for Internet of Things (IoT) applications, offering seamless wireless communication and easy integration with sensors, actuators, and other peripherals. The board is Arduino-compatible, making it an excellent choice for both beginners and experienced developers.

• Home automation systems
• Wireless sensor networks
• IoT prototyping and development
• Remote monitoring and control
• Smart appliances and devices

The Wemos D1 is packed with features that make it ideal for IoT projects. Below are its key technical specifications:

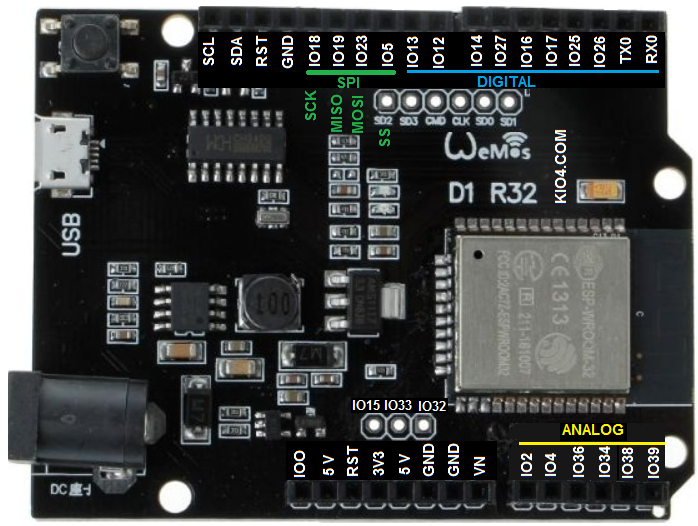

The Wemos D1 features a pinout similar to the Arduino UNO, making it easy to use with existing Arduino shields and libraries. Below is the pin configuration:

The Wemos D1 is straightforward to use, especially for those familiar with Arduino. Below are the steps to get started:

1. Download and install the Arduino IDE from Arduino's official website.
2. Open the Arduino IDE and go to File > Preferences.
3. In the "Additional Board Manager URLs" field, add the following URL:

   http://arduino.esp8266.com/stable/package_esp8266com_index.json


4. Go to Tools > Board > Boards Manager, search for "ESP8266," and install the package.

1. Connect the Wemos D1 to your computer using a micro-USB cable.
2. In the Arduino IDE, select the correct board and port:
   • Board: "LOLIN(WEMOS) D1 R2 & mini"
   • Port: Select the COM port corresponding to your Wemos D1.

Below is an example code to connect the Wemos D1 to a Wi-Fi network and print the IP address:

#include <ESP8266WiFi.h> // Include the ESP8266 Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(10);

  Serial.println();
  Serial.println("Connecting to Wi-Fi...");

  WiFi.begin(ssid, password); // Start connecting to Wi-Fi

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println();
  Serial.println("Wi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  // Add your main code here
}

• Ensure the input voltage to the board does not exceed 5V to avoid damage.
• Use a level shifter when interfacing 5V logic devices with the Wemos D1's 3.3V GPIO pins.
• Avoid connecting peripherals that draw more current than the board can supply.

1. Problem: The board is not detected by the Arduino IDE.

   • Solution: Ensure the correct USB driver is installed. For Windows, install the CH340 driver if required.

2. Problem: Uploading code fails with an error.

   • Solution: Check that the correct board and port are selected in the Arduino IDE. Also, ensure no other application is using the COM port.

3. Problem: The board does not connect to Wi-Fi.

   • Solution: Double-check the SSID and password in your code. Ensure the Wi-Fi network is operational and within range.

4. Problem: GPIO pins are not functioning as expected.

   • Solution: Verify the pin mapping for the Wemos D1, as it differs slightly from the Arduino UNO.

• Q: Can the Wemos D1 be powered via the 5V pin?

  • A: Yes, the board can be powered through the 5V pin, but ensure the voltage is regulated.

• Q: What is the maximum current output of the GPIO pins?

  • A: Each GPIO pin can source or sink up to 12 mA.

• Q: Can I use the Wemos D1 with Arduino libraries?

  • A: Yes, the Wemos D1 is fully compatible with most Arduino libraries.

By following this documentation, you can effectively use the Wemos D1 for your IoT projects.
