How to Use BLDC motor: Examples, Pinouts, and Specs

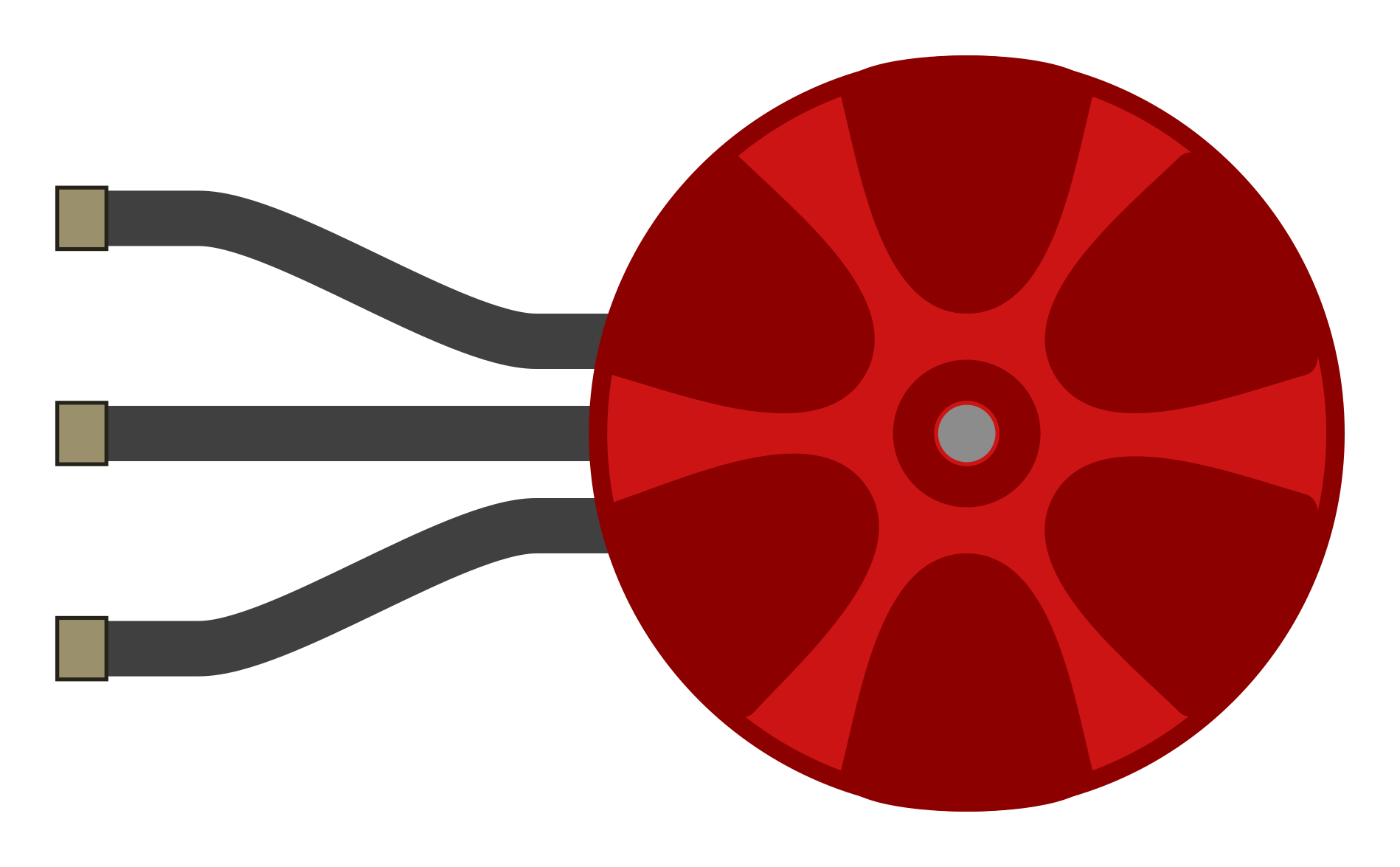

Image of BLDC motor
Cirkit Designer LogoDesign with BLDC motor in Cirkit Designer

Introduction

A Brushless DC (BLDC) motor is an electric motor that operates without brushes, using electronic commutation instead. Unlike traditional brushed motors, BLDC motors rely on electronic controllers to switch the current in the motor windings, ensuring smooth and efficient operation. These motors are known for their high efficiency, reliability, and low maintenance, making them ideal for applications in robotics, electric vehicles, drones, HVAC systems, and various industrial machines.

Explore Projects Built with BLDC motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Quadcopter BLDC Motor Control System with Li-ion Battery
Image of motor fan: A project utilizing BLDC motor in a practical application
This circuit is designed to control four brushless DC (BLDC) motors using four corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared Li-ion battery and is responsible for driving one of the BLDC motors by controlling the phases to the motor windings. The circuit is likely part of a multirotor drone or a similar application requiring precise control of multiple motors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled BLDC Motor Stabilization System with MPU-6050 IMU
Image of rfss: A project utilizing BLDC motor in a practical application
This circuit is designed to control a brushless DC (BLDC) motor using an Arduino UNO microcontroller and an Electronic Speed Controller (ESC). The Arduino reads orientation data from an MPU-6050 inertial measurement unit (IMU) and adjusts the motor's speed to stabilize a system, likely a reaction flywheel stabilization system. Power is supplied by a lipo battery, with voltage regulation provided by an AMS1117 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Quadcopter BLDC Motor Control System with Radio Receiver
Image of rc car: A project utilizing BLDC motor in a practical application
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
GPS-Enabled Remote-Controlled Vehicle with Motion Sensing
Image of UAV Build: A project utilizing BLDC motor in a practical application
This circuit is designed to control a pair of brushless DC (BLDC) motors via electronic speed controllers (ESCs), which are connected to a distribution board that distributes power from a LiPo battery. The circuit includes a Teensy 4.0 microcontroller interfaced with a GPS module and an MPU-6050 for navigation and orientation, as well as multiple servos for additional actuation, all powered through a distribution board. A Mini 360 Buck Converter is used to step down the battery voltage, and a FLYSKY FS-IA6 receiver is included for remote control capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BLDC motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of motor fan: A project utilizing BLDC motor in a practical application
Quadcopter BLDC Motor Control System with Li-ion Battery
This circuit is designed to control four brushless DC (BLDC) motors using four corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared Li-ion battery and is responsible for driving one of the BLDC motors by controlling the phases to the motor windings. The circuit is likely part of a multirotor drone or a similar application requiring precise control of multiple motors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfss: A project utilizing BLDC motor in a practical application
Arduino UNO Controlled BLDC Motor Stabilization System with MPU-6050 IMU
This circuit is designed to control a brushless DC (BLDC) motor using an Arduino UNO microcontroller and an Electronic Speed Controller (ESC). The Arduino reads orientation data from an MPU-6050 inertial measurement unit (IMU) and adjusts the motor's speed to stabilize a system, likely a reaction flywheel stabilization system. Power is supplied by a lipo battery, with voltage regulation provided by an AMS1117 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rc car: A project utilizing BLDC motor in a practical application
Quadcopter BLDC Motor Control System with Radio Receiver
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UAV Build: A project utilizing BLDC motor in a practical application
GPS-Enabled Remote-Controlled Vehicle with Motion Sensing
This circuit is designed to control a pair of brushless DC (BLDC) motors via electronic speed controllers (ESCs), which are connected to a distribution board that distributes power from a LiPo battery. The circuit includes a Teensy 4.0 microcontroller interfaced with a GPS module and an MPU-6050 for navigation and orientation, as well as multiple servos for additional actuation, all powered through a distribution board. A Mini 360 Buck Converter is used to step down the battery voltage, and a FLYSKY FS-IA6 receiver is included for remote control capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a typical BLDC motor. Note that specific values may vary depending on the model and manufacturer.

General Specifications

Parameter Typical Range/Value
Operating Voltage 12V - 48V
Rated Power 10W - 10kW
Speed Range 1,000 - 20,000 RPM
Torque Range 0.01 Nm - 10 Nm
Efficiency 85% - 95%
Number of Poles 2 - 14
Commutation Type Electronic (Hall sensors or sensorless)

Pin Configuration (for BLDC motors with Hall sensors)

Pin Number Pin Name Description
1 Phase A Connection to motor winding A
2 Phase B Connection to motor winding B
3 Phase C Connection to motor winding C
4 Hall Sensor A Output from Hall sensor A
5 Hall Sensor B Output from Hall sensor B
6 Hall Sensor C Output from Hall sensor C
7 Vcc Power supply for Hall sensors (typically 5V)
8 GND Ground connection for Hall sensors

Usage Instructions

How to Use the BLDC Motor in a Circuit

  1. Power Supply: Ensure the motor is powered with the correct voltage and current as specified by the manufacturer. Use a regulated DC power supply or battery.
  2. Motor Driver/Controller: A BLDC motor requires a motor driver or controller to operate. The controller manages the commutation process and regulates speed and direction.
    • For motors with Hall sensors, connect the Hall sensor outputs to the controller.
    • For sensorless motors, ensure the controller supports sensorless operation.
  3. Connections:
    • Connect the motor windings (Phase A, B, C) to the corresponding outputs on the motor driver.
    • If using Hall sensors, connect the Hall sensor pins (A, B, C, Vcc, GND) to the controller.
  4. Control Signal: Provide a control signal (e.g., PWM) to the motor driver to adjust speed and direction.

Important Considerations and Best Practices

  • Heat Management: BLDC motors can generate heat during operation. Ensure proper ventilation or use a heatsink if necessary.
  • Current Limiting: Use a motor driver with current-limiting features to prevent damage to the motor.
  • Startup Torque: Sensorless BLDC motors may require a specific startup sequence to generate initial torque.
  • Noise Reduction: Use capacitors or filters to minimize electrical noise in the circuit.

Example: Controlling a BLDC Motor with Arduino UNO

Below is an example of controlling a BLDC motor using an Arduino UNO and an ESC (Electronic Speed Controller).

// Example: Controlling a BLDC motor with Arduino UNO and ESC
#include <Servo.h> // Include the Servo library to control the ESC

Servo esc; // Create a Servo object to control the ESC

void setup() {
  esc.attach(9); // Attach the ESC signal wire to pin 9 on Arduino
  esc.writeMicroseconds(1000); // Send minimum throttle signal to initialize ESC
  delay(2000); // Wait for ESC to initialize
}

void loop() {
  esc.writeMicroseconds(1500); // Set throttle to 50% (1500 µs)
  delay(5000); // Run motor at 50% throttle for 5 seconds

  esc.writeMicroseconds(1000); // Stop the motor (minimum throttle)
  delay(5000); // Wait for 5 seconds before restarting
}

Notes:

  • Ensure the ESC is compatible with the BLDC motor and power supply.
  • Calibrate the ESC if required (refer to the ESC documentation).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin:

    • Check all connections, especially the motor windings and Hall sensor wires.
    • Ensure the power supply voltage matches the motor's requirements.
    • Verify that the motor driver/controller is functioning correctly.
  2. Motor Vibrates but Does Not Rotate:

    • This may indicate incorrect phase wiring. Swap any two phase wires and test again.
    • For sensorless motors, ensure the controller is configured for sensorless operation.
  3. Overheating:

    • Check for excessive current draw. Use a current-limiting motor driver.
    • Ensure proper ventilation or cooling for the motor.
  4. No Response from ESC:

    • Verify that the ESC is receiving a valid PWM signal from the Arduino.
    • Ensure the ESC is properly calibrated and initialized.

FAQs

Q: Can I run a BLDC motor without a controller?
A: No, a BLDC motor requires a controller to manage the commutation process. Without a controller, the motor cannot operate.

Q: What is the difference between a sensored and sensorless BLDC motor?
A: Sensored BLDC motors use Hall sensors to detect rotor position, enabling precise control. Sensorless motors rely on back-EMF signals for commutation, which may result in less precise control at low speeds.

Q: How do I reverse the direction of a BLDC motor?
A: To reverse the motor's direction, swap any two of the three phase wires (A, B, C) connected to the motor driver.

Q: Can I use a BLDC motor for regenerative braking?
A: Yes, many BLDC motor controllers support regenerative braking, which allows the motor to act as a generator and feed energy back into the power source.

Q: What is the lifespan of a BLDC motor?
A: BLDC motors have a long lifespan due to the absence of brushes, typically lasting tens of thousands of hours with proper maintenance.
