How to Use DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module: Examples, Pinouts, and Specs

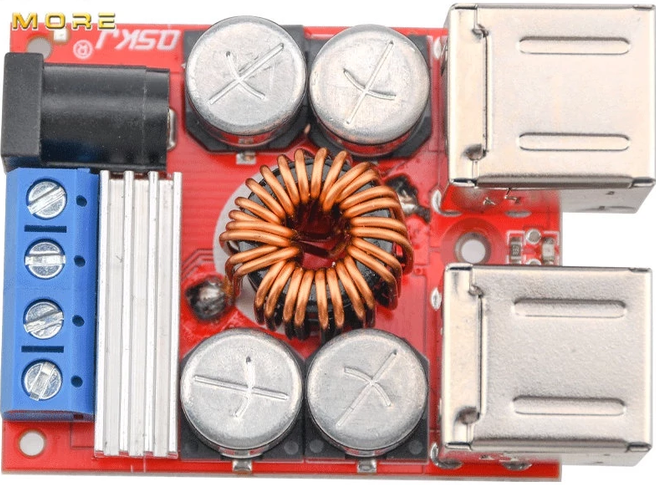

Image of DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module
Cirkit Designer LogoDesign with DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in Cirkit Designer

Introduction

The DIYMORE 4 USB Buck Power Supply Module is a compact and efficient DC-DC step-down converter designed to provide a stable 5V output from an input voltage range of 8V to 35V. With a maximum output current of 8A, this module is ideal for powering multiple USB devices simultaneously. It features four USB output ports, making it suitable for applications such as charging smartphones, powering Raspberry Pi boards, or other USB-powered devices.

Explore Projects Built with DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of USB Charging port: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing DIYMORE 4 USB Buck 8V-35V to 5V 8A Power Supply Module in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Charging multiple USB devices (e.g., smartphones, tablets, power banks)
  • Powering single-board computers like Raspberry Pi or Arduino
  • Supplying power to USB-powered peripherals (e.g., LED strips, fans)
  • Use in automotive or solar power systems for USB device charging

Technical Specifications

Below are the key technical details of the DIYMORE 4 USB Buck Power Supply Module:

Parameter Value
Input Voltage Range 8V to 35V
Output Voltage 5V (fixed)
Maximum Output Current 8A
USB Ports 4
Efficiency Up to 95% (depending on load)
Operating Temperature -40°C to +85°C
Dimensions 60mm x 50mm x 20mm
Weight Approximately 50g

Pin Configuration and Descriptions

The module has the following input and output connections:

Pin/Port Description
VIN+ Positive input voltage terminal (connect to 8V-35V DC source)
VIN- Negative input voltage terminal (connect to ground of the DC source)
USB Ports Four USB Type-A output ports providing 5V DC (shared maximum current: 8A total)

Usage Instructions

How to Use the Module in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of your DC power source (8V-35V) to the VIN+ pin.
    • Connect the negative terminal of your DC power source to the VIN- pin.
    • Ensure the input voltage is within the specified range to avoid damaging the module.
  2. Connect USB Devices:

    • Plug your USB-powered devices into the USB output ports.
    • The module will automatically regulate the input voltage to provide a stable 5V output.
  3. Power On:

    • Turn on the DC power source. The module will begin supplying power to the connected USB devices.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is between 8V and 35V. Exceeding this range may damage the module.
  • Current Limitations: The total current drawn by all connected USB devices should not exceed 8A.
  • Heat Dissipation: At high loads, the module may generate heat. Ensure adequate ventilation or use a heatsink if necessary.
  • Polarity Protection: Double-check the polarity of the input connections to avoid damage.
  • USB Cable Quality: Use high-quality USB cables to minimize voltage drops and ensure efficient power delivery.

Example: Using the Module with an Arduino UNO

The module can be used to power an Arduino UNO via its USB port. Below is an example of how to connect the module:

  1. Connect a 12V DC power source to the VIN+ and VIN- terminals of the module.
  2. Plug the Arduino UNO into one of the USB output ports using a USB cable.
  3. The module will provide a stable 5V supply to the Arduino UNO.

Here is a simple Arduino sketch to test the setup:

// Simple LED Blink Test for Arduino UNO
// This sketch blinks the onboard LED to verify power supply functionality.

void setup() {
  pinMode(LED_BUILTIN, OUTPUT); // Set the onboard LED pin as an output
}

void loop() {
  digitalWrite(LED_BUILTIN, HIGH); // Turn the LED on
  delay(1000);                     // Wait for 1 second
  digitalWrite(LED_BUILTIN, LOW);  // Turn the LED off
  delay(1000);                     // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input voltage is outside the specified range or connections are incorrect.
    • Solution: Verify that the input voltage is between 8V and 35V. Check the polarity of the input connections.
  2. Overheating:

    • Cause: High current draw or insufficient ventilation.
    • Solution: Reduce the load or ensure proper airflow around the module. Consider adding a heatsink.
  3. USB Devices Not Charging:

    • Cause: Faulty USB cables or excessive current draw.
    • Solution: Use high-quality USB cables and ensure the total current does not exceed 8A.
  4. Voltage Drop on USB Ports:

    • Cause: Long or low-quality USB cables.
    • Solution: Use shorter, high-quality cables to minimize voltage drop.

FAQs

Q: Can I use this module to power a Raspberry Pi?
A: Yes, the module can power a Raspberry Pi via one of its USB ports. Ensure the total current drawn by all connected devices does not exceed 8A.

Q: Is the module protected against reverse polarity?
A: No, the module does not have built-in reverse polarity protection. Double-check the input connections before powering on.

Q: Can I use this module in an automotive application?
A: Yes, the module is suitable for automotive use, as long as the input voltage remains within the 8V-35V range.

Q: What happens if I exceed the 8A current limit?
A: Exceeding the current limit may cause the module to overheat or shut down. Always ensure the total load is within the specified limit.
