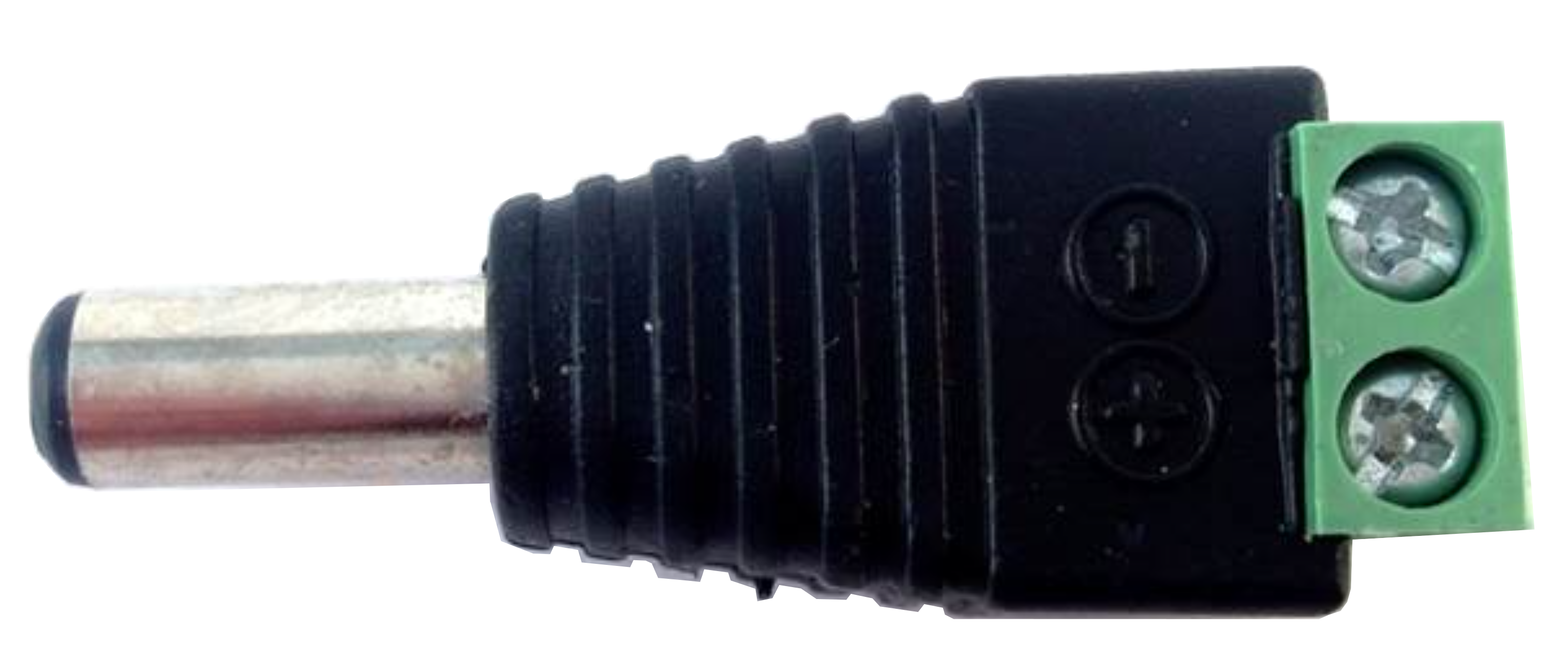

The Universal Barrel Jack Male is a cylindrical power connector designed for reliable and standardized power supply connections. It features a central pin for positive voltage and an outer sleeve for ground, making it a widely used component in electronic devices. This connector is ideal for providing DC power to a variety of circuits and devices, including development boards, small appliances, and DIY electronics projects.
Explore Projects Built with Universal Barrel Jack Male
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
This circuit is a reverse vending machine for plastic bottles and cans, utilizing an Arduino Mega 2560 to interface with various sensors and actuators. It includes ultrasonic sensors for distance measurement, a load cell for weight measurement, micro servos for actuation, and a GSM module for communication. The system also features an LCD display for user interaction and uses inductive and photoelectric sensors for object detection.
Powering development boards such as Arduino, Raspberry Pi (via adapters), and other microcontrollers.
Supplying power to small electronic devices like routers, modems, and LED strips.
DIY electronics projects requiring a standardized DC power input.
Prototyping circuits with external power supplies.
Technical Specifications
Below are the key technical details for the Universal Barrel Jack Male:
Parameter
Specification
Manufacturer
Generic
Manufacturer Part ID
Universal Barrel Jack Male
Connector Type
Barrel Jack (Male)
Outer Diameter
5.5 mm (typical)
Inner Diameter
2.1 mm (typical)
Voltage Rating
Up to 24V DC
Current Rating
Up to 5A
Polarity
Center pin: Positive, Outer sleeve: Ground
Material
Plastic housing with metal contacts
Operating Temperature
-20°C to 70°C
Pin Configuration and Descriptions
The Universal Barrel Jack Male has two main contact points:
Pin
Description
Center Pin
Positive voltage terminal (V+)
Outer Sleeve
Ground terminal (GND)
Usage Instructions
How to Use the Component in a Circuit
Identify Polarity: Ensure that the power supply matches the polarity of the barrel jack. The center pin is typically positive (V+), and the outer sleeve is ground (GND). Verify this with a multimeter if unsure.
Connect to Power Source: Insert the barrel jack into a compatible female connector or socket. Ensure a snug fit to avoid loose connections.
Wire the Terminals: If soldering the barrel jack to a circuit, connect the center pin to the positive voltage rail and the outer sleeve to the ground rail.
Test the Connection: Before powering the circuit, double-check all connections to ensure proper polarity and avoid short circuits.
Important Considerations and Best Practices
Voltage and Current Ratings: Do not exceed the specified voltage (24V DC) or current (5A) ratings to prevent damage to the connector or the circuit.
Polarity Check: Always verify the polarity of the power supply to avoid reverse polarity damage.
Secure Connections: Ensure the barrel jack is firmly connected to the female socket to prevent intermittent power issues.
Heat Management: If operating at high currents, ensure proper ventilation to avoid overheating.
Example: Connecting to an Arduino UNO
The Universal Barrel Jack Male is commonly used to power an Arduino UNO via its DC power jack. Below is an example of how to connect and use it:
Use a compatible DC power adapter with a 5.5mm outer diameter and 2.1mm inner diameter barrel jack.
Ensure the adapter provides 7-12V DC output (recommended for Arduino UNO).
Plug the barrel jack into the Arduino UNO's DC power input.
Arduino Code Example
If powering sensors or modules via the Arduino, you can use the following code to test the setup:
// Simple LED Blink Test
// Ensure the Arduino is powered via the Universal Barrel Jack Male
// connected to a compatible DC power adapter.
int ledPin = 13; // Built-in LED pin on Arduino UNO
void setup() {
pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
Issue
Solution
Barrel jack does not fit the female socket.
Ensure the barrel jack dimensions (5.5mm OD, 2.1mm ID) match the socket specs.
No power to the circuit.
Verify the power supply is functioning and the polarity is correct.
Intermittent power connection.
Check for a secure fit between the male and female connectors.
Overheating of the connector.
Ensure the current does not exceed the 5A rating and provide proper ventilation.
FAQs
Can I use this barrel jack for AC power?
No, the Universal Barrel Jack Male is designed for DC power only. Using it with AC power may damage the connector or the circuit.
What happens if I reverse the polarity?
Reversing the polarity can damage your circuit. Always verify the polarity of the power supply before connecting.
Is this connector waterproof?
No, the Universal Barrel Jack Male is not waterproof. Use it in dry environments or consider waterproof alternatives for outdoor applications.
Can I use this with a 12V 10A power supply?
No, the current rating of this connector is 5A. Exceeding this limit may cause overheating or failure.
By following this documentation, you can effectively use the Universal Barrel Jack Male in your electronic projects while ensuring safety and reliability.
