How to Use ESP 32 Wroom Dev Kit: Examples, Pinouts, and Specs

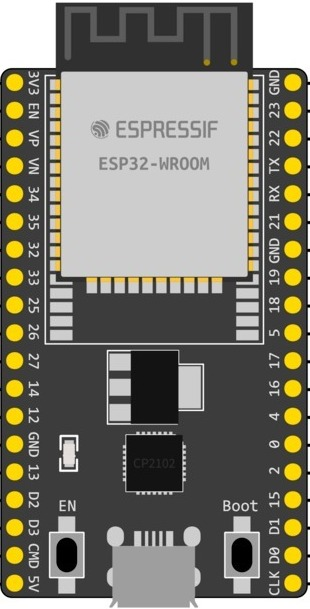

Image of ESP 32 Wroom Dev Kit
Cirkit Designer LogoDesign with ESP 32 Wroom Dev Kit in Cirkit Designer

Introduction

The ESP32 Wroom Dev Kit is a versatile microcontroller development board powered by the ESP32 chip. It features built-in Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. With its dual-core processor, low power consumption, and extensive GPIO options, the ESP32 Wroom Dev Kit is suitable for a wide range of projects, from home automation to wearable devices.

Explore Projects Built with ESP 32 Wroom Dev Kit

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing ESP 32 Wroom Dev Kit in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Arduino UNO Serial Communication Interface
Image of ESP32 Arduino COM SErial: A project utilizing ESP 32 Wroom Dev Kit in a practical application
This circuit integrates an ESP32 Wroom Dev Kit and an Arduino UNO, connected via their TXD/RXD pins for serial communication and sharing a common ground. Both microcontrollers are programmed with basic setup and loop functions, indicating a potential for further development of communication or control tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Vibration Motor Controller with I2C IO Expansion
Image of VIBRATYION: A project utilizing ESP 32 Wroom Dev Kit in a practical application
This circuit features an ESP32 Wroom Dev Kit microcontroller interfaced with an MCP23017 I/O expansion board via I2C communication, utilizing GPIO 21 and GPIO 22 for SDA and SCL lines, respectively. A vibration motor is controlled by an NPN transistor acting as a switch, with a diode for back EMF protection and a resistor to limit base current. The ESP32 can control the motor by sending signals to the MCP23017, which then interfaces with the transistor to turn the motor on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico and ESP32 Wi-Fi Controlled Sensor Interface
Image of pico_esp32: A project utilizing ESP 32 Wroom Dev Kit in a practical application
This circuit integrates a Raspberry Pi Pico and an ESP32 Wroom Dev Kit, interconnected through various GPIO pins and resistors, to enable communication and control between the two microcontrollers. The ESP32 is powered by a 3.3V supply and shares ground with the Raspberry Pi Pico, while specific GPIO pins are used for data exchange. The provided code sketches for the Raspberry Pi Pico suggest a framework for further development of the system's functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP 32 Wroom Dev Kit

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of gps projekt circuit: A project utilizing ESP 32 Wroom Dev Kit in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 Arduino COM SErial: A project utilizing ESP 32 Wroom Dev Kit in a practical application
ESP32 and Arduino UNO Serial Communication Interface
This circuit integrates an ESP32 Wroom Dev Kit and an Arduino UNO, connected via their TXD/RXD pins for serial communication and sharing a common ground. Both microcontrollers are programmed with basic setup and loop functions, indicating a potential for further development of communication or control tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VIBRATYION: A project utilizing ESP 32 Wroom Dev Kit in a practical application
ESP32-Based Vibration Motor Controller with I2C IO Expansion
This circuit features an ESP32 Wroom Dev Kit microcontroller interfaced with an MCP23017 I/O expansion board via I2C communication, utilizing GPIO 21 and GPIO 22 for SDA and SCL lines, respectively. A vibration motor is controlled by an NPN transistor acting as a switch, with a diode for back EMF protection and a resistor to limit base current. The ESP32 can control the motor by sending signals to the MCP23017, which then interfaces with the transistor to turn the motor on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pico_esp32: A project utilizing ESP 32 Wroom Dev Kit in a practical application
Raspberry Pi Pico and ESP32 Wi-Fi Controlled Sensor Interface
This circuit integrates a Raspberry Pi Pico and an ESP32 Wroom Dev Kit, interconnected through various GPIO pins and resistors, to enable communication and control between the two microcontrollers. The ESP32 is powered by a 3.3V supply and shares ground with the Raspberry Pi Pico, while specific GPIO pins are used for data exchange. The provided code sketches for the Raspberry Pi Pico suggest a framework for further development of the system's functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home systems
  • Wireless sensor networks
  • Wearable technology
  • Robotics and automation
  • Prototyping for connected devices
  • Data logging and remote monitoring

Technical Specifications

The ESP32 Wroom Dev Kit is built around the ESP32 chip, which offers robust performance and connectivity options. Below are the key technical details:

Key Specifications

Parameter Value
Microcontroller ESP32 Dual-Core Xtensa LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 4.2 and BLE
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30+ (varies by board version)
ADC Channels 18
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available

Pin Configuration and Descriptions

The ESP32 Wroom Dev Kit features a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Name Functionality Description
VIN Power Input Accepts 5V input from USB or external source
3V3 Power Output Provides 3.3V output for peripherals
GND Ground Common ground for the circuit
EN Enable Resets the chip when pulled low
GPIO0 Boot Mode Selection Used for flashing firmware
GPIO2 General Purpose I/O Can be used as a standard GPIO pin
GPIO12 ADC, Touch Sensor Analog input or capacitive touch sensing
GPIO13 ADC, PWM, Touch Sensor Analog input, PWM, or touch sensing
GPIO21 I2C SDA Data line for I2C communication
GPIO22 I2C SCL Clock line for I2C communication
TX0 UART Transmit Serial communication transmit pin
RX0 UART Receive Serial communication receive pin

Note: Some GPIO pins have specific restrictions or dual functionalities. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

How to Use the ESP32 Wroom Dev Kit in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board package via the Board Manager.
    • Select "ESP32 Dev Module" from the Tools > Board menu.
    • Connect the board to your computer and select the appropriate COM port.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the ESP32.
  4. Uploading Code:

    • Write your code in the Arduino IDE or another supported environment.
    • Click the upload button to flash the code to the ESP32.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin where the LED is connected
#define LED_PIN 2

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels. Use level shifters if necessary.
  • Power Supply: Use a stable power source to avoid unexpected resets or instability.
  • Boot Mode: Avoid pulling GPIO0 low during normal operation, as it may enter bootloader mode.
  • Wi-Fi and Bluetooth: When using wireless features, ensure proper antenna placement for optimal signal strength.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Board Not Detected by Computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for your operating system.
  2. Code Upload Fails:

    • Check that the correct board and COM port are selected in the Arduino IDE.
    • Press and hold the "BOOT" button on the board while uploading the code.
  3. Wi-Fi Connection Issues:

    • Verify the SSID and password in your code.
    • Ensure the router operates on the 2.4 GHz band, as the ESP32 does not support 5 GHz.
  4. Random Resets or Instability:

    • Check the power supply for sufficient current (at least 500 mA recommended).
    • Avoid using GPIO pins that are restricted during boot (e.g., GPIO0, GPIO2).

FAQs

Q: Can I use the ESP32 Wroom Dev Kit with MicroPython?
A: Yes, the ESP32 supports MicroPython. You can flash the MicroPython firmware to the board and use it for development.

Q: How do I enable deep sleep mode?
A: Use the esp_deep_sleep_start() function in your code. Connect GPIO pins to wake the device from deep sleep.

Q: Can I use the ESP32 with a 5V sensor?
A: Yes, but you will need a level shifter to convert the 5V signals to 3.3V.

Q: What is the maximum Wi-Fi range of the ESP32?
A: The range depends on the environment but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively utilize the ESP32 Wroom Dev Kit for your projects and troubleshoot common issues with ease.
