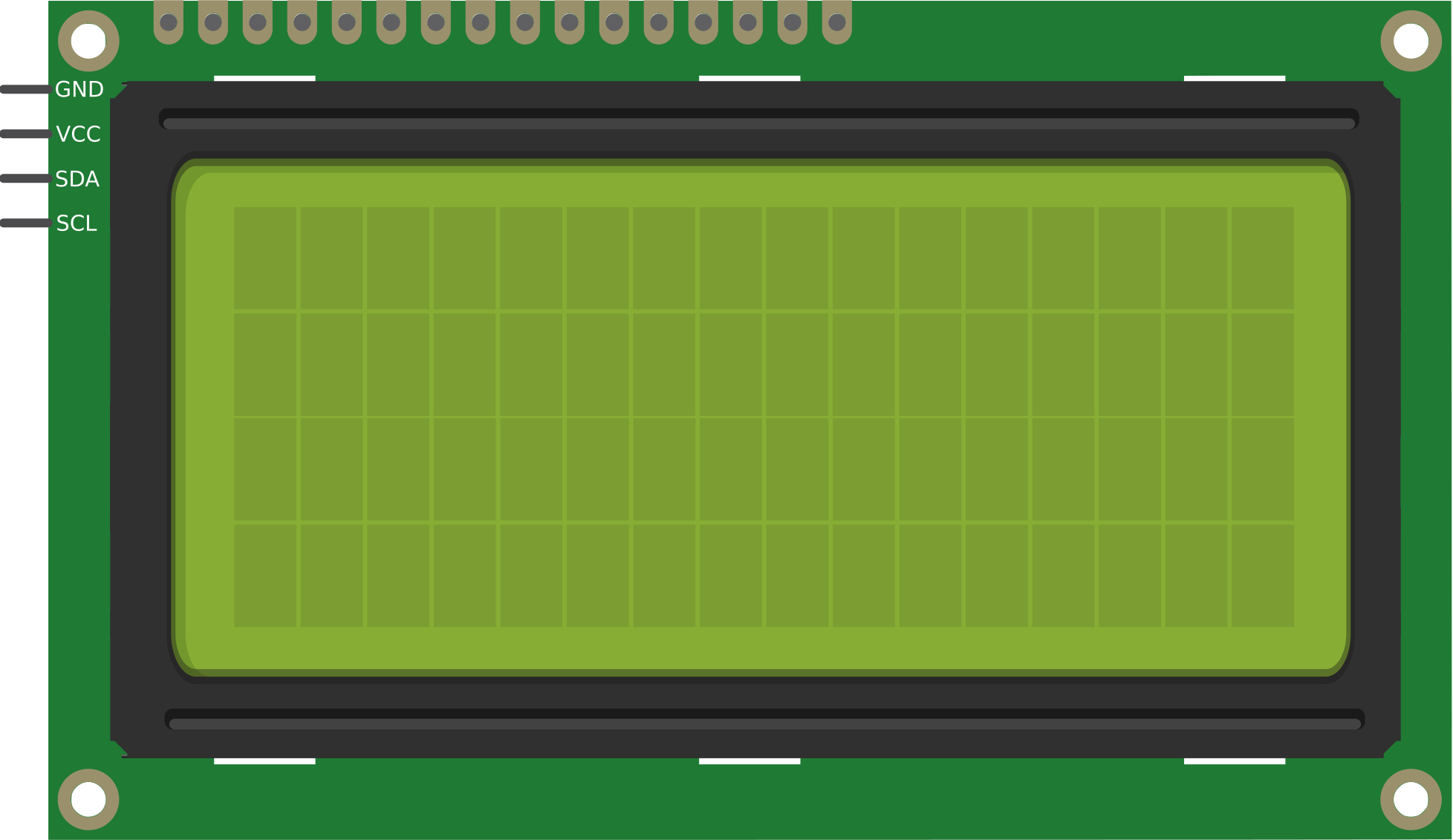

Image of LCD 20X4
Cirkit Designer LogoDesign with LCD 20X4 in Cirkit Designer

Introduction

The LCD 20X4 is a 20-character by 4-line Liquid Crystal Display (LCD) module designed for use in embedded systems and microcontroller projects. Manufactured by Arduino (Part ID: UNO), this display is ideal for applications requiring a clear and efficient way to present textual or numerical data. Its compact design and ease of integration make it a popular choice for hobbyists and professionals alike.

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO I2C 20x4 LCD Display Project
Image of sample: A project utilizing LCD 20X4 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and I2C LCD Display Power Supply Project
Image of lcd display: A project utilizing LCD 20X4 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled I2C LCD Display
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of sample: A project utilizing LCD 20X4 in a practical application
Arduino UNO I2C 20x4 LCD Display Project
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd display: A project utilizing LCD 20X4 in a practical application
Arduino Nano and I2C LCD Display Power Supply Project
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
ESP32-Controlled I2C LCD Display
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying sensor data in IoT projects
  • User interfaces for embedded systems
  • Menu-driven applications
  • Real-time clock displays
  • Educational and prototyping projects

Technical Specifications

The LCD 20X4 module is based on the HD44780 controller, which is widely supported by microcontroller platforms, including Arduino. Below are the key technical details:

General Specifications

Parameter Value
Display Type 20x4 Character LCD
Controller HD44780 or compatible
Operating Voltage 4.7V to 5.3V
Backlight Voltage 4.2V to 4.6V
Current Consumption 1mA (without backlight), ~120mA (with backlight)
Character Size 5x8 dot matrix
Interface Type Parallel (4-bit or 8-bit mode)
Operating Temperature -20°C to 70°C

Pin Configuration and Descriptions

The LCD 20X4 module typically has a 16-pin interface. Below is the pinout and description:

Pin Number Pin Name Description
1 VSS Ground (0V)
2 VDD Power supply (4.7V to 5.3V)
3 VO Contrast adjustment (connect to a potentiometer)
4 RS Register Select (0: Command, 1: Data)
5 RW Read/Write (0: Write, 1: Read)
6 E Enable signal (starts data read/write)
7 D0 Data bit 0 (used in 8-bit mode only)
8 D1 Data bit 1 (used in 8-bit mode only)
9 D2 Data bit 2 (used in 8-bit mode only)
10 D3 Data bit 3 (used in 8-bit mode only)
11 D4 Data bit 4
12 D5 Data bit 5
13 D6 Data bit 6
14 D7 Data bit 7
15 A (LED+) Backlight Anode (connect to +5V via a resistor)
16 K (LED-) Backlight Cathode (connect to Ground)

Usage Instructions

How to Use the LCD 20X4 in a Circuit

  1. Power Supply: Connect the VSS pin to ground and the VDD pin to a 5V power source.
  2. Contrast Adjustment: Connect the VO pin to the middle terminal of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to VDD and GND.
  3. Data Pins: Use either 4-bit or 8-bit mode for communication. For 4-bit mode, connect only D4 to D7 to the microcontroller.
  4. Control Pins: Connect the RS, RW, and E pins to digital pins on the microcontroller.
  5. Backlight: Connect the A (LED+) pin to 5V through a 220Ω resistor and the K (LED-) pin to ground.

Arduino UNO Example Code

Below is an example of how to interface the LCD 20X4 with an Arduino UNO using the LiquidCrystal library:

#include <LiquidCrystal.h>

// Initialize the library with the numbers of the interface pins
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(20, 4);

  // Print a message to the LCD
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("Hello, World!");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("LCD 20x4 Demo");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3 Example");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4 Example");
}

void loop() {
  // Nothing to do here
}

Important Considerations and Best Practices

  • Contrast Adjustment: Ensure the contrast is properly set using a potentiometer. If the text is not visible, adjust the potentiometer until the characters are clear.
  • Backlight Resistor: Always use a resistor (e.g., 220Ω) in series with the backlight to prevent damage.
  • 4-bit vs. 8-bit Mode: Use 4-bit mode to save microcontroller pins unless 8-bit mode is specifically required.
  • Noise Reduction: Use decoupling capacitors (e.g., 0.1µF) near the power pins to reduce electrical noise.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display on the Screen

    • Check the power connections (VSS and VDD).
    • Adjust the contrast using the potentiometer connected to VO.
    • Verify the backlight connections (A and K pins).
  2. Garbled or Incorrect Characters

    • Ensure the data pins (D4-D7) are correctly connected.
    • Verify the RS, RW, and E pin connections.
    • Check the code for correct initialization (e.g., lcd.begin(20, 4)).
  3. Backlight Not Working

    • Confirm the backlight pins (A and K) are connected properly.
    • Use a suitable resistor (e.g., 220Ω) in series with the backlight.
  4. LCD Not Responding to Commands

    • Ensure the RW pin is set to write mode (connect to GND).
    • Verify the Enable (E) pin is toggled correctly in the code.

FAQs

Q: Can I use the LCD 20X4 with a 3.3V microcontroller?
A: The LCD 20X4 is designed for 5V operation. To use it with a 3.3V microcontroller, you will need a level shifter or voltage divider for the data and control pins.

Q: How do I display custom characters?
A: The HD44780 controller supports custom characters. Use the createChar() function in the LiquidCrystal library to define and display custom characters.

Q: Can I use the LCD 20X4 without a backlight?
A: Yes, the LCD will function without a backlight, but visibility may be reduced in low-light conditions.

Q: What is the maximum cable length for connecting the LCD?
A: Keep the cable length as short as possible (preferably under 30cm) to avoid signal degradation and noise issues. Use shielded cables if longer distances are required.
