How to Use ESP32 38 PIN: Examples, Pinouts, and Specs

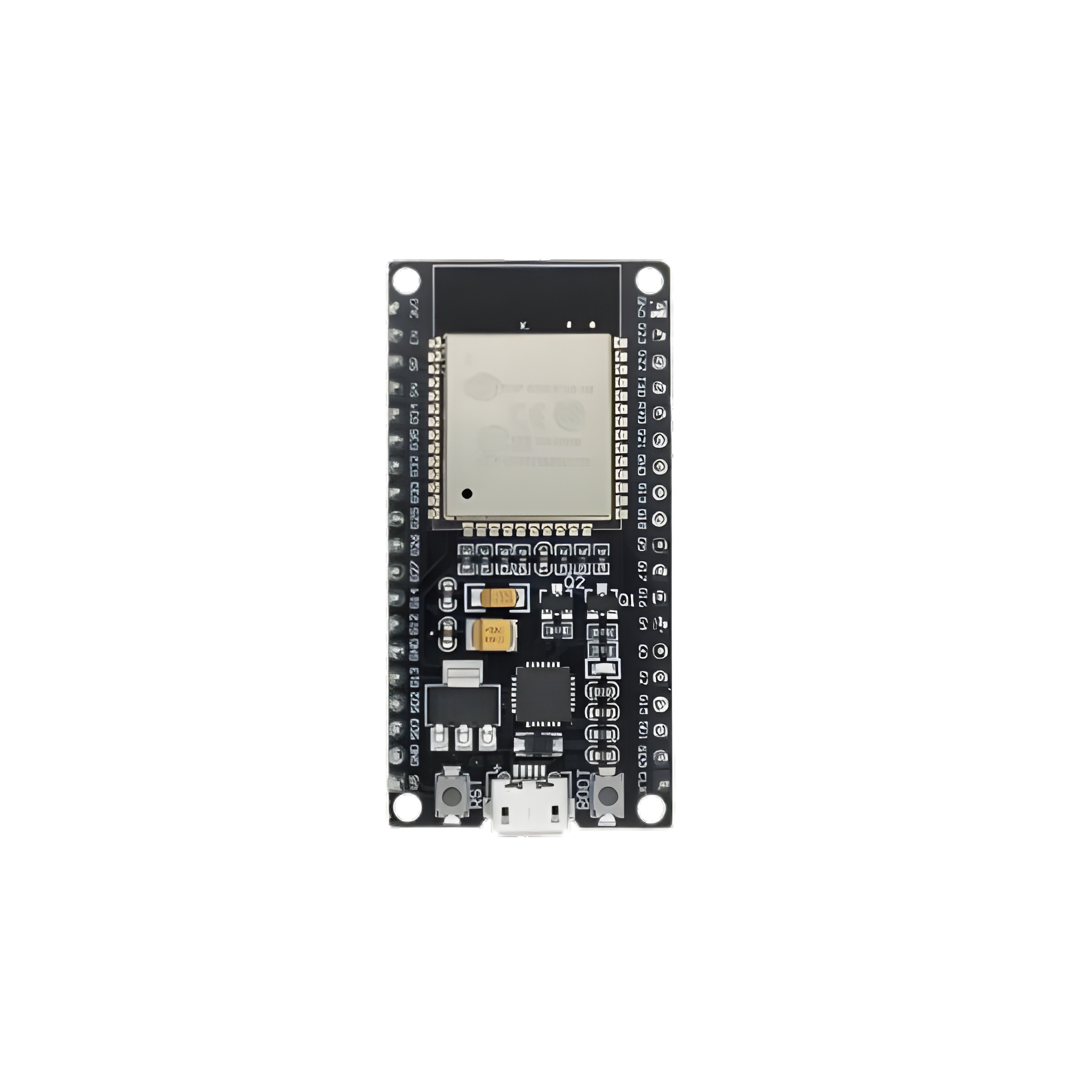

Image of ESP32 38 PIN
Cirkit Designer LogoDesign with ESP32 38 PIN in Cirkit Designer

Introduction

The ESP32 38 PIN Development Board by NodeMCU is a robust microcontroller designed for IoT, embedded systems, and automation projects. It features integrated Wi-Fi and Bluetooth capabilities, making it ideal for wireless communication and control. With 38 GPIO pins, the ESP32 offers extensive interfacing options for sensors, actuators, and other peripherals.

Explore Projects Built with ESP32 38 PIN

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based OLED Display Interface
Image of d: A project utilizing ESP32 38 PIN in a practical application
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled LED System
Image of PIR Tester: A project utilizing ESP32 38 PIN in a practical application
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Display with Camera and Audio Alert System
Image of cam_circuit_design: A project utilizing ESP32 38 PIN in a practical application
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Connectivity Hub with RFID and GPS Tracking
Image of Ccapstone: A project utilizing ESP32 38 PIN in a practical application
This circuit features an ESP32 microcontroller as the central processing unit, interfaced with an ESP32-CAM module for image capture, an RFID-RC522 module for RFID communication, a GPS NEO 6M module for location tracking, and a SIM800L module for GSM communication capabilities. The ESP32 is configured to communicate with these peripherals using GPIO and serial connections, enabling functionalities such as RFID-based identification, image capture, location tracking, and GSM-based data transmission. The provided code suggests that the ESP32-CAM module is programmable, but the specific functionality is not defined in the provided code snippet.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 38 PIN

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of d: A project utilizing ESP32 38 PIN in a practical application
ESP32-Based OLED Display Interface
This circuit features an ESP32 microcontroller connected to an OLED 1.3" display. The ESP32's GPIO pins 21 and 22 are used for I2C communication (SDA and SCL respectively) with the OLED display. The display is powered by the 5V output from the ESP32, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PIR Tester: A project utilizing ESP32 38 PIN in a practical application
ESP32-Based Wi-Fi Controlled LED System
This circuit features two ESP32 microcontrollers communicating via UART, with one controlling an LED through a resistor. The primary ESP32 (ESP32 38 PINS) handles I2C communication and processes serial input to control the LED, while the secondary ESP32 (pocket esp32-c3) sends periodic data over UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cam_circuit_design: A project utilizing ESP32 38 PIN in a practical application
ESP32-Based Smart Display with Camera and Audio Alert System
This circuit features two ESP32 microcontrollers, one standard 30-pin version and one ESP32-CAM module, both sharing a common ground and power supply. The 30-pin ESP32 is interfaced with an I2C LCD 16x2 Screen for display purposes, using its I2C pins (D21 for SDA and D22 for SCL), and controls a buzzer connected to pin D23. Additionally, the ESP32-CAM is connected to the 30-pin ESP32 via serial communication through pins TX2 and RX2 for potential image data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Ccapstone: A project utilizing ESP32 38 PIN in a practical application
ESP32-Based Smart Connectivity Hub with RFID and GPS Tracking
This circuit features an ESP32 microcontroller as the central processing unit, interfaced with an ESP32-CAM module for image capture, an RFID-RC522 module for RFID communication, a GPS NEO 6M module for location tracking, and a SIM800L module for GSM communication capabilities. The ESP32 is configured to communicate with these peripherals using GPIO and serial connections, enabling functionalities such as RFID-based identification, image capture, location tracking, and GSM-based data transmission. The provided code suggests that the ESP32-CAM module is programmable, but the specific functionality is not defined in the provided code snippet.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Robotics and motor control
  • Data logging and remote monitoring
  • Wearable devices
  • Prototyping and educational projects

Technical Specifications

The following table outlines the key technical details of the ESP32 38 PIN Development Board:

Specification Details
Microcontroller ESP32 Dual-Core Xtensa LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
GPIO Pins 38
Wi-Fi Standard 802.11 b/g/n
Bluetooth Bluetooth 4.2 and BLE (Bluetooth Low Energy)
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or VIN pin)
Power Consumption Ultra-low power consumption in deep sleep mode (as low as 10 µA)
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Dimensions 51 mm x 25.5 mm

Pin Configuration and Descriptions

The ESP32 38 PIN Development Board has 38 GPIO pins, each with multiple functions. Below is a summary of the pin configuration:

Pin Name Function(s) Description
VIN Power Input Connect to 5V power source (e.g., USB or external power supply).
GND Ground Common ground for the circuit.
3V3 Power Output Provides 3.3V output for external components.
GPIO0 GPIO, Boot Mode Used for boot mode selection; can also be used as a general-purpose I/O pin.
GPIO2 GPIO, ADC, PWM General-purpose I/O, analog input, or PWM output.
GPIO12-15 GPIO, ADC, PWM, Touch Multi-function pins for analog, digital, or touch sensing.
GPIO16-39 GPIO, ADC, PWM, I2C, SPI, UART General-purpose I/O with support for communication protocols and analog input.
EN Enable Active-high pin to enable or reset the board.
TX0, RX0 UART Communication Default UART pins for serial communication.

Note: Some GPIO pins have specific restrictions or are reserved for internal functions. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

How to Use the ESP32 38 PIN in a Circuit

  1. Powering the Board:

    • Use a USB cable to connect the board to your computer or a 5V power source.
    • Alternatively, supply 5V to the VIN pin and connect GND to the circuit ground.
  2. Programming the ESP32:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select the correct board (NodeMCU-32S) and port in the Arduino IDE.
    • Write your code and upload it to the ESP32 via the USB connection.
  3. Connecting Peripherals:

    • Use the GPIO pins to interface with sensors, actuators, or other devices.
    • Ensure that external components operate at 3.3V logic levels to avoid damaging the ESP32.
  4. Wireless Communication:

    • Use the built-in Wi-Fi and Bluetooth modules for wireless connectivity.
    • Configure the network settings in your code to connect to a Wi-Fi network or pair with Bluetooth devices.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V. Avoid applying 5V directly to GPIO pins. Use level shifters if necessary.
  • Deep Sleep Mode: Utilize the deep sleep mode to reduce power consumption in battery-powered applications.
  • Boot Mode: Ensure GPIO0 is pulled LOW during boot to enter programming mode.
  • Pin Multiplexing: Some pins have multiple functions. Check the pinout diagram to avoid conflicts.

Example Code for Arduino IDE

The following example demonstrates how to connect the ESP32 to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password
const int ledPin = 2;                 // GPIO2 is connected to the onboard LED

void setup() {
  Serial.begin(115200);               // Initialize serial communication
  pinMode(ledPin, OUTPUT);            // Set GPIO2 as an output pin

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
}

void loop() {
  digitalWrite(ledPin, HIGH);         // Turn the LED on
  delay(1000);                        // Wait for 1 second
  digitalWrite(ledPin, LOW);          // Turn the LED off
  delay(1000);                        // Wait for 1 second
}

Tip: Replace Your_SSID and Your_Password with your Wi-Fi credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver (e.g., CP2102 or CH340).
  2. Upload Fails with Timeout Error:

    • Check that GPIO0 is pulled LOW during programming.
    • Press and hold the "BOOT" button while uploading the code.
  3. Wi-Fi Connection Fails:

    • Verify the SSID and password in your code.
    • Ensure the Wi-Fi network is within range and supports 2.4 GHz (ESP32 does not support 5 GHz).
  4. GPIO Pin Not Working:

    • Confirm the pin is not reserved for internal functions.
    • Check for conflicting pin assignments in your code.

FAQs

  • Q: Can the ESP32 operate on battery power?
    A: Yes, the ESP32 can be powered by a LiPo battery via the VIN pin. Use a voltage regulator if needed.

  • Q: How do I reset the ESP32?
    A: Press the "EN" button on the board to reset the microcontroller.

  • Q: Can I use the ESP32 with 5V logic devices?
    A: No, the ESP32 operates at 3.3V logic levels. Use level shifters for compatibility with 5V devices.

This concludes the documentation for the ESP32 38 PIN Development Board. For further details, refer to the official datasheet or community forums.
