How to Use BC547: Examples, Pinouts, and Specs

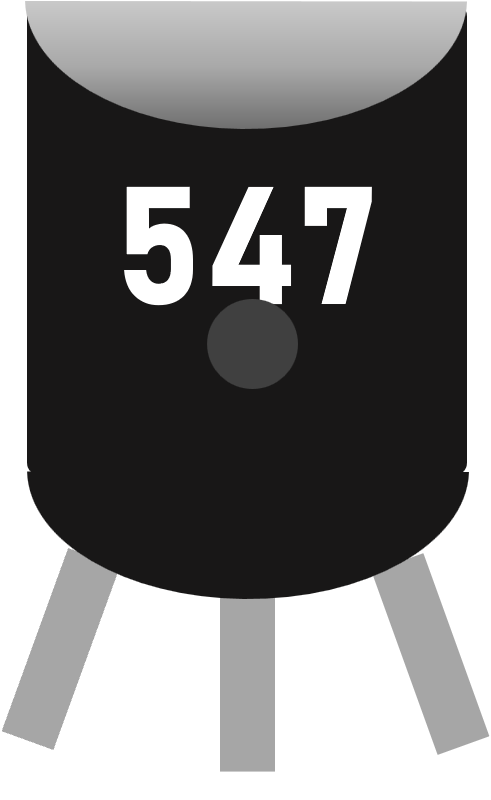

The BC547 is a general-purpose NPN bipolar junction transistor (BJT) widely used in low-power amplification and switching applications. It is a reliable and versatile component, making it a popular choice for hobbyists and professionals alike. With a maximum collector current of 100 mA and a maximum voltage rating of 45 V, the BC547 is suitable for a variety of electronic circuits, including signal amplification, small motor control, and digital switching.

• Signal amplification in audio and RF circuits
• Switching small loads such as LEDs or relays
• Oscillator circuits
• Voltage regulation and current limiting
• General-purpose low-power applications

Below are the key technical details of the BC547 transistor:

The BC547 transistor comes in a TO-92 package with three pins. The pinout is as follows:

Below is a diagram of the BC547 pin configuration (viewed from the flat side of the TO-92 package):

   _______
  |       |
  |       |
  |_______|
   | | |
   1 2 3
   C B E

The BC547 can be used as a switch or an amplifier. Below are the steps to use it in a circuit:

• Connect the collector to the positive terminal of the load (e.g., an LED or relay).
• Connect the emitter to ground.
• Use a resistor (typically 1 kΩ to 10 kΩ) to limit the base current and connect the base to the control signal.
• When a small current flows into the base, the transistor allows a larger current to flow from the collector to the emitter, turning the load ON.

• Connect the input signal to the base through a coupling capacitor and a base resistor.
• Connect the collector to the positive supply through a load resistor.
• The amplified signal can be obtained from the collector.

• Always use a base resistor to limit the base current and prevent damage to the transistor.
• Ensure the collector current does not exceed 100 mA and the voltage ratings are not exceeded.
• Use a heatsink if the transistor is dissipating significant power.

The BC547 can be used to control an LED with an Arduino UNO. Below is an example circuit and code:

• Connect the collector of the BC547 to one terminal of the LED.
• Connect the other terminal of the LED to a 220 Ω resistor, and then to the positive supply (5V).
• Connect the emitter of the BC547 to ground.
• Connect the base of the BC547 to an Arduino digital pin (e.g., pin 9) through a 1 kΩ resistor.

// Define the pin connected to the BC547 base
const int transistorBasePin = 9;

void setup() {
  // Set the transistor base pin as an output
  pinMode(transistorBasePin, OUTPUT);
}

void loop() {
  // Turn the LED ON by sending a HIGH signal to the transistor base
  digitalWrite(transistorBasePin, HIGH);
  delay(1000); // Keep the LED ON for 1 second

  // Turn the LED OFF by sending a LOW signal to the transistor base
  digitalWrite(transistorBasePin, LOW);
  delay(1000); // Keep the LED OFF for 1 second
}

1. Transistor Not Switching Properly:

   • Cause: Insufficient base current.
   • Solution: Check the base resistor value. Ensure it allows enough current to flow into the base.

2. Overheating:

   • Cause: Exceeding the maximum collector current or power dissipation.
   • Solution: Ensure the load current is within the transistor's limits. Use a heatsink if necessary.

3. No Output Signal:

   • Cause: Incorrect pin connections or damaged transistor.
   • Solution: Verify the pin connections and replace the transistor if needed.

4. LED Not Turning ON:

   • Cause: Incorrect resistor value or insufficient base current.
   • Solution: Check the LED resistor value and ensure the base resistor is appropriate.

Q1: Can the BC547 handle high-power loads?
A1: No, the BC547 is designed for low-power applications with a maximum collector current of 100 mA. For high-power loads, consider using a power transistor like the TIP120.

Q2: What is the difference between BC547A, BC547B, and BC547C?
A2: The difference lies in their DC current gain (hFE) range:

• BC547A: 110 to 220
• BC547B: 200 to 450
• BC547C: 420 to 800

Q3: Can I use the BC547 for AC signal amplification?
A3: Yes, the BC547 is suitable for amplifying small AC signals in audio and RF circuits.

Q4: How do I test if my BC547 is working?
A4: Use a multimeter in diode mode to check the base-emitter and base-collector junctions. A working transistor will show a forward voltage drop (~0.6V) in one direction and no conduction in the reverse direction.

By following this documentation, you can effectively use the BC547 transistor in your electronic projects!
