How to Use Not Gate Chip 7404: Examples, Pinouts, and Specs

The 7404 NOT Gate Chip, manufactured by RBBK, is a hex inverter integrated circuit (IC) that contains six independent NOT gates. Each gate inverts the input signal, outputting a high signal when the input is low and vice versa. This IC is widely used in digital logic circuits for signal inversion and logic design.

• Digital signal inversion
• Logic circuit design and implementation
• Oscillator circuits
• Signal conditioning
• Microcontroller-based projects

The following table outlines the key technical details of the 7404 NOT Gate Chip:

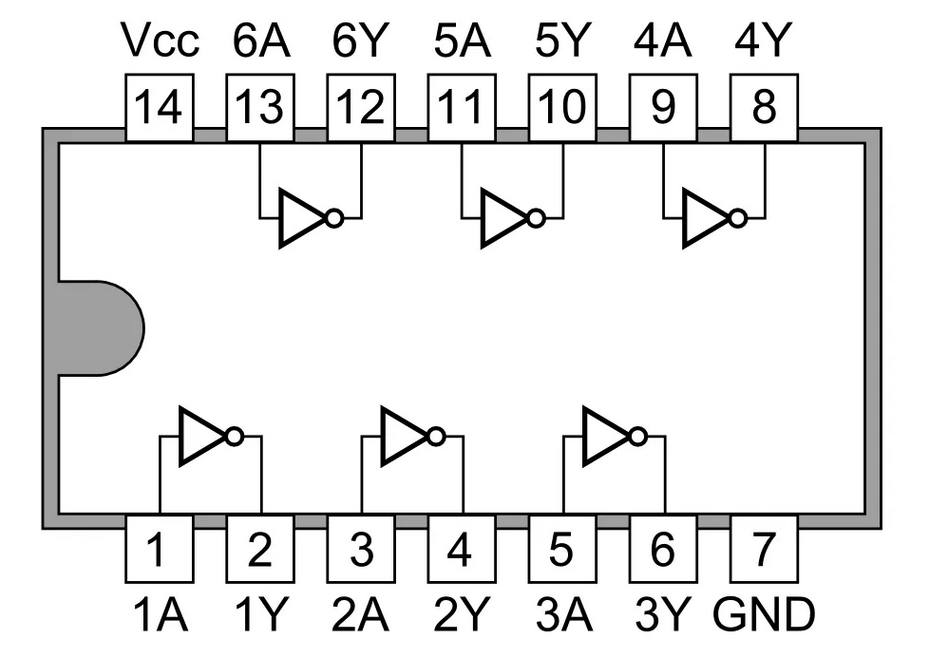

The 7404 IC comes in a 14-pin DIP package. The pinout and descriptions are as follows:

1. Power Supply: Connect pin 14 (Vcc) to a +5V power supply and pin 7 (GND) to ground.
2. Input and Output: Connect the input signal to one of the input pins (A1 to A6). The corresponding output pin (Y1 to Y6) will provide the inverted signal.
3. Load Considerations: Ensure the output current does not exceed 8mA per gate to avoid damaging the IC.
4. Bypass Capacitor: Place a 0.1µF ceramic capacitor between Vcc and GND to filter noise and stabilize the power supply.

Below is an example of using the 7404 to invert a digital signal:

• Input: A push-button switch connected to a pull-up resistor.
• Output: An LED that lights up when the button is not pressed.

+5V ----+----[10kΩ]----+----> A1 (Input to Gate 1)
        |              |
        |              |
      [Switch]         |
        |              |
       GND            Y1 (Output of Gate 1) ----[330Ω]----|>|---- GND

The 7404 can be used with an Arduino UNO to invert a digital signal. Below is an example code snippet:

// Define input and output pins
const int inputPin = 2;  // Input signal connected to Arduino pin 2
const int outputPin = 3; // Output signal connected to Arduino pin 3

void setup() {
  pinMode(inputPin, INPUT);  // Set inputPin as input
  pinMode(outputPin, OUTPUT); // Set outputPin as output
}

void loop() {
  int inputState = digitalRead(inputPin); // Read the input signal
  digitalWrite(outputPin, !inputState);   // Write the inverted signal to output
}

• Voltage Levels: Ensure the input and output voltage levels are within the specified range (0V to 5V).
• Unused Gates: For unused gates, connect the input pins to GND or Vcc to prevent floating inputs, which can cause erratic behavior.
• Heat Dissipation: Avoid exceeding the maximum power dissipation of 500mW to prevent overheating.

1. No Output Signal:

   • Verify that the power supply is correctly connected to Vcc (pin 14) and GND (pin 7).
   • Check for loose or incorrect connections on the input and output pins.

2. Erratic Output:

   • Ensure unused input pins are tied to GND or Vcc to avoid floating inputs.
   • Add a bypass capacitor (0.1µF) between Vcc and GND to filter noise.

3. Overheating:

   • Check if the output current exceeds 8mA per gate.
   • Ensure the IC is not exposed to temperatures beyond its operating range (0°C to 70°C).

Q1: Can the 7404 operate at 3.3V?
A1: No, the 7404 is designed to operate at a supply voltage of 4.75V to 5.25V. For 3.3V operation, consider using a compatible CMOS inverter IC.

Q2: How many NOT gates can I use simultaneously?
A2: All six NOT gates can be used simultaneously, provided the total power dissipation and current limits are not exceeded.

Q3: Can I use the 7404 for analog signals?
A3: No, the 7404 is designed for digital signals only. It cannot process analog signals effectively.

By following this documentation, you can effectively integrate the 7404 NOT Gate Chip into your digital logic circuits.
