Introduction

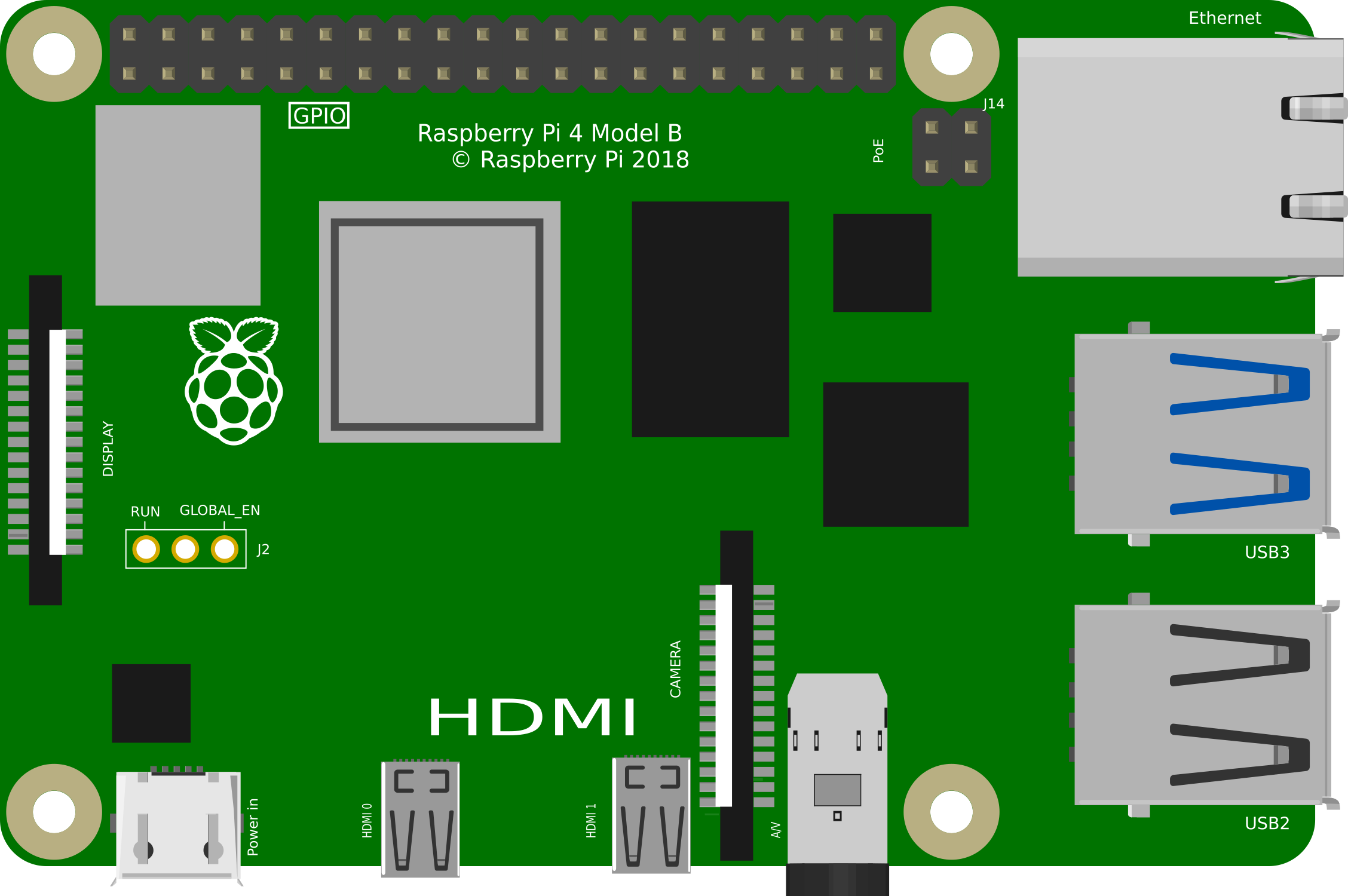

The Raspberry Pi 4 Model B is a compact, affordable single-board computer designed for a wide range of applications. Equipped with a powerful quad-core processor, multiple USB ports, dual HDMI outputs, and GPIO pins, it is ideal for projects in programming, robotics, IoT, and more. Its versatility and affordability make it a popular choice for hobbyists, educators, and professionals alike.

Explore Projects Built with Raspberry Pi 4 Model B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring

This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.

Open Project in Cirkit Designer

Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing

This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.

Open Project in Cirkit Designer

Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors

This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.

Open Project in Cirkit Designer

Raspberry Pi 4B-Controlled Biometric Access System with Dual Stepper Motor Actuation

This circuit features a Raspberry Pi 4B as the central controller, interfacing with various sensors and modules. It includes a vl53l0xv2 time-of-flight sensor and an AS5600 magnetic encoder for position sensing, both connected via I2C (SDA/SCL lines). The circuit also controls two DRV8825 stepper motor drivers connected to NEMA 17 stepper motors, receives temperature data from a DS18B20 sensor, and communicates with a fingerprint scanner for biometric input. A TM1637 display module is included for user feedback. Power management is handled by a buck converter and a 12V power supply, with the Raspberry Pi and other 3.3V components powered through the buck converter's regulated output.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Programming and Education: Ideal for learning programming languages like Python, C++, and Java.
• IoT Projects: Acts as a hub for smart home devices or other IoT systems.
• Media Center: Can be used to build a home theater system with software like Kodi.
• Robotics: Controls motors, sensors, and other components in robotics projects.
• Web Servers: Functions as a lightweight web server for hosting small websites or applications.

Technical Specifications

The Raspberry Pi 4 Model B offers significant improvements over its predecessors, making it suitable for demanding applications.

Key Technical Details

GPIO Pin Configuration

The Raspberry Pi 4 Model B features a 40-pin GPIO header. Below is a summary of the pin configuration:

For a complete GPIO pinout diagram, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 4 Model B in a Circuit

1. Powering the Raspberry Pi: Use a 5V/3A USB-C power supply to power the board. Ensure the power supply is reliable to avoid voltage drops.
2. Connecting Peripherals: Attach a keyboard, mouse, and monitor via the USB and HDMI ports. Use a microSD card with a pre-installed operating system (e.g., Raspberry Pi OS).
3. Using GPIO Pins: Connect sensors, LEDs, or other components to the GPIO pins. Be cautious about voltage levels to avoid damaging the board.
4. Networking: Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

Important Considerations and Best Practices

• Heat Management: The Raspberry Pi 4 Model B can get warm under heavy loads. Use a heatsink or fan for cooling.
• Static Electricity: Handle the board carefully to avoid damage from static electricity. Use an anti-static wrist strap if possible.
• Power Supply: Always use a high-quality power supply to ensure stable operation.
• GPIO Safety: Avoid connecting components that draw more current than the GPIO pins can handle (maximum 16mA per pin, 50mA total).

Example: Blinking an LED with GPIO and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

# Import necessary libraries
import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)  # Use Broadcom pin numbering
GPIO.setup(17, GPIO.OUT)  # Set GPIO pin 17 as an output

try:
    while True:
        GPIO.output(17, GPIO.HIGH)  # Turn LED on
        time.sleep(1)  # Wait for 1 second
        GPIO.output(17, GPIO.LOW)  # Turn LED off
        time.sleep(1)  # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Connections:

• Connect the positive leg of the LED to GPIO pin 17.
• Connect the negative leg of the LED to a 330-ohm resistor, and then to a ground pin.

Troubleshooting and FAQs

Common Issues

1. No Display on Monitor:

   • Ensure the micro HDMI cable is securely connected.
   • Verify that the monitor is set to the correct input source.
   • Check if the operating system is properly installed on the microSD card.

2. Wi-Fi Not Connecting:

   • Verify the Wi-Fi credentials.
   • Ensure the Raspberry Pi is within range of the router.
   • Update the operating system to the latest version.

3. Overheating:

   • Use a heatsink or fan to manage heat.
   • Avoid placing the Raspberry Pi in an enclosed space without ventilation.

4. GPIO Not Working:

   • Double-check the pin connections and ensure the correct GPIO numbering is used in the code.
   • Verify that the GPIO pins are not damaged or shorted.

FAQs

Q: Can I power the Raspberry Pi 4 Model B via GPIO pins?
A: Yes, you can power the board using the 5V and GND pins on the GPIO header, but this bypasses the onboard power management and is not recommended for beginners.

Q: What operating systems are compatible with the Raspberry Pi 4 Model B?
A: The Raspberry Pi 4 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions. It can also run lightweight versions of Windows 10 IoT Core.

Q: How do I enable SSH for remote access?
A: Create an empty file named ssh (no file extension) in the boot partition of the microSD card. Insert the card into the Raspberry Pi, and SSH will be enabled on boot.

By following this documentation, users can effectively utilize the Raspberry Pi 4 Model B for a variety of projects and applications.
