How to Use step down buck converter lm2596: Examples, Pinouts, and Specs

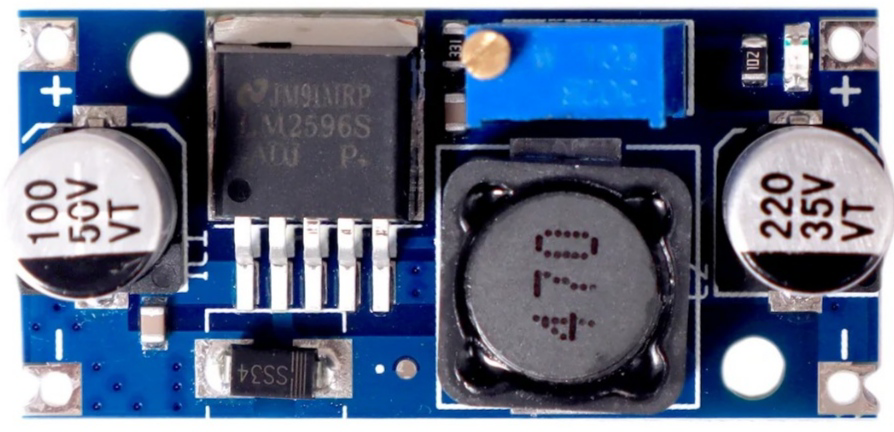

Image of step down buck converter lm2596
Cirkit Designer LogoDesign with step down buck converter lm2596 in Cirkit Designer

Introduction

The LM2596, manufactured by STMicroelectronics (Part ID: UNO), is a step-down (buck) voltage regulator designed for efficient voltage conversion. It takes a higher input voltage and steps it down to a lower, regulated output voltage. This component is widely used in power supply applications due to its high efficiency, ability to handle up to 3A of output current, and built-in protection features such as thermal shutdown and current limiting.

Explore Projects Built with step down buck converter lm2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing step down buck converter lm2596 in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing step down buck converter lm2596 in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing step down buck converter lm2596 in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing step down buck converter lm2596 in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with step down buck converter lm2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solar system router ups: A project utilizing step down buck converter lm2596 in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing step down buck converter lm2596 in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing step down buck converter lm2596 in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing step down buck converter lm2596 in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • DC-DC power supply modules
  • Battery-powered devices
  • Voltage regulation for microcontrollers and sensors
  • LED drivers
  • Industrial automation systems

Technical Specifications

Key Technical Details:

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.23V to 37V (adjustable)
Output Current Up to 3A
Efficiency Up to 90%
Switching Frequency 150 kHz
Thermal Shutdown Yes
Current Limiting Yes
Package Type TO-220, TO-263

Pin Configuration and Descriptions:

TO-220 Package Pinout:

Pin Number Pin Name Description
1 VIN Input voltage (4.5V to 40V)
2 VOUT Regulated output voltage (1.23V-37V)
3 GND Ground
4 Feedback (FB) Voltage feedback for regulation
5 ON/OFF Enable/disable control (optional)

TO-263 Package Pinout:

Pin Number Pin Name Description
1 VIN Input voltage (4.5V to 40V)
2 VOUT Regulated output voltage (1.23V-37V)
3 GND Ground
4 Feedback (FB) Voltage feedback for regulation
Tab GND Ground (connected to heatsink)

Usage Instructions

How to Use the LM2596 in a Circuit:

  1. Input Voltage: Connect the input voltage (VIN) to the VIN pin. Ensure the input voltage is within the range of 4.5V to 40V.
  2. Output Voltage: Connect the load to the VOUT pin. Use a multimeter to measure the output voltage.
  3. Voltage Adjustment: If using an adjustable version of the LM2596, connect a resistor divider to the Feedback (FB) pin to set the desired output voltage.
    • Use the formula:
      [ V_{OUT} = V_{REF} \times \left(1 + \frac{R_2}{R_1}\right) ]
      where ( V_{REF} = 1.23V ).
  4. Capacitors: Add input and output capacitors (e.g., 100µF electrolytic capacitors) to stabilize the circuit and reduce noise.
  5. Inductor: Use an appropriate inductor value (e.g., 33µH) based on the desired output voltage and current.
  6. Enable Pin: If the ON/OFF pin is available, connect it to GND to enable the regulator or to VIN to disable it.

Important Considerations:

  • Heat Dissipation: The LM2596 can generate heat during operation. Use a heatsink or ensure proper ventilation to prevent overheating.
  • Input Voltage: Ensure the input voltage is at least 3V higher than the desired output voltage for proper regulation.
  • Load Current: Do not exceed the maximum output current of 3A to avoid damage.
  • PCB Layout: Minimize the length of high-current traces and place input/output capacitors close to the pins for optimal performance.

Example: Using LM2596 with Arduino UNO

The LM2596 can be used to power an Arduino UNO by stepping down a 12V input to 5V.

Circuit Diagram:

  • Connect a 12V DC power source to the VIN pin.
  • Set the output voltage to 5V using the adjustable feedback pin.
  • Connect the VOUT pin to the Arduino UNO's 5V input pin.

Arduino Code Example:

// Example code to blink an LED connected to Arduino UNO
// Ensure the LM2596 is providing a stable 5V to the Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues:

  1. No Output Voltage:

    • Cause: Incorrect input voltage or loose connections.
    • Solution: Verify the input voltage is within the specified range and check all connections.
  2. Overheating:

    • Cause: Excessive load current or insufficient cooling.
    • Solution: Reduce the load current or add a heatsink to the LM2596.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input/output capacitors or unstable feedback loop.
    • Solution: Add or replace capacitors with appropriate values and ensure proper feedback resistor configuration.
  4. Low Efficiency:

    • Cause: Poor PCB layout or mismatched components.
    • Solution: Optimize the PCB layout and use recommended components (e.g., low-ESR capacitors).

FAQs:

Q1: Can the LM2596 be used for AC voltage input?
A1: No, the LM2596 is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using the LM2596.

Q2: What is the maximum output current of the LM2596?
A2: The LM2596 can handle up to 3A of output current.

Q3: How do I calculate the inductor value for my circuit?
A3: Refer to the LM2596 datasheet for detailed formulas and recommended inductor values based on your input/output voltage and current requirements.

Q4: Can I use the LM2596 to power a Raspberry Pi?
A4: Yes, but ensure the output voltage is set to 5V and the current requirement of the Raspberry Pi (typically 2.5A) is within the LM2596's limits.

By following this documentation, you can effectively integrate the LM2596 into your projects for efficient and reliable voltage regulation.
