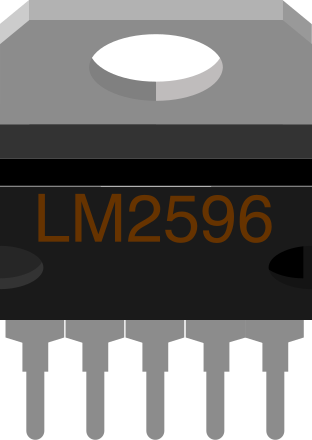

How to Use LM2596 (TO220): Examples, Pinouts, and Specs

The LM2596 is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower, stable output voltage. It is capable of delivering up to 3A of output current and operates with a wide input voltage range of 4.5V to 40V. The LM2596 is widely used in power supply applications due to its high efficiency (up to 90%) and ease of use. The TO220 package ensures good thermal performance, making it suitable for applications requiring reliable heat dissipation.

• DC-DC converters for battery-powered devices
• Adjustable power supplies
• Voltage regulation in embedded systems
• Industrial and automotive electronics
• LED drivers

The LM2596 in the TO220 package has 5 pins. Below is the pinout and description:

1. Input Voltage: Connect the input voltage (4.5V to 40V) to the VIN pin. Ensure the input voltage is at least 3V higher than the desired output voltage for proper regulation.
2. Output Voltage Adjustment: Use a resistor divider network connected to the Feedback pin to set the desired output voltage. The output voltage is calculated using the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is 1.23V (reference voltage), and ( R1 ) and ( R2 ) are the resistors in the divider.
3. Output Capacitor: Place a low ESR capacitor (e.g., 220µF) at the output to ensure stability and reduce ripple.
4. Input Capacitor: Add a capacitor (e.g., 100µF) at the input to filter noise and stabilize the input voltage.
5. Inductor Selection: Choose an inductor with a current rating higher than the maximum load current and an appropriate value to maintain continuous current mode.
6. Enable Pin: Connect the ON/OFF pin to logic high (or leave it floating) to enable the regulator. Pull it to ground to disable the regulator.

Below is a basic circuit diagram for using the LM2596 to step down 12V to 5V:

VIN (12V) ----[CIN]----+----[VIN (Pin 1)] LM2596
                       |                     |
                      [L]                   [COUT]
                       |                     |
                     GND                   VOUT (5V)

The LM2596 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Connect the output of the LM2596 to the Arduino's 5V pin and ground.

Here is an example Arduino code to test the LM2596 by powering an LED:

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the LM2596 is providing a stable 5V to the Arduino's 5V pin.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

• Heat Dissipation: The TO220 package provides good thermal performance, but a heatsink may be required for high current applications.
• Ripple and Noise: Use low ESR capacitors and proper PCB layout to minimize output ripple and noise.
• Inductor Selection: Ensure the inductor value is appropriate for the desired output voltage and current.

1. Output Voltage is Incorrect:

   • Check the resistor divider network connected to the Feedback pin.
   • Verify the input voltage is at least 3V higher than the desired output voltage.

2. Excessive Heat:

   • Ensure the load current does not exceed 3A.
   • Attach a heatsink to the LM2596 if necessary.

3. High Output Ripple:

   • Use low ESR capacitors at the input and output.
   • Verify the inductor value and ensure it is not saturating.

4. Regulator Not Working:

   • Check the ON/OFF pin. Ensure it is connected to logic high or left floating.
   • Verify all connections and ensure the input voltage is within the specified range.

Q1: Can the LM2596 be used for negative voltage regulation?
A1: No, the LM2596 is designed for positive voltage regulation only.

Q2: What is the maximum input voltage for the LM2596?
A2: The maximum input voltage is 40V. Exceeding this value may damage the component.

Q3: Can I use the LM2596 without a heatsink?
A3: Yes, but only for low current applications. For currents above 2A, a heatsink is recommended to prevent overheating.

Q4: How do I calculate the inductor value?
A4: The inductor value depends on the input voltage, output voltage, and switching frequency. Refer to the LM2596 datasheet for detailed calculations.

Q5: Is the LM2596 suitable for battery-powered applications?
A5: Yes, its high efficiency makes it ideal for battery-powered devices, as it minimizes power loss.
